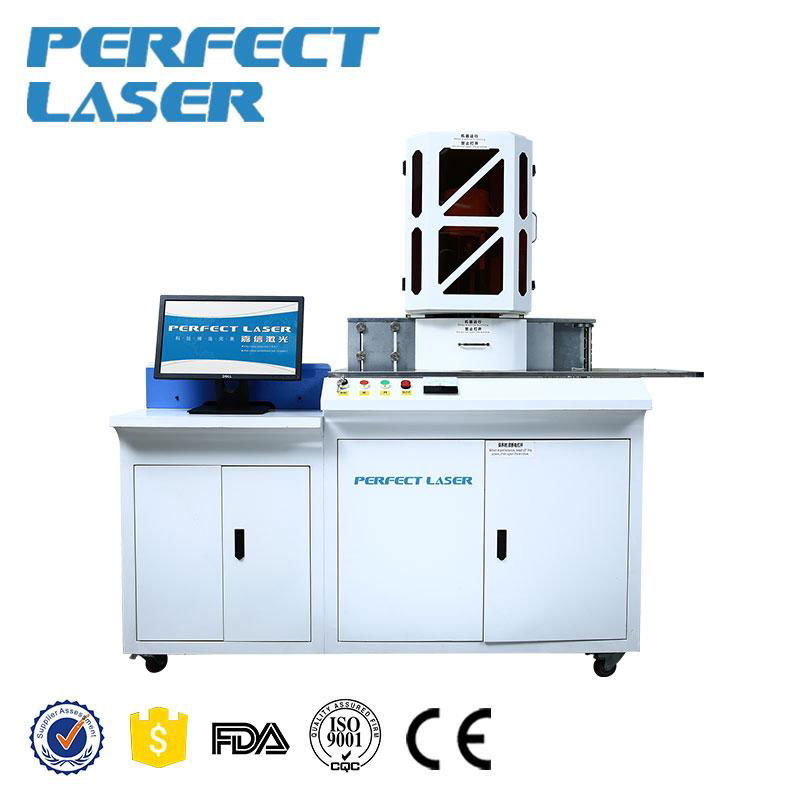

High Precision Auto Channel Letter Bender

                                           Model:PEL-600A



Introduction of Channel Letter Bender

The channel letter bender is a new advertising letter bending equipment, which can be used for logos, signs, neon signs, billboards, light boxes production, outdoor advertising, letter bending and other channel letter brakeadvertising production. Now our channel letter brake for sale and provide the best service for you!

Main task of the machine is forming profiles into any shape and increase their quality,
shortening production of channel letters at the same time. Computer control of the machine is based on our own, original and tested software „Bending Points Indicator", which is used with success by our clients for printing bending points on 3D-Profiles over last few years.



Feature of Channel Letter Bender

1.Automatic feeding , automatic notching, automatic bending

2.No need to fit the trimcap separately, simplify the fabrication process

3.High speed,using the actrating- motor to control machine , it only takes 48 seconds to finish one 30cm letter like “s”

4. Aluminum Channel Letter Bending Machines is available for material width ranges from 30mm to 128mm

5.Energy saving and environmental protection. Total power 700w,actual service power less than 700w.

6.Bending galvanized sheet metal also can read design file like the format such as DXF,AI,matching with the engraving file

7.Aluninum Channel Letter Bending Machines' size : 2350*850*1780mm

8.Processing materials: stainless steel/iron/aluminum alloy,stainless steel 304# less than or equal 0.8 mm iron ,aluminum :0.4mm -1.2mm.

9.Processing width: 30mm-128mm.

10.Special specification and requirements are available.



Application of Channel Letter Bender

Applicable industries: the letter bending machine is widely applied in advertising industry, such as the production of exposed characters, a variety of profiles around the edge of the word, boundless words, epoxy resin, unsaturated resin, all kinds of small words.

Applicable Materials’ data

Width:30-110mm

Thickness:0.5-1.2mm

Materials:Single-Folded-Edge Aluminum and Double-Folded-Edge Aluminum, all colors Aluminum edgings

or 7,9,11cm edgings with sponge



Technical  Data



Model	PEL-600A
Type	PC Control Type For All SS, MS, Al materials
Bending Material	Can bend all kinds of Stainless Steel, Carbon Steel, Galvanize Plate, Aluminum, etc..... Special for bending single-folded-edge and double-folded-edge AL And also for 7,9,11cm strip with sponge
Processed thickness	Aluminum: 0.4 - 1.2 mm Iron:0.8mm
Max. processed width	30-128mm
Voltage	220V
Size	1740*760*1450 mm
Weight	400KG
File format	PLT
Feed speed	5~20 m/ min
Precision	0.05 mm
Remark	Computer system and Computer Screen is not included in Price. User can use any computer to run our machine

	The Related Product: 1.Aluminum Profile Channel Letter Bender Machine 2.3-in-1 High Precision Channel Letter Making Machine More details please click:https://www.perfectlaser.net/
