Hexagonal Opening Gabion Mesh

Hexagonal Opening Gabion Mesh
Model:-
Brand:WANHAI
Origin:Made In China
Category:Metallurgy , Mining & Energy / Metallurgy & Mining / Wire Mesh
Label:wire mesh fences , welded mesh
Price: -
Min. Order:500 pc
Inquire Now

Product Description

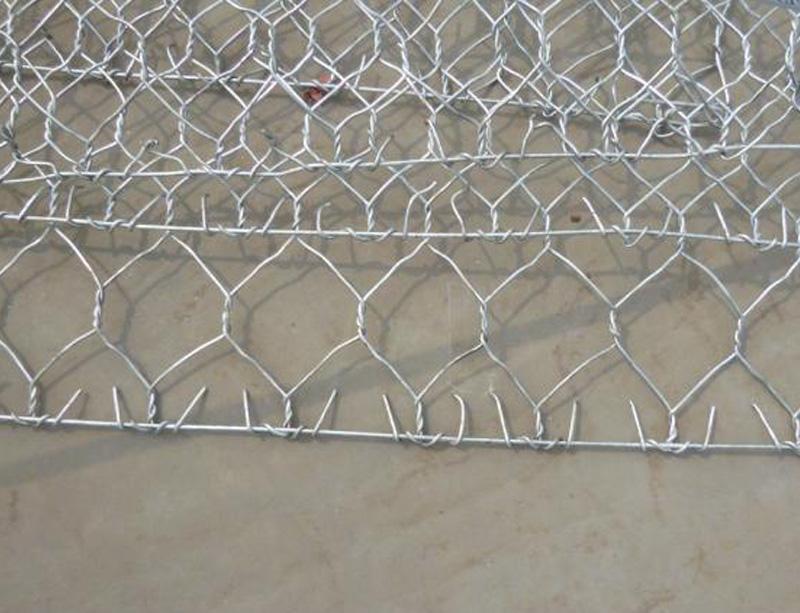

Hexagonal Opening Gabion Mesh

Hexagonal opening gabion mesh, also named triple twist hexagonal wire netting, double twist hexagonal wire mesh, woven by the hot dipped galvanized steel wire, galfan coating steel wire, PVC coated steel wire, after manual folding process, form gabion box at different dimention, used for river bank and scour protection, channel linings for erosion control, and embankment stability.

triple twist heavy hexagonal wire mesh is very well known in the rock fall protection,Coastal Protection,Roads and Pavements,Slope Revetment industry.

SCENE DISPLAY

triple twist hexagonal wire netting specification:

Opening
(mm)

Wire Diameter (mm)(Metal Wire)

Wire Diameter (PVC Coated)/ Inner/Outside(mm)

Strands

60X80

φ2.0-2.8

φ2.0/3.0-2.5/3.5

3

80X100

φ2.0-3.2

φ2.0/3.0-2.8/3.8

3

80X120

φ2.0-3.2

φ2.0/3.0-2.8/3.8

3

100X120

φ2.0-3.4

φ2.0/3.0-2.8/3.8

3

100X150

φ2.0-3.4

φ2.0/3.0-2.8/3.8

3

120X150

φ2.0-4.0

φ2.0/3.0-3.0/4.0

3

hexagonal honeycomb-shaped wire mesh Gabion product specifications

Gabion net Dimensions (m)

Grid Model



80X100mm

Long

Wide

High

Galvanized or coated

Galvanized or coated



Mesh wire diameter

Zinc Weight

Mesh wire diameter

Zinc Weight

2m

1m

1m

2.7mm

>245g/m

3.7mm

>245g/m

3m

1m

1m

Wire diameter side end

Zinc Weight

Diameter side end

Zinc Weight

4m

1m

1m

3.4mm

>265g/m

4.0mm

>265g/m

6m

2m

0.5m

Tie wire size 2.7mm

Tie wire size 3.7mm
