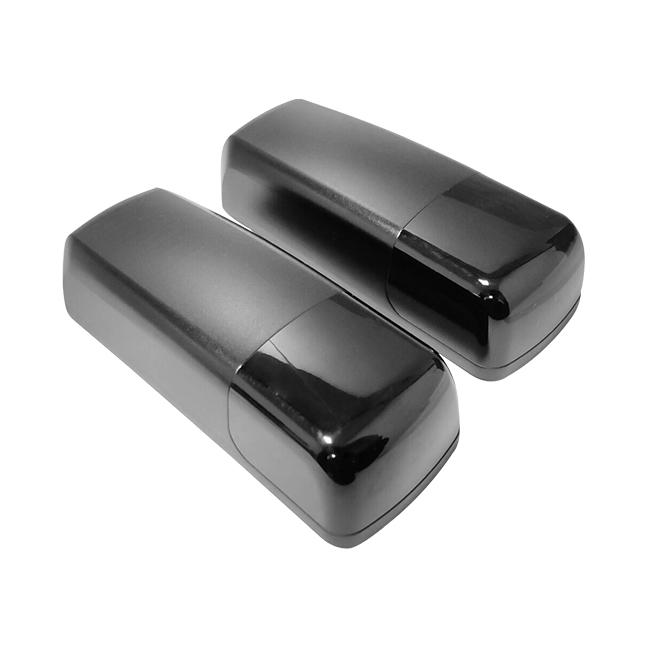

IP54 Wireless Photocell Infrared Sensor for Automatic Gate System

IP54 Wireless Photocell Infrared Sensor for Automatic Gate System
Model:EX-IR-6111
Brand:ExcelSoo
Origin:Made In China
Category:Security & Protection / Other Security & Protection
Label:Wireless Photocell I , Photocell Sensor , Security Systems
Price: US $30 / pc
Min. Order:1 pc
Inquire Now
点击这里给我发消息

Product Description

IP54 wireless Photocell Infrared Sensor For Automatic Gate System

Safety Instruction

1. For security, please read the user manual carefully before initial operation;
2. This photocell is without any fuse, so please make sure the power is off before installation;
3. This product is only used for the equipment which will not cause life or property hazards when a breakdown happens or its security risks have been already eliminated;
4. Please guarantee the products used in effective working range.

Technical Data
Working Voltage 12~24VAC/DC or 2*1.5V, LR6 AA battery
Working current 24VDC. Emitter: ≤8mA receiver: ≤40mA
Photocell wavelength 940nm
Angle of opposite emission ≤±5º
Receiver range ≥12m
Internal rotation system adjusted angle  0~180°
Working temperature -20º~+60 ºC
 Relay contact loading capacity 1A/30VDC
Waterproof grade IP54
Size 127*50*35mm
Weight 155g
IP54 Wireless Photocell Infrared Sensor for Automatic Gate System 1
