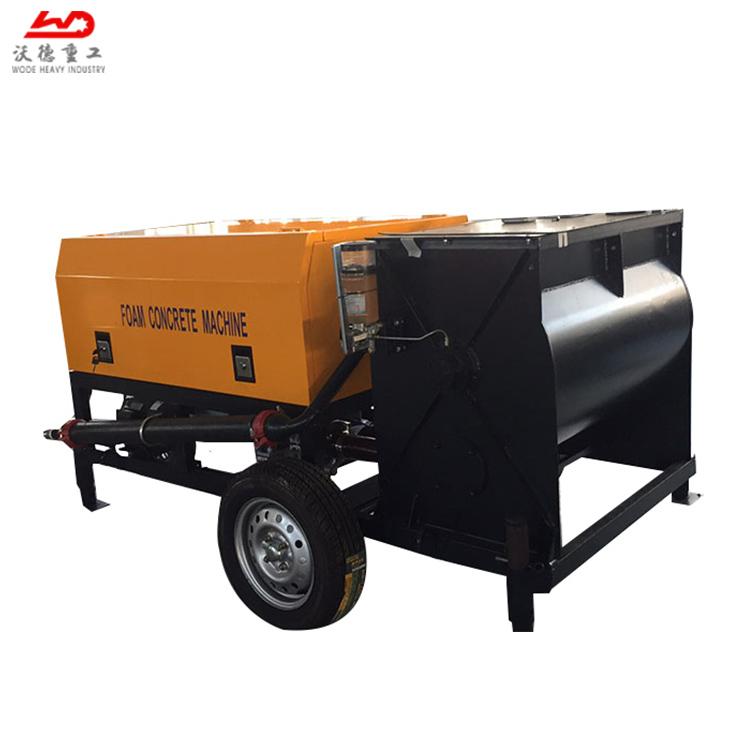

variable speed WF10B continuous foam concrete machine

variable speed WF10B continuous foam concrete machine
Model:WF10B
Brand:Wodetec
Origin:Made In China
Category:Industrial Supplies / Construction Machine
Label:foam concrete machin , foam machine , clc foam machine
Price: US $7500 / pc
Min. Order:1 pc

Product Description

variable speed WF10B continuous foam concrete machine

Brief Instruction:

GF10B foam concrete mixing machine is a kind of small one according our many years of working experience. It includes a feeder, a mixer, a set of foaming system and a pump, adopts digital control technology, can exactly adjust foam cement density; it also meets different density of foam concrete product manufacturing. This machine capacity is 10 cubic meter per hour, which is special design for village and county market. It can put directly on the truck for working. At present, our products have already big batch export to overseas market, achieving a historic breakthrough that China cement foam machine from import to export.

Working Principle:

Foam concrete specially made by foam concrete mixer is a kind of advanced lightweight and insulated material. And this material has a great number of closed pores. With the help of foaming system of foaming machine, foam agent can foam fully and mechanically. Then foam and cement paste are mixed evenly. Next, the mixture will be out from pumping system to cast in place construction or form mold. After natural conservation, foam concrete forms.



Benefits of foam concrete

1. Lightweight: Dry bulk density 300 kg/m^3 -1500kg/m^3 , 1/8-1/2 as light as common concrete.

2. High Compression Strength: compression strength ranging from 0.6 MPa to 25 MPa, 4 times as traditional aerated concrete.

3. Thermal Insulation: good heat preservation and good thermal insulation.

4. Impermeability: Low water-intake rate and high impermeability.

5. saving cost: Easy and fast production. No primary energy and reduced transportation costs



Model

GF10B

Max. theoretical concrete put(m³/h)

10

Motor power(kw)

13.2

Theoretical vertical conveying height(m)

40

Theoretical level transmission distance(m)

300

Mixer tank capacity(L)

350

Filling height(mm)

1000

Feeder size(mm)

2990*760*830

Overall dimension(mm)

2390*1490*1440

Total weight(kg)

1000

Features:

1.Frequency converter:Adopts digital control technology, can exactly adjust foam cement density.

2.Static mixer : Reduce the ratio of foam loss and guarantee the quality of the foam concrete.

3.Hose pump: Compared with screw pump and piston pump, the hose pump has almost no damage to the performance of foamed concrete.

4.Screw conveyor: Time-saving and labour-saving, very convenient to use.

5.Dust cover: Protect working people from dust, keep healthy.



Payment Terms:TT / LC / DP / DA
