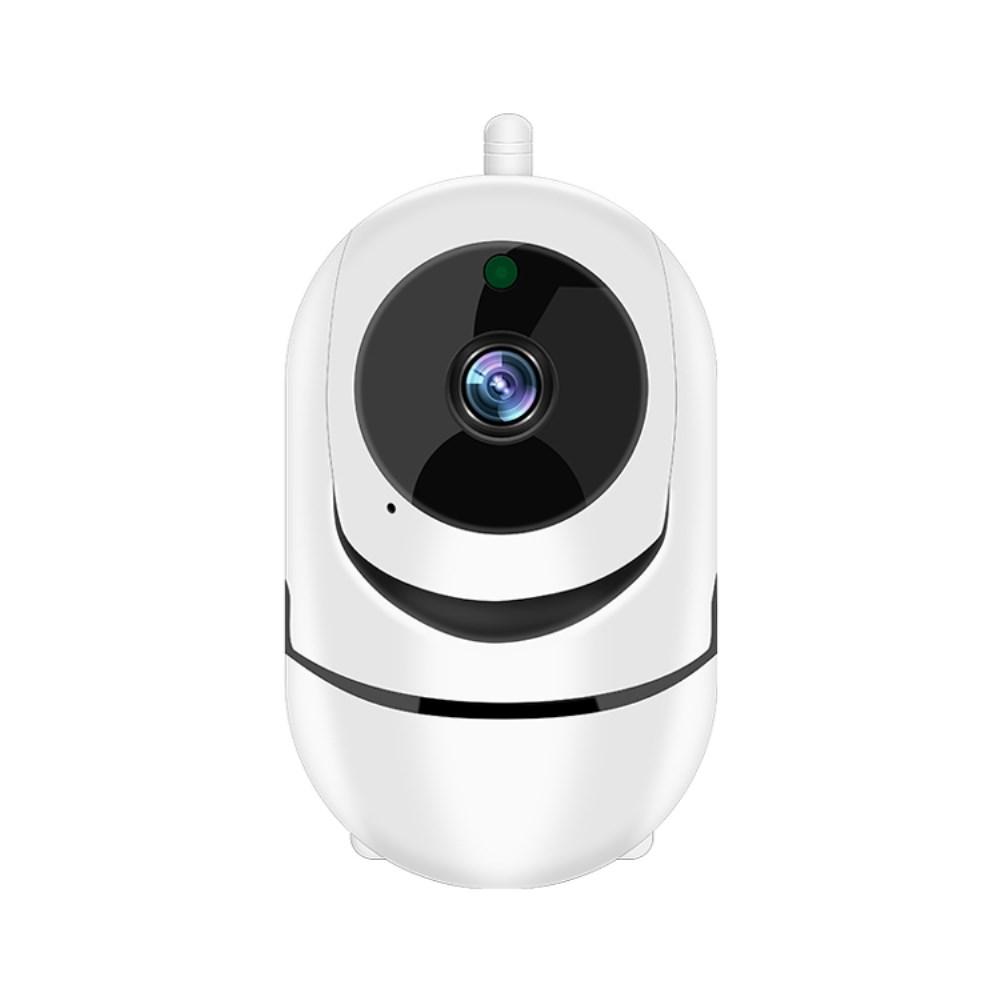

| Product model |
IK-WCP-A008 |
Image sensor |
1/4 HD CMOS 1 megapixel CMOS sensor |
| Processor |
T21L+SP140A |
Built in lens |
3.6mm |
| Working temperature |
0℃ -60℃ |
Manual video format |
MP4(1280*720P, storage in mobile) |
| Video frame rate |
Maximum 25 frames |
Video compression standard |
H.264(Storge in TF card ) |
| Alarm action |
Mobile client push screenshot |
Audio compression standard |
G.711(Storge in TF card ) |
| Video playback mode |
Mobile APP |
PTZ control |
Horizontal rotation 355 degrees vertical 80 degrees |
| Supply voltage |
DC 5V1.6A |
Audio input and output |
Input:built in microphone;output:built-in speaker |
| Net weight |
104g |
Local storage |
Support MicroSD inserted 128GB card, support 24 hours of video or video alarm |
| User settings |
Max share to 5 users |
Support multiple protocols |
TCP/UDP/IP/HTTP/SMTP/DHCP/DDNS/UPNP/NTP |
| WiFi protocol |
Support IEEE 802.11b/g/n |
Video control / Motion detection |
Support |
| Focusing method |
Manual |
Product size |
6.9*6.9*10.2cm |
| Applicaton |
Indoor |
Accessories |
Color box/Instructions/Screw package/Power supply/Wall fixed tray |
| Certificate |
CE &ROHS |
Warranty |
2 years |
| Firmware upgrade |
Remote upgrade can be through the network |
Infrared night vision effect |
6pcs ir lights,night vision 10 meters,power consumption 1W;Control the ir light and IR-CUT switch through photoresistance |
