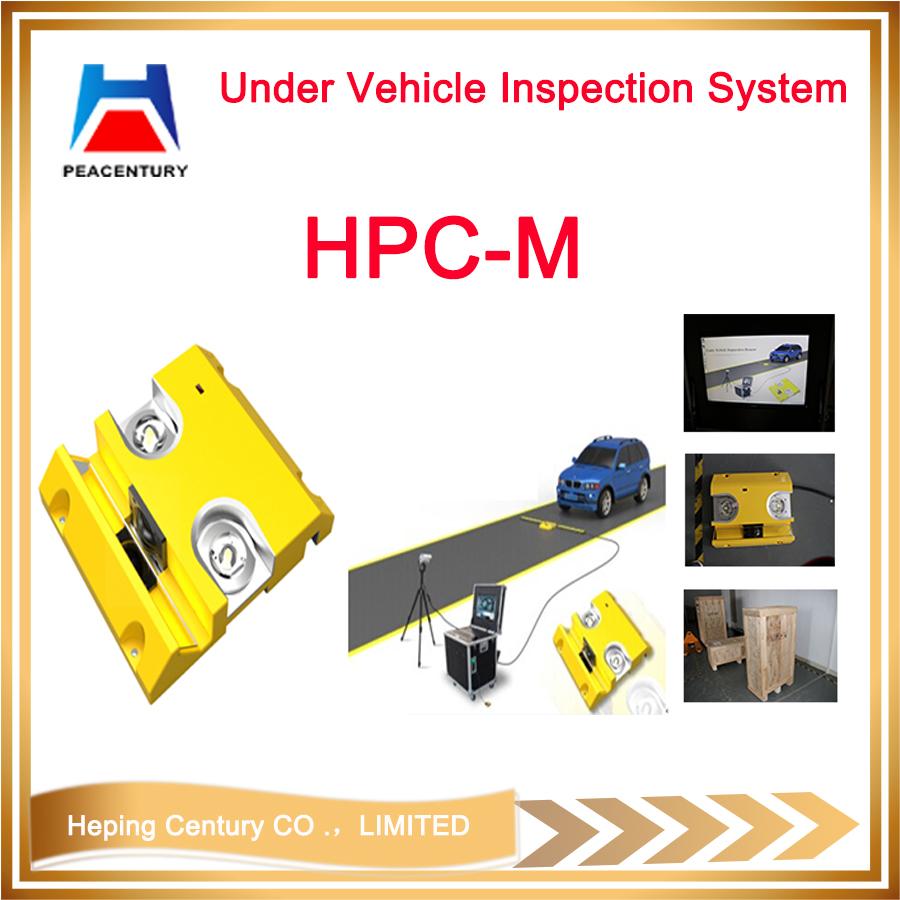

Under vehicle surveillance system with ANPR camera in border, checkpoints

Under vehicle surveillance system with ANPR camera in border, checkpoints
Model:HPC-M
Brand:PEACENTURY
Origin:Made In China
Category:Security & Protection / Other Security & Protection
Label:Walk Through Metal D , Under Vehicle Inspec , uvss
Price: US $1 / pc
Min. Order:1 pc

Product Description

NAME: Under Vehicle Surveilance System USEING: Checking Under Vehicle
SCAN RESOLUTION: 2048 Line CCD CHASSIS STORAGE OR LOADING TIME: < 1 Second
DISPLAY OF SCENE IMAGE: ≥1 Road RESOLUTION OF THE BOTTOM IMAGE: >12000 * 6144
THE MAXIMUM OF SCAN RATE: 18kHz FIELD OF VIEW: 170 Degrees
AUXILIARY LIGHTING: 160W SCANNING DEVICE VOLUME: 450 X 400 X 88mm
MONITOR: 22 Bits Real Colors



Under vehicle surveillance system with ANPR camera in border, checkpoints



Main Features



Auto digital line scan, high-resolution undercarriage imaging

High automation, easy to be used

Applicable to variety of vehicles, wide vision.

Test will be completed during the vehicle maneuvers without stopping, adapted to different speed.

Undercarriage image can be stored, retrieved, searched or compared with other images.

Variety of image processing methods: enlarge, stretching and cutting.

(Optional)ALPR-Automatic License Plate Recognition and RFID technology. associative storage of various vehicle information and undercarriage images.



HPC-M



Parameters

Store or load time < 1 second
Vehicle Image local magnification > 2 times
Vehicle Image scaling times 16



Main performance parameters

System interface language (can be customized) English
Scene image display 1 channel
Vehicle speed 1-60km/h, s est speed less than 30km/h



Hydraulic system

View angle degrees 175
Image Longitudinal resolution pixels CCD 2048
Power Supply Hz AC110V-240V/50-60





Computer systerm:

Display 22 inch color LCD Screen
CPU INTEL core Quad-Core Processor
Motherboard dedicated motherboard
Memory DDR3 , more than 4GB
Hard disk 500G high-speed hard disk
Graphics card DDR3, 192BIT independent graphics
Appearance stainless steel composite material
Working current 3A
Working temperature -20 ℃ ~ 55 C
Payment Terms:L/C, D/A, D/P, T/T, Western Union, MoneyGram, Cash
Embed HTML Code:https://www.youtube.com/channel/UCs5zT6wVi4_YQw0UMoJZeOA?view_as=subscriber
Under vehicle surveillance system with ANPR camera in border, checkpoints 1Under vehicle surveillance system with ANPR camera in border, checkpoints 2Under vehicle surveillance system with ANPR camera in border, checkpoints 3Under vehicle surveillance system with ANPR camera in border, checkpoints 4Under vehicle surveillance system with ANPR camera in border, checkpoints 5
