CNC Steel Pipe Connection Boards Flanges Welding Machine

Model:	-
Brand:	FAST
Origin:	Made In China
Category:	Industrial Supplies / Machinery / Machine Tool
Label:	-
Price:	-
Min. Order:	1 pc

Inquire Now

Product Description

CNC Steel Pipe/Connection Boards/Flanges Welding Machine,Steel Pipe Welding Machine,Connection Boards Welding Machine,Flanges Welding Machine

APPLICABLE INDUSTRY:

The machine is used for positioning, assembling & welding between steel pipes and flanges, and between branch pipes and branch flanges.

COMPOSITION:

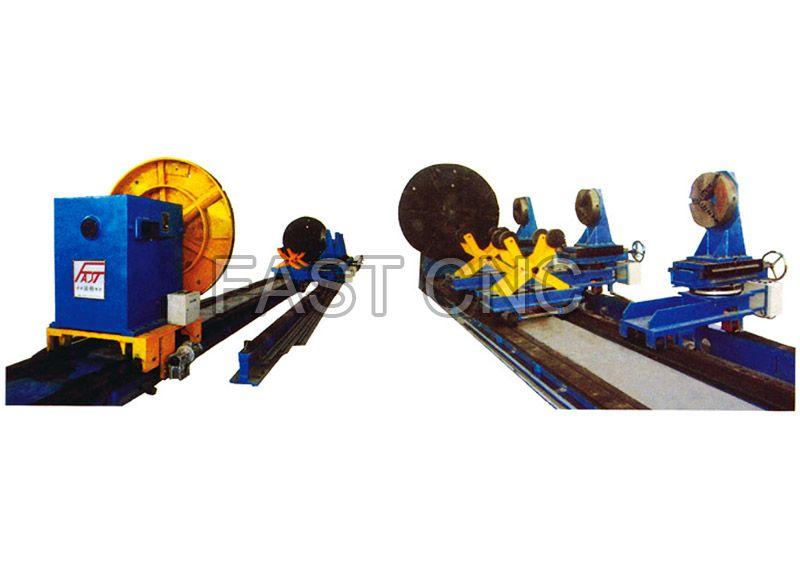

The machine is composed of main and idle chuck, branch pipe assembly unit and support unit.

ADVANTAGES:

● The movement of main and vice-working table, rotation of main and vice-chuck all adopt motor driving , with CNC technology.

● Assembly units are driven by motors, with CNC display.

● The positioning of branch pipe adopts motor driving, with CNC display

● Easy operation, accurate positioning, high working-efficiency, small working area, short loading time.

★ All of these models can be customized according to customer requirements.

Model	ZH1013	ZH1313	ZH1613
Size of Main Working Table (mm)	6500×800×250		16500×1025×320
Flange Diameter of Main & Idle Clamping Chuck (mm)	Φ250~Φ1000	Φ250~Φ1300	Φ250~Φ1600
Center Height of Chuck (mm)	800		1200
Size of vice-Working Table (mm)	14000×200×250		14000×200×320
Length of Steel pipe (m)	13		13
Size of Fixed Flange on The Vice-working Table (mm)	Φ150～Φ500		Φ150～Φ500
Rotary Angle on Vice-working Table(°)	800		1200
Movement Speed of Main & Vice-working Table (m/min)	±90°		±90°
Total Power of Motor (kW)	4		4

★ All of these models can be customized according to customer requirements.
