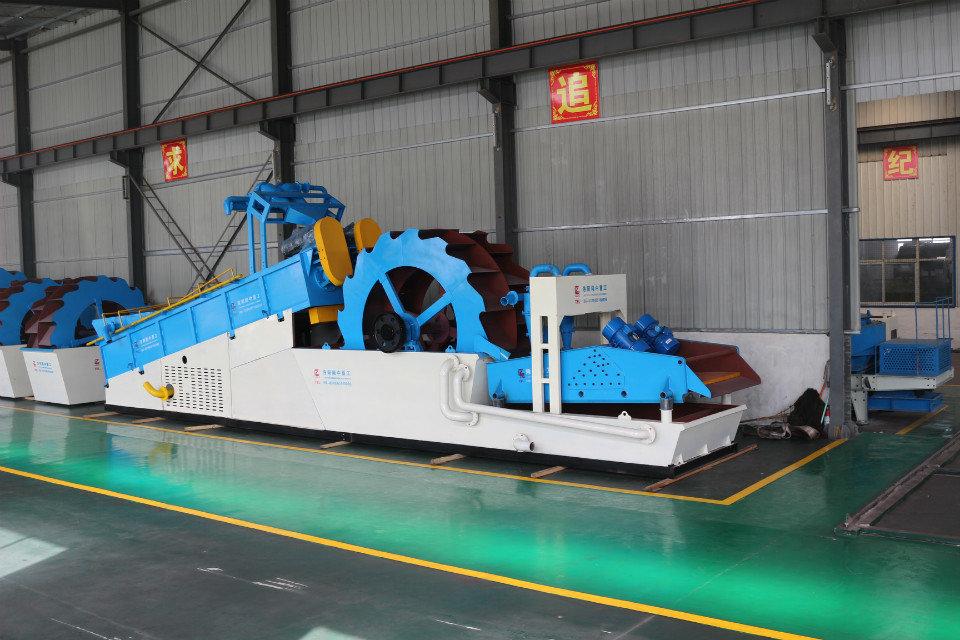

Modular wash plant as a representative equipment that combines multiple washing, coarse and fine materials concentrated dewatering, fine sand recycling and other functions in one equipment. It is applicable to sand and gravel plants, construction sites, hydropower dams, glass manufacturing, oil well development and other industries. Compared with the washing and recycling machine, it has been greatly improved in performance.

How modular wash plant work?

The qualified materials after classified by screening equipment flows into the screw sand washer through chute or pipeline. Sand and gravel are fully separated from impurities and mud through the fully cleaned, soaked and broken by screw mixer. Fine sand and muddy water are deposited in the tail of sand screw, and the fine sand is recovered through cyclone separator. Then the coarse and fine sand enters wheel sand washer machine at the same time for secondary cleaning to achieve complete separation of sediment. The coarse sand is lifted onto the high frequency dewatering sieve by impeller of wheel sand washer, the overflow muddy water flows into the dewatering screen water tank and concentrated by cyclone separator, and is dehydrated by the vibration of screen to finally realize the cleaning, recovery, dehydration and dry heap discharge of gravel.
