Clean Room Constructing Material: EPS Steel Sandwich Panel


Sandwich Panel, in China, it is more widely named as Coated Light Steel Panel, is a new kind of contructing material for buildings. Because of its' specifications, it is suitable for use as building walls and suspended ceiling material, and is widely used for cleanroom industries.

A Sandwich Panel comprises a core of thermoinsulating material, skinned on both sides with sheet metal.

Classify by surface metal sheets, sandwich panels can be classified as Coated Steel Sheets Sandwich Panels, Stainless Steel Sheets Sandwich Panels, Aluminium Sheets Sandwich Panels, etc.

And the most widely used core materials are EPS (Expanded Polystrene), PU (Polyurethane), Rockwool, MgO (Magnesium Oxide)  mixing glass fiber concrete grid.

Because of its good cost, light and thermal insulating performance, the EPS Coated Steel Sandwich Panels are widely used in the medical and industrial cleanroom industry, especially for temporary building rooms (no more than 10 years service life).

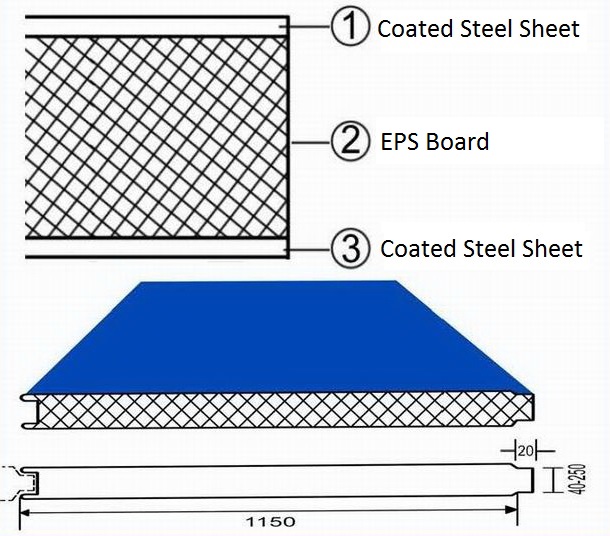

A standard machine made EPS Steel Sheets Sandwich Panel's structure is as follow figure shows:

Layer 1, Coated Steel Sheet;
Layer 2, EPS Board;
Layer 3, Coated Steel Sheet;

Features & Specifications:

1, Sandwich Panel Width: 1150mm (Standard);
2, Sandwich Panel Length: customize according user's requirements;
3, Sandwich Panel Thickness: 50mm / 75mm / 100mm / 125mm / 150mm optional; 50mm is most widely used model;
4, Coated Steel Sheets Thciness: 0.325mm / 0.375mm / 0.425mm / 0.475mm / 0.525mm optional;
5, Color: 24 colors optional;

Because 50mm thickness sandwich panels are widely used for cleanroom walls and ceilings, there are many standard models of Aluminum Alloy Profiles for them.
It is easy to install these sandwich panel walls and ceiling with standard cleanroom aluminum profiles. And the finishing room has beautiful apperance.
