V-Groove Fiber Splicing Machine X97

Model:	X97
Brand:	SHINHO
Origin:	Made In China
Category:	Electronics & Electricity / Telecommunication & Broadcasting / Network Communications Equipment
Label:	fusion splicer , fiber fusion splicer , optical fiber
Price:	US $1100 / pc
Min. Order:	1 pc

Inquire Now

Product Description

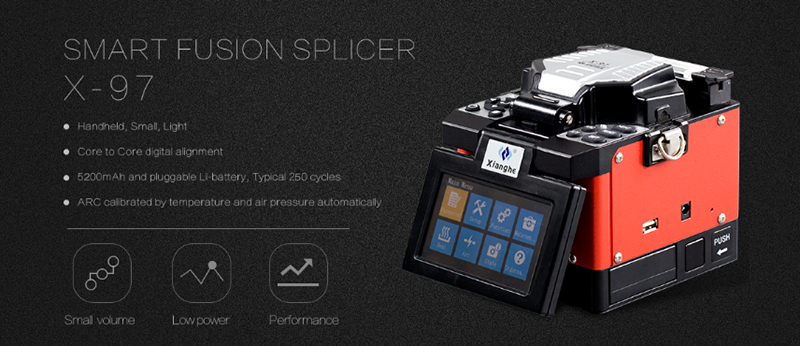

Handhled FTTx Fiber Fusion Splicer X-97

X-97 Fiber fusion splicer is a 4-motor fusion splicer with fiber core alignment technology, GUI menu design, upgraded CPU. It has very stable performance and low fusion loss (average loss lower than 0.03dB), it is a very economical fusion splicer and suitable for FTTx/ FTTH/ Security/ Monitoring etc. projects.

FTTH fiber fusion splicer

Features

1s boot up, 7s splicing, 26s heating
Stable performance, average fusion loss 0.03dB
Automatic ARC calibration, easy for maintaining
Inductive automatic heater, industrial quad-core CPU
Big capacity battery, more than 250 cycles splice & heat

Specifications

Applicable fiber	SM(ITU-T G.652),MM(ITU-T G.651),DS(ITU-T G.653),NZDS(ITU-T G.655)
Diameter of cladding	80 -150μm
Diameter of coating	160-900μm
Typical splice loss	SM: 0.02dB, MM: 0.01dB, DS: 0.04dB, NZDS: 0.04dB
Return loss	＞ 60dB
Fibe cleaved length	5-16mm ( coating diameter ＜ 250um), 16mm (coating diameter:250-1000um)
Splicing program	40 groups
Operate mode	Automatic/Manual
Auto-heating	Available
Typical splicing time	7 seconds
Typical heating time	26 seconds
Fiber magnification	250X (X or Y view), 125X (X and Y view)
Display screen	4.3 inch color LCD monitor
Records storage	4000 results
Loss evaluation	Available
Tension test	1.8-2.2N
Interface	GUI menu interface, easy for operation
Battery	5200mAh Li-battery, typical 250 cycles splicing and heating
Power supply	Adapter, input: AC 100-240V(50/50HZ), output: 11-13.5V
Electrodes life	More than 4000 ARC discharges, can be replaced vonveniently
Ternimal	USB2.0 port, for software upgrading and records exporting
Operating conditions	Altituede: 0-5000m, Humidity: 0-95%, Temperature: -10℃~+50℃, Wind speed: Max 15m/s
Dimension	149mm(L) * 120mm(W) * 127mm(H)
Weight	1.90kg (including battery)

Standard Accessories

NO.	ITEM
1	Carrying box
2	Fiber cleaver
3	Fiber stripper
4	Drop cable stripper
5	Power cord
6	Adapter
7	Cooling tray
8	User manual (USB)
9	Spare electrodes
10	Cleaning tool kit
11	Strap
