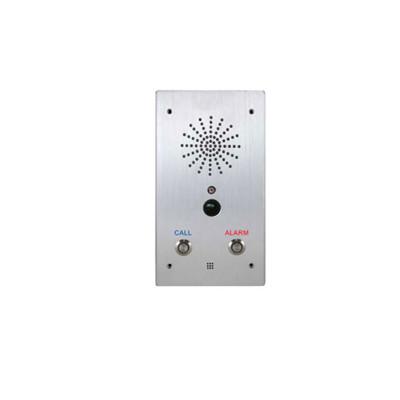

IPA-220C, IP HD Video Intercom Terminal Suport SIP & ONVIF.

Feature:

1.  With two-button design, one is for alarm and the other is for calling to realize full-duplex intercom.

2. Comply with standard ONVIF interface protocol, available for directly connecting to the mainstream NVR and other storage devices to realize audio and video recording synchronously for traceability.

3. With audio output interface which can be connected to active speaker or headphones.

4. With 1 alarm in for connecting external alarm button/detector and 1 alarm out for controlling strobe light or door lock.

5. Could connected active speaker.

6. With a 6mm-thick aluminum panel; provided with a special screw and the equipments against puncture to avoid any man-made damages.

7. With built-in HD ultra-wide-angle camera (720P, horizontal viewing angle≥135°, resolution: 1280 x 720 pixels) ；With the function of wide dynamic range which suppresses strong light and compensates low light for backlighting environment.

8. With a built-in 3W speaker and microphone, available for hands-free call and receiving broadcast.

9. With tamper alarm and sound alarm function.

10. Compatible with standard SIP protocol, independently accessible to VOIP phone system. (Asterisk, Elastix, Freeswitch, MiniSipServer, Yeastar MyPBX etc. mainstream IP-PBX).

    Diagram Drawing:







    Model	IPA-220C
    Power Supply	DC 24V
    Power Consumption	≤8W
    Network Protocol	TCP、UDP、ARP、ICMP、IGMP、SIP、HTTP、FTP、ONVIF
    Network Chip Rate	10/100Mbps
    Audio Sampling & Bit Rate	8kHz～44.1kHz，16bit，8kbps-320kbps
    Video Transmit Rate	96Kbps-512Kbps, H.264
    Camera	CMOS, 1Mega pixels(720P, 1280x720)
    Interface	1 RJ45，1 Alarm in，1 Alarm out, 1 Line / Rec out, 1 Line in, 1 Cascade port(for connecting alarm control box)
    Dimension & Weight	191 x101 x51,0.95 kg
