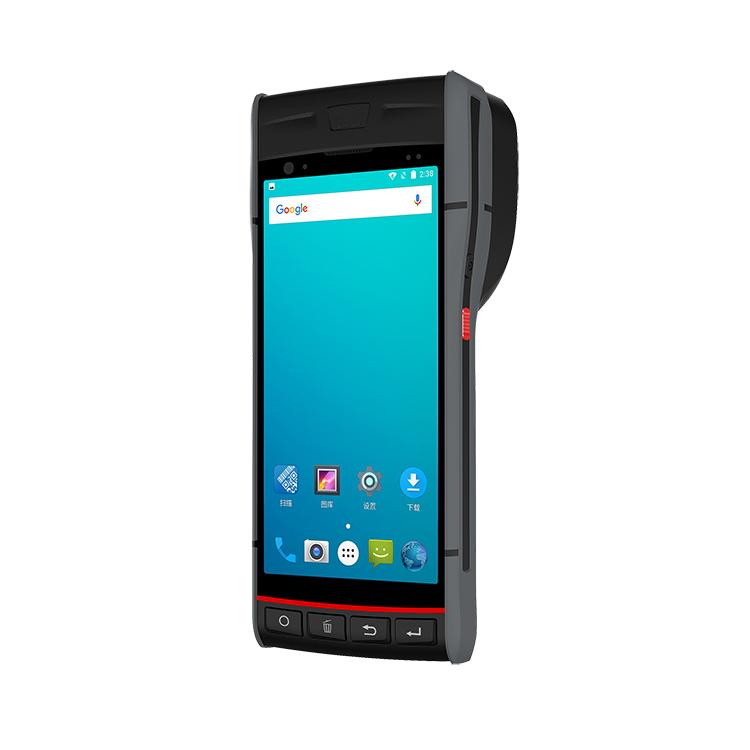

Android r ed Handheld Terminal PDA with Self-adhesive Printer

 Android r   ed Handheld Terminal PDA with Self-adhesive Printer
Model:RL-H60
Brand:Reliablerfid
Origin:Made In China
Category:Industrial Supplies / Other Industrial Supplies
Label:handheld PDA , Android PDA , PDA with printer
Price: US $350 / pc
Min. Order:1 pc

Product Description

RL-H60 is an Android r ed Handheld Terminal PDA with Self-adhesive Printer. high-performance, high-reliability industrial-grade handheld barcode data terminal based on the Android 8.1 operating system. It has strong and stable performance, light and durable appearance, and supports 1D/2D barcode scanning,GPS. Positioning, photo taking, Wi-Fi, Bluetooth, 2G/3G/4G and other functions.



Model Number

RL-RH60

PerformanceQuad-core



CPU

Cortex-A53  64bit Quad-core 2.0GHz

RAM+ROM

2GB+16GB  (Supports up to 3GB+32GB)

Expansion

Supports up to 128 GB Micro SD card

Operating System

Android 8.1

PerformanceOCTA core





CPU

Cortex-A53  64bit Quad-core 2.0GHz

RAM+ROM

2GB+16GB  (Supports up to 3GB+32GB/4GB+64GB)

Expansion

Supports up to 128 GB Micro SD card

Operating System

Android 9.0

Data Communication

WLAN

Dual-band 2.4GHz /5GHz, Supporting IEEE 802 a/b/g/n/ac protocol

WWAN

2GGSM850/900/1800/1900MHz

3GWCDMA850/900/1900/2100MHz

4GFDD:B1/B3/B4/B7/B8/B12/B20,TDD:B38/B39/B40/B41

Bluetooth

Support Bluetooth 2.0+EDR/3.0+HS/4.1+HS, transmission distance is 5-10m

GNSS

Support GPS,Galileo,Glonass,Beidou

Physical Characteristics

Dimensions                    177mm×72mm×23.7-48.8mm

Weight                         <500g ((Depends on device function configuration)

Display                         5.5 inch IPS color display with resolution720*1440

TP                              Corning Gorilla glass, Supports multi-touch, Supported gloves and wet hands

Power                           Rechargeable polymer battery (3.8V 4200mAh) removable

                                 Standby: over 350 hours



                                 Continuous use: over 12 hours (depending on user environment)

                                 Charging time: 3-4 hours (with standard adaptor and USB cable)





                                 Fast charging:1.5HOptional

Expansion Slot                PSAM x 2, Micro SIM card x 1 , TF card × 1

Interfaces                     Type-C USB x 1, OTG

USB 2.0 Type-C, OTG



USB 2.0 Type-C, OTG



Audio                          Speaker (mono), Microphone, Earpiece



Keypad                        Silicone button: Power button, Volume +/- button, Scan button × 2

Sensor                         Gravity sensor, Light sensor, Proximity sensor, Vibration motor

User Environment



Operating Temp.

-4°F to 122°F / -20°C to 50°C

Storage Temp.

-40°F to 158°F / -40°C to 70°C

Humidity

5%RH - 95%RH non condensing

Drop Specification

6 sides Supports 1.2 meters drops and 30 times to the concrete in the operating temperature





Rolling test

500×0.5m rolling for 6 sides

Protection Level

IP-66

Data Collection

Rear Camera



13MP HD camera, Support auto focus, Flash, Anti-shake, Macro shooting



Front Camera

2MP color camera

Barcode Scanning (Optional)

2D Linear scanner

Honeywell N3601/6603



2D Symbologies

PDF417,Micro PDF417,GS1 Composite, Aztec Code, Data Matrix, QR Code, Micro QR Code, Maxicode, Hanxin Code,etc.

Maxicode,Hanxin Code,etc.

Thermal Label Printer



Printing Speed

70mm/s

Print Points

384 dots

Paper Width

58mm

Paper Diameter

35mm

Paper Type

Support for sticker/label black mark Printing





NFC (Optional)



Frequency

13.56MHz



Protocol

Support ISO14443A/B, ISO15693



Range

2-5cm



Language/input method



Input

English, Pinyin, Five strokes, Handwriting input, Support soft keypad



Language

Language packs in Simplified Chinese, Traditional Chinese, English, Korean, Japanese, Malaysian,etc.



Accessories



Standard                       Adapter, Data cable, Protective film, Instruction manual



Optional                        Cradle, etc.



 Android r   ed Handheld Terminal PDA with Self-adhesive Printer 1 Android r   ed Handheld Terminal PDA with Self-adhesive Printer 2 Android r   ed Handheld Terminal PDA with Self-adhesive Printer 3 Android r   ed Handheld Terminal PDA with Self-adhesive Printer 4 Android r   ed Handheld Terminal PDA with Self-adhesive Printer 5
