China Universal Desktop PCB Chip Soldering Machine for Electrical Products Line
Automatic soldering machine is suitable for the industry micro-speakers/motors, SMT post-welding of various PCBs, automatic soldering of various parts of mobile phones, and so on. Used to solder various electronic components, such as capacitors, LEDs, arrays, wires, switches, chargers, electronic-acoustic products, transformers, PCBs and other components. Often used in consumer electronics, automotive electronics, medical electronics, LED lighting and other fields.

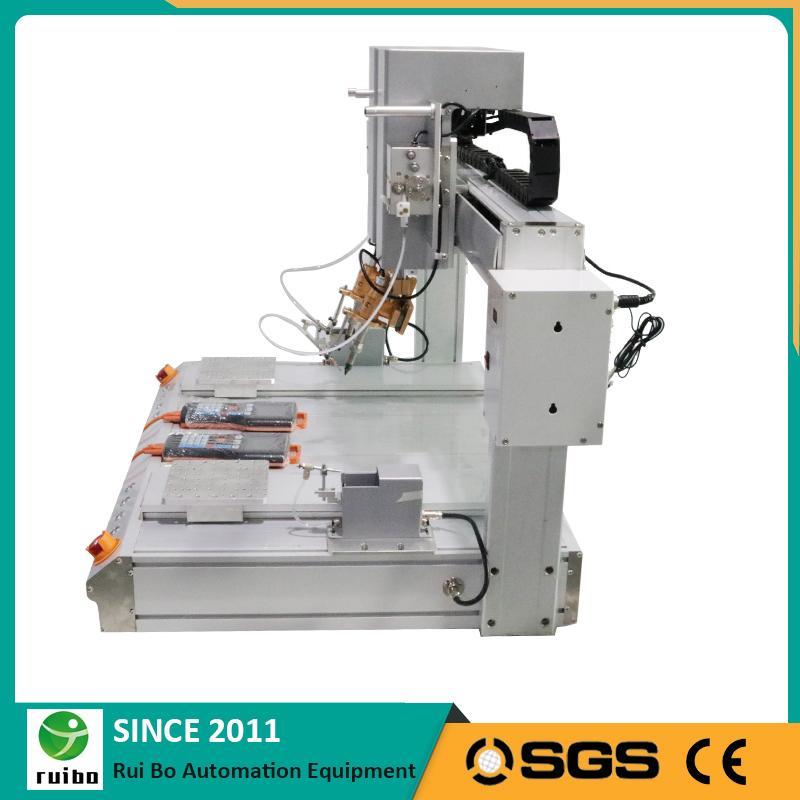

Product Description of Automatic welding robot
1.Automatic welding robot is designed to adapt to the development of high-speed, efficient and intelligent automatic welding. It uses a set of high-precision solder control system to support 2X/2Y/Z Five-axis movement and high-speed USB storage.In addition, the system provides users with more convenient editing instructions, more storage space, faster speed and more technical parameter setting, which greatly improves the production efficiency and quality.
Specifications of Soldering Robot
| Voltage |
AC 220V 50HZ |
| Heating Power |
150~300W |
| Work Platform Size |
310*200*60 |
| Weight |
About 45KG |
| Controller |
PLC of OMRON |
| Maximum Load Weight |
8KG(For Work Platform) |
| Axis of Motor |
Four |
| Movement Speed(X,Y,Z) |
0.1-800mm/Sec |
| Repeat Positioning Accuracy |
±0.002mm (X * Y * Z) |
| Resolution |
0.01mm (X * Y * Z) |
| Demo File Capacity |
Up to 99 files, up to 9999 points per file(can expand capacity infinitely) |
| External connector |
RS232 |
| Preheating Temperature Range |
0ºC~ 550ºC |
| Operate Temperature |
0ºC~40ºC |
| Operate Humidity |
20~90% |
| Solder Wire Diameter |
0.5, 0.6, 0.8, 1.0, 1.2 (mm) |
| Working Stroke(X*Y*Z*R) |
≤300mm*300mm*100mm*300° |
| Tin feeding control |
Stepper motor |
| Tip temperature |
450° |
| External Dimensions(L*W*H) |
525*485*725(mm) |
Features of Automatic Welding Soldering machine
1.High efficiency.Two soldering iron two station work at the same time.
2. Soldering robot with position correction,copying,array and other.And the machine operation is simple and quickly.
3.Automatic tip cleaning function by airflow cleaning, the residual dross on the tip can be blown
4.The operation program of soldering machine can be revised autonomously, with step insertion, deletion function, and administrator authority.
5.Welding temperature, tin amount and time are adjustable
6.The operating interface enables dynamic coordinates.
7.Multi-parameter setting of the welding process to fully guarantee the welding quality.
8.Automatic Soldering Machine with spot soldering,drag soldering,automatic cleaning,pass or other function.
Advantage of Automatic Soldering machine kit
1) Simple operation. Desktop automatic soldering machine.Fully automated operation except pick and place products.
2) Flexible.Feel free to move on the assembly line.Do not need to be equipped with an external computer, can do single operation, easy installation.
3) Versatility.The welding equipment is equipped with a universal fixture, and it takes only 2 minutes to change the product.
4) High efficiency .The efficiency is more than 1.5 times that of manual.
5) safety.Auto-sensing start function.
6) Big Program Record Groups Quantity:100(Groups).One product only needs one programming, the next production, direct call.
7) Low cost, High return.The machine adopts double-head double-station, which can replace 2 people. The purchase of one machine can save 2-3 people.
