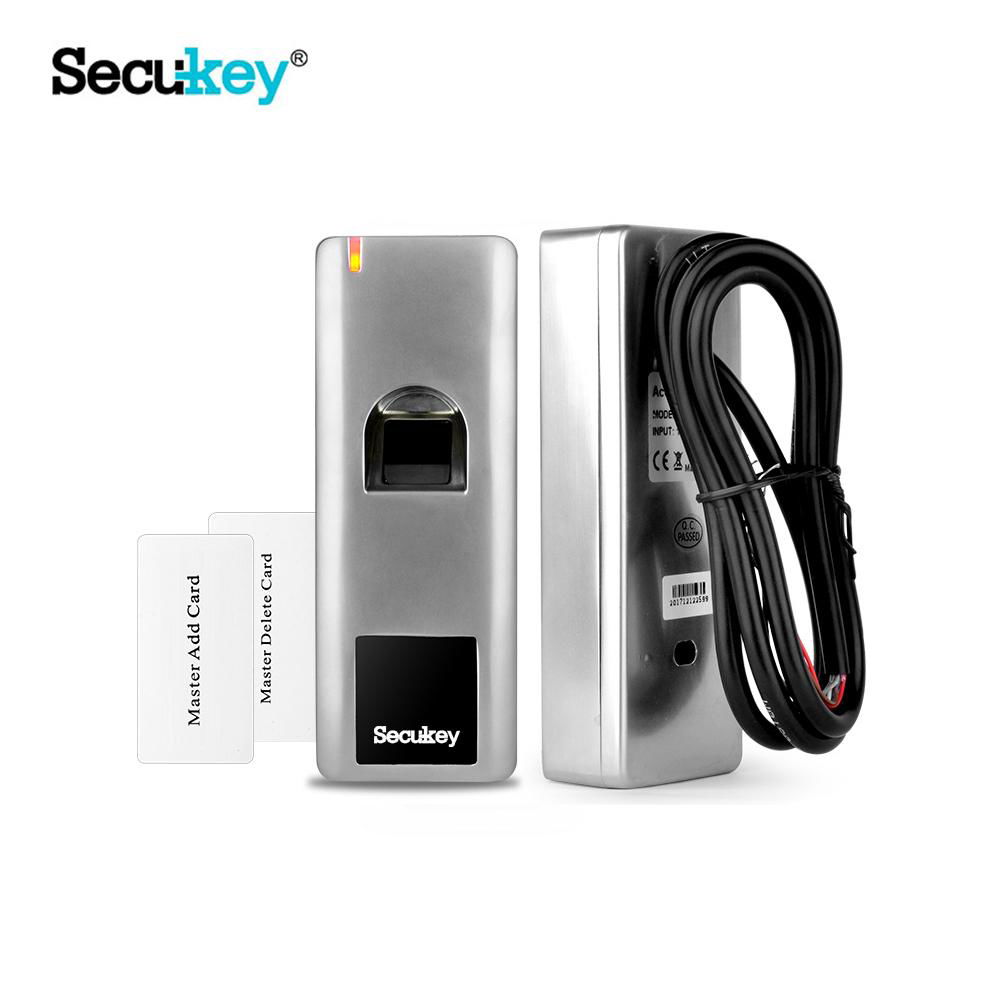

Secukey Waterproof Fingerprint & RFID Reader
| Model: | SF1 |
|---|---|
| Brand: | Secukey / OEM |
| Origin: | - |
| Category: | Security & Protection / Access Control System |
| Label: | access control , fingerprint reader , biometric reader |
| Price: |
US $40
/ pc
|
| Min. Order: | 2 pc |
Product Description

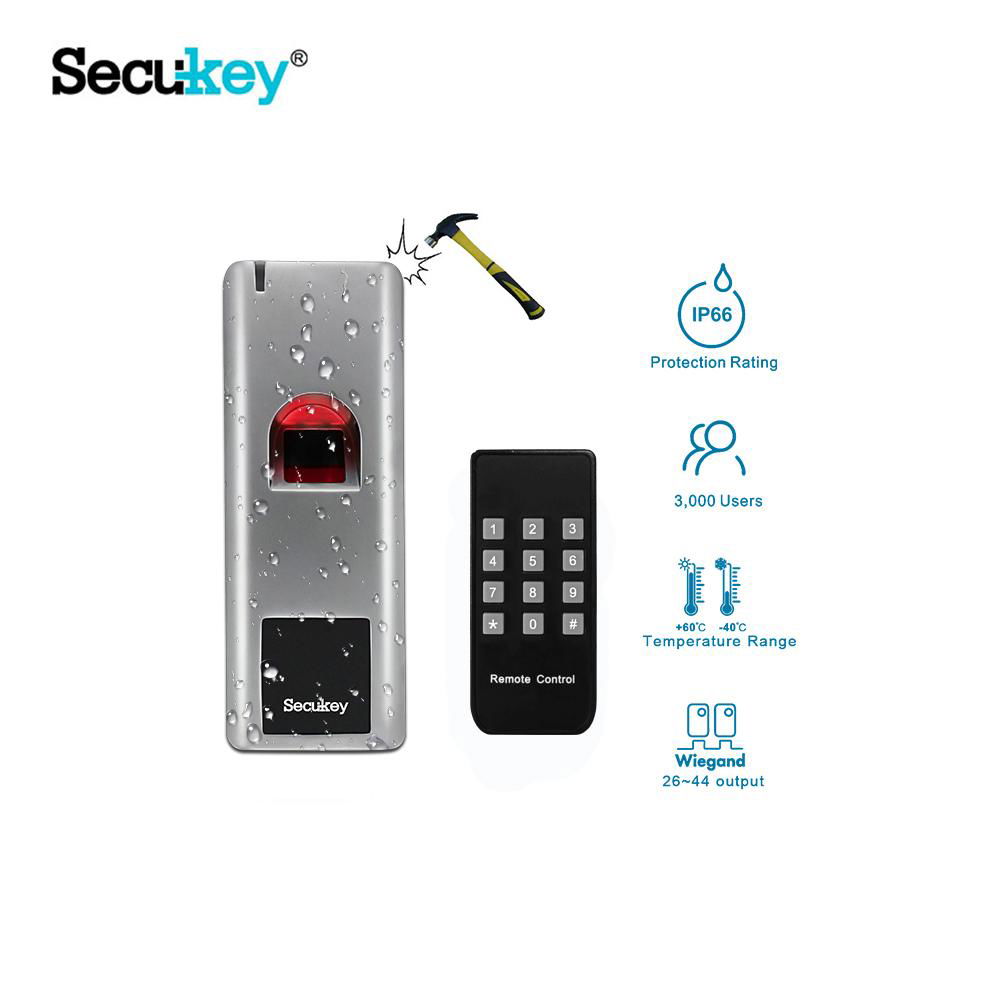

> Waterproof, up to IP66
> Metal Design & Anti-Vandal
> Standalone, one relay
> 1,000 fingerprint, 2,000 card users
> Wiegand 26~44 output
> Pulse mode, toggle mode
> Multi fingerprints/cards access
> Interlock, Support Principal User
|
User Capacity Fingerprint Card |
3000 1000 2000 |
|
Operating Voltage Idle Current |
12V DC < 45mA |
|
Proximity Card Reader Radio Technology Read Range |
EM 125KHz Proximity Card 1~4 cm |
|
Fingerprint Reader Resolution Identification time FAR FRR |
Optical Fingerprint Module 500DPI <1S <0.001% <0.01% |
|

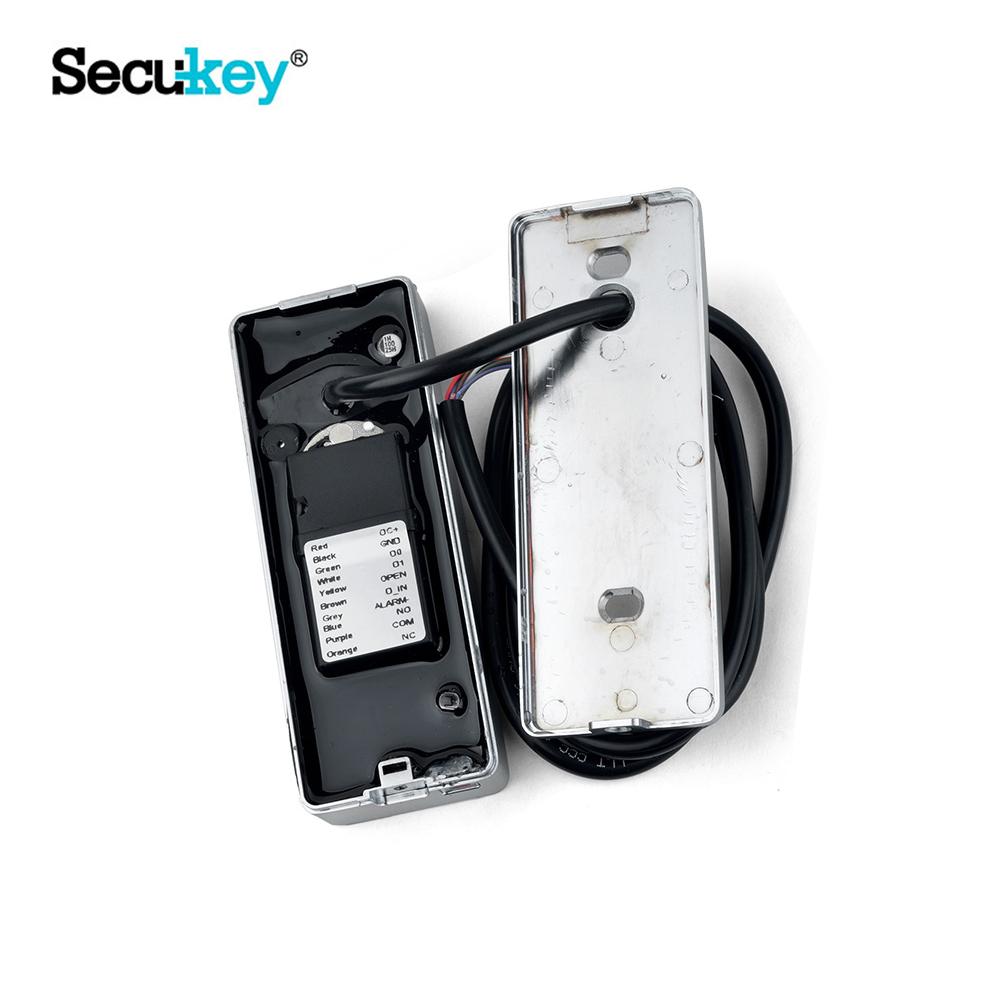

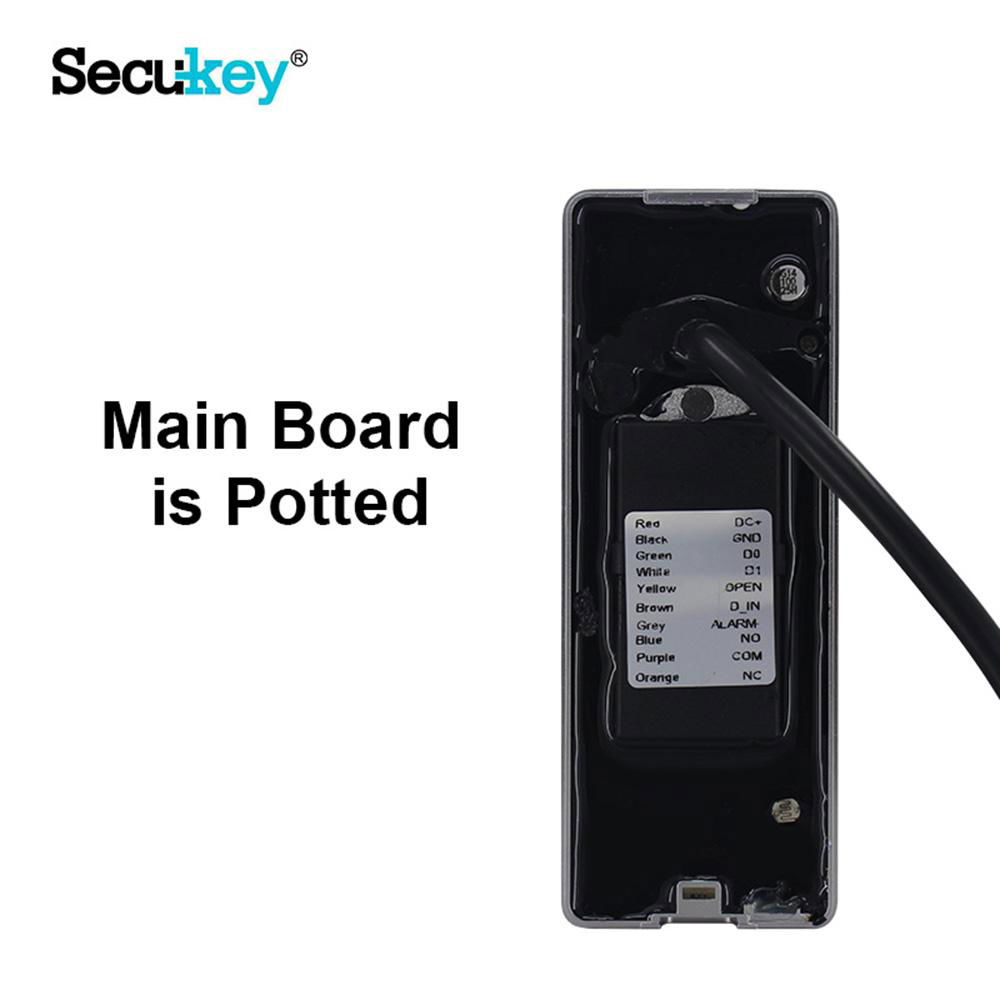

Wiring Connections |
Relay output, exit button, alarm, door contact, Wiegand output |
|
Relay Adjustable Relay Output Time Lock Output Load |
One (NO, NC, Common) 0~99 Seconds (5 seconds default) 2 Amp Maximum |
|
Wiegand Interface |
Wiegand 26~44bits output |
|
Environment Operating Temperature
Operating Humidity |
Meets IP66 -30°C ~ 60°C (-22°F ~ 140°F)--Default -40°C ~ 60°C (-40°F ~ 140°F)--Optional 10%RH ~ 99%RH |
|
Physical Color Dimensions Unit Weight Shipping Weight |
Zinc-Alloy Silver L128 x W48 x H26 (mm) 400g 500g |
