Description

NCS Series of Intelligent Transmitters are digital, intelligent, network-based, merged with advanced, reliable and stable sensor technology, to be designed as a new generation of Fieldbus Intelligent Transmitter.

NCS Series of Intelligent Transmitter have been designed with high precision and high reliability, high stability. The pressure, temperature, currents and other physical quantities are displayed on LCD module. Zero drift, range settings and many other functions, are realized by the magnetism bar operation. The interoperability between different systems and equipments are realized by the Equipment Description Document, which is coMpatible to a variety of device management software, and adapting to harsh electromagnetic environment. NCS Series of Intelligent Transmitter have been used in inflammable and explosive places according to Intrinsically Safety Design.

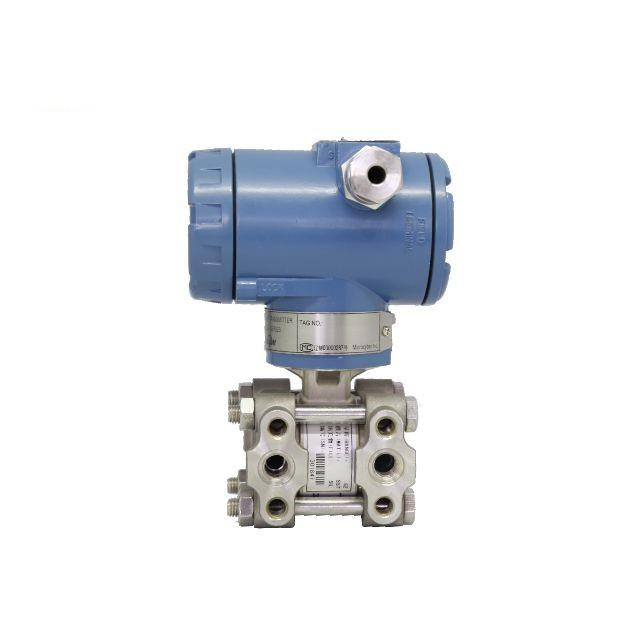

NCS-PT105 series of Intelligent Pressure Transmitters are well- designed with advanced, mature and reliable capacitance sensors, combined with advanced microprocessor technology and digital capacitance measurement technology. Internal microprocessor make it intelligent, high-precise, high reliable and zero-point stable. It is easy to debug in the field.

NCS-PT105 Series of Intelligent Pressure Transmitters, complied with HART Protocol, have been used to measure pressure, level, flow and other industrial parameters, which have been widely used in petroleum, chemical, metallurgy, electricity, cement, etc.

NCS-PT105Ⅱ series Smart Pressure Transmitter with advanced, mature, reliable 3151 capacitance sensors has been designed meticulously by combining advanced microprocessor technology and digital capacitance measurement technology. The powerful functions and high-speed computing capability of the microprocessor make it have excellent qualifications such as smart, high precision, high reliability, stable zero and so on. Its LCD can display many physical parameters (e.g. pressure, temperature, current and so on). It can realize the functions such as zero adjustment, range settings by key-press operation, and it is easy for field testing.

NCS-PT105Ⅱ series Smart Pressure Transmitter supports HART, FF, and PA protocol and can measure pressure, differential pressure, liquid level, flow, and other industrial parameters. It can be widely used in the petroleum, chemicals, electricity, and metallurgical industries, etc..

Features

Excellent Performance

-- High precision: ±0.075% full range (20℃, within the range of 10:1)

-- Long-term stability: ±0.1% of the maximum range within 12 months

Flexibility

-- Pressure type selection (micro differential pressure, surface pressure, absolute pressure, differential pressure, high static differential pressure)

-- Parameters can be set by magnetic bar, hand operator and upper computer software

-- High range ratio (100:1)

Reliability

-- Self-detection function (sensor, memory, communication)

-- Automatic compensation function (ambient temperature compensation, sensor input linearization)

-- Software and hardware fault alarm function

-- Configuration protection: EEPROM write protection function
