Model: | BS-2094 |
---|---|
Brand: | - |
Origin: | Made In China |
Category: | Electronics & Electricity / Electronic Instrument / Optical Lens & Instrument |
Label: | Inverted Microscope , Biological Microscop , Relab |
Price: |
-
|
Min. Order: | - |
Introduction

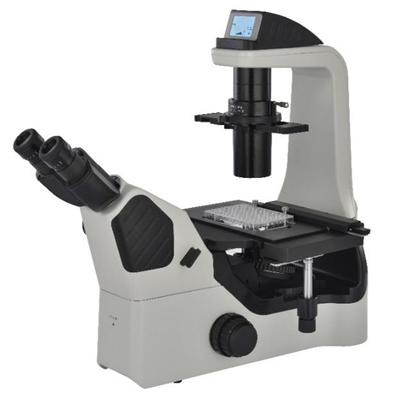

BS-2094 Series Inverted Biological Microscope are high level microscopes which are specially designed for medical and health units, universities, research institutes to observe cultured living cells. With innovative infinite optical system and ergonomic design, they have excellent optical performance and easy to operate features. The microscopes have adopted long life LED lamps as transmitted and fluorescent light source. Digital cameras can be added to the microscope on left side to take photos, videos and make measurement.
The BS-2094B has an intelligent illumination management system, the illumination intensity will automatically change after you change the objectives and make the microscope to get the best illumination effect, BS-2094B also has a LCD screen to show the working mode like magnification, light intensity, transmitted or fluorescent light source, working or sleep etc.
Application
BS-2094 series inverted microscopes are used by medical and health units, universities, research institutes for observations of micro-organisms, cells, bacteria and tissue cultivation. They can be used for continuous observation of process of cells, bacteria grow and divide in the culture medium. Videos and images can be taken during the process. These microscopes are widely used in cytology, parasitology, oncology, immunology, genetic engineering, industrial microbiology, botany and other fields.
Specification
Item |
Specification |
BS-2094B |
|
Optical System |
NIS 60 Infinite Optical System, Tube length 200mm |
● |
|
Viewing Head |
Seidentopf Binocular Head, Inclined at 45°, Interpupillary Distance 48-75mm, Left side camera port, Light distribution: 100: 0 (100% for eyepiece), 0:100 (100% for camera), Eyepiece Tube Diameter 30mm |
● |
|
Eyepiece |
SW10×/ 22mm |
● |
|
WF15×/ 16mm |
○ |
||
WF20×/ 12mm |
○ |
||
Objective |
NIS60 Infinite LWD Plan Achromatic Objective (Parfocal distance 60mm, M25×0.75) |
4×/0.1, WD=30mm |
● |
NIS60 Infinite LWD Plan Phase Contrast Achromatic Objective (Parfocal distance 60mm, M25×0.75) |
PH10×/0.25, WD=10.2mm |
● |
|
PH20×/0.40, WD=12mm |
● |
||
PH40×/0.60, WD=2.2mm |
● |
||
Nosepiece |
Quintuple Nosepiece |
|
|
Coded Quintuple Nosepiece |
● |
||
Condenser |
Long Working Distance Condenser, N.A. 0.3, Working Distance 75mm (with condenser), 187mm (without condenser) |
● |
|
Telescope |
Centering Telescope: used to adjust the center of phase annulus |
● |
|
Phase Annulus |
10×-20×-40× Phase Annulus Plate (center adjustable) |
● |
|
4× Phase Annulus Plate |
○ |
||
Stage |
Stage 170 (X)×250(Y) mm with glass insert plate (diameter 110mm) |
● |
|
Attachable Mechanical Stage, X-Y Coaxial Control, Moving Rang: 128mm×80mm, accept 5 types of petri-dish holders, well plates and stage clips |
● |
||
Auxiliary stage 70mm×180mm, used to extend the stage |
○ |
||
Universal Holder: used for Terasaki plate, glass slide and Φ35-65mm petri dishes |
● |
||
Terasaki Holder: used for Φ35mm Petri Dish Holder and Φ65mm petri dishes |
○ |
||
Glass Slide and Petri Dish Holder Φ54mm |
○ |
||
Glass Slide and Petri Dish Holder Φ65mm |
○ |
||
Petri Dish Holder Φ35mm |
○ |
||
Petri Dish Holder Φ90mm |
○ |
||
Focusing |
Coaxial Coarse and Fine Adjustment, tension adjustment, Fine Division 0.001mm, Fine stroke 0.2mm per rotation, Coarse stroke 37.5mm per rotation. Moving Range: up 7mm, down 1.5mm; Without limitation can up to 18.5mm |
● |
|
Transmitted Illumination |
3W S-LED, Brightness Adjustable |
|
|
3W S-LED Koehler illumination, Brightness Adjustable |
● |
||
EPI-Fluorescent Attachment |
LED illuminator, built-in Fly-eye lens, can be configured with up to 3 different fluorescence blocks; B, B1, G, U, V, R fluorescent filters are available |
○ |
|
Hoffman phase contrast |
Hoffman Condenser with 10×, 20×, 40× insert plate, centering telescope and special objective 10×, 20×, 40× |
○ |
|
3D Emboss Contrast |
Main emboss contrast plate with 10×-20×-40× will be inserted into condenser |
○ |
|
Auxiliary emboss contrast plate will be inserted into slot which is near viewing head |
○ |
||
C-mount Adapter |
0.5× C-mount Adapter (focus adjustable) |
○ |
|
1× C-mount Adapter (focus adjustable) |
○ |
||
Other Accessories |
ECO function: will turn off after 15 minutes if no user |
○ |
|
Warm stage |
○ |
||
Light barrier plate(contrast shield), can be attached to the condenser and block the external light |
○ |
||
Dust cover |
● |
||
Power Supply |
AC 100-240V, 50/60Hz |
● |
|
Fuse |
T250V500mA |
● |
|
Packing |
2cartons/set, Packing Size: 47cm×37cm×39cm, 69cm×39cm×64cm Gross Weight: 20kgs, Net Weight: 18kgs |
● |
Note: ● Standard Outfit, ○ Optional
