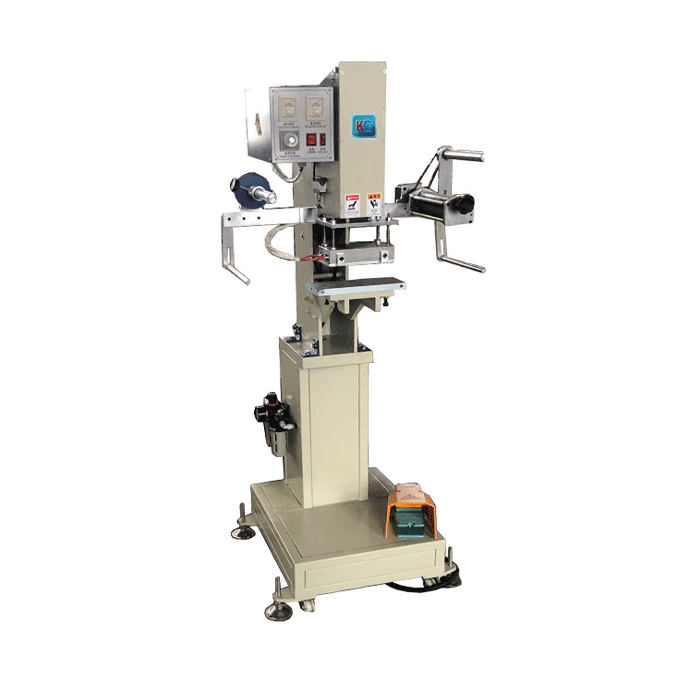

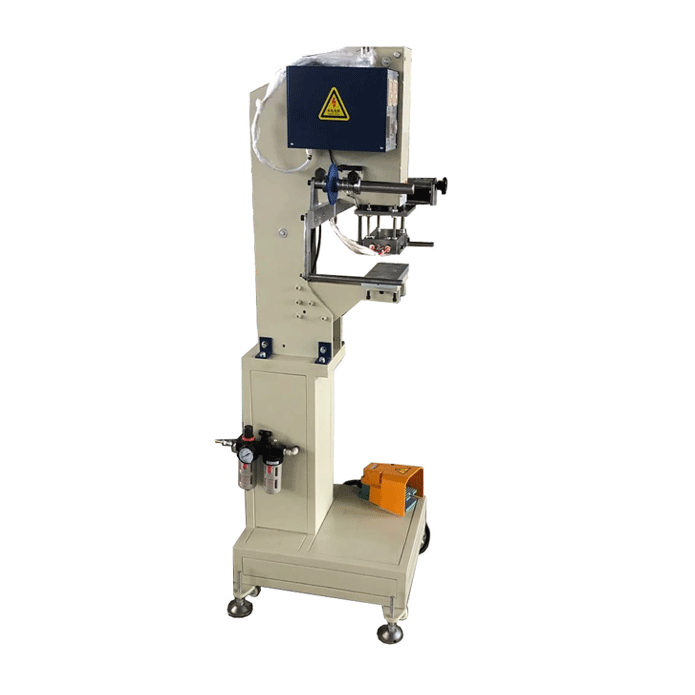

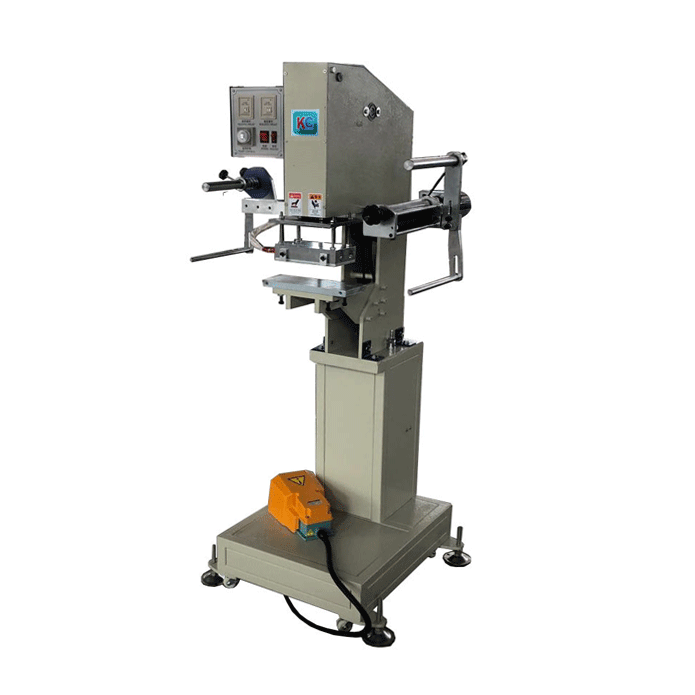

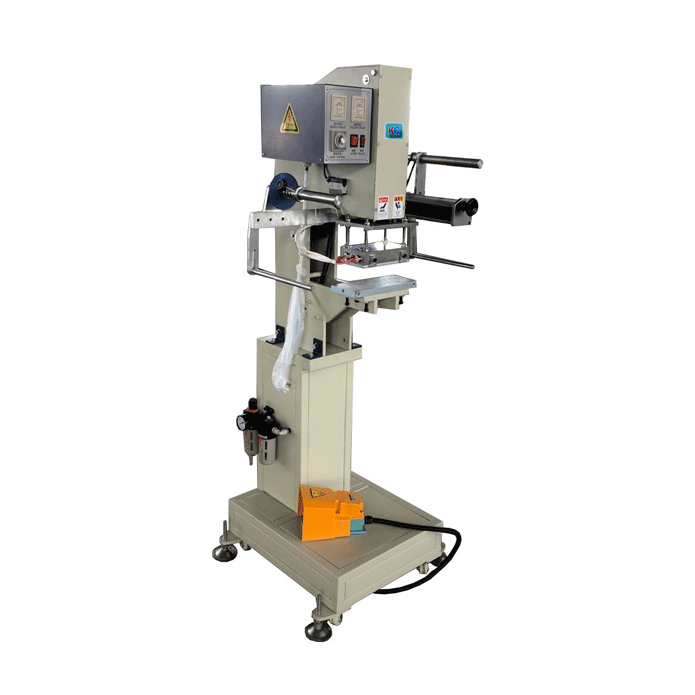

Plastics crates hot stamping machine

Model:	H-TC1520TBC
Brand:	KC
Origin:	Made In China
Category:	Industrial Supplies / Plate Making & Printing Machine
Label:	hot stamping machin , bronzing machine , gilding machine
Price:	US $4000 / pic
Min. Order:	1 pic

Inquire Now

Product Description

Some plastic frames such as beverage frames, beer frames and other products that transfer fragmentary items also need to be stamped, but these products often have a large internal space. In order not to make the design height of the bronzing machine too high, the bronzing machine is often designed with a cantilever Structured workbench, so that the plastic frame can be set on the cantilever workbench for hot stamping. The cantilever hot stamping machine is not only suitable for plastic frames of various sizes, but also suitable for some shopping bags.
Usually, the hot stamping area of the plastic frame is not large, and the pneumatic hot stamping machine can meet the requirements. If greater pressure is required, a hydraulic hot stamping machine can also be considered.

H-TC1520TBC Pneumatic turnover crates hot stamping Machine//Structure
Working table	Contilever working table , size:200*300mm.
Stamping Head drive	Pneumatic drive
Foil collecting method	Motor-drive , Collecting time adjustable
Press adjustment	Up-down of working table
Temperature control	Heating tube heat up，Automatically temperature controlling, temperature free setting
Foil collecting	Motor drive, Automatically collecting
Stamping plate size	150*200mm.
H-TC1520TBC Pneumatic Crates hot stamping machine //Usage and characters
Guide	Stamping foil feed in automatic and automatically temperature controlling; Weight pressure ensure more big area stamping . Suitable for gilding Different Container , waste bin, PET film, House equipment Panel; Because of large pressure. widely used in the process of Gilding ,Bronzing , Impression, Embossing , Leather embossing etc; Full-steel structure ensure stabilization Bronzing action, Adjustable working table to make pressure between working table and object. Flat-object stamping machine with large-pressure, Suitable for stamping on wooden gift; Pneumatic drive, pressure large; Suitable for various pass container; All kinds of plastics box; Waste bin; Beer case; basket case.;
Application fields	Trash Box waste bin gilt; Beverage, food, industrial turnover box gilt; Products of the gilt frame of mind; Gilt shell household appliances; File cabinets, file box gilt.
H-TC1520TBC Pneumatic hot stamping Machine //Parameter
Technical parameters	H-TC1520TBC precision hot stamping Machine For Crates Hot plate area:150×200 mm Working table area:200 ×300mm Max printing pressure:1,000－1500 Kg Up and down distance:100mm Heat wattage:1200W Foil in feed: Motor Drive Temperature adjustment:0-300oC .
Works supply	110V-220VPower supply； 5-7Bar compress air
Package list	Package size: 0.800.801.70m; Gross weight: 260kg; CBM: 1.088
H.S.Code	8443198000
Certificate	CE
H-TC1520TBC Pneumatic crates hot stamping machine //Advantage
Function	Workbench using a special cantilever structure, which will help to place different types of turnover box; Table can be up and down, the precision adjustment, to facilitate the adjustment of the precise location of the gilt; Table lifting screw adjustment, simple and convenient; Relays for process control, stable operation, easy maintenance; The use of advanced temperature control system, the temperature can be set freely, high precision temperature control, with automatic temperature control; leveraged cylinder pressure, the pressure is uniform and strong; The basic parameters of the hot stamping process; temperature, pressure, hot pressure, the rolls of time in accordance with the process requirements of the flexible adjustment; Motor to control the delivery of the gold foil paper, resin length can be flexibly adjusted according to the size of the stamping area; Using high strength steel, gilt plate and table, has a very high flatness; Heating tube for heating, heat supply is stable, easy to replace

Application:	Some plastic frames such as beverage frames, beer frames and other products that transfer fragmentary items also need to be stamped, but these products often have a large internal space. In order not to make the design height of the bronzing machine too high, the bronzing machine is often designed with a cantilever Structured workbench, so that the plastic frame can be set on the cantilever workbench for hot stamping. The cantilever hot stamping machine is not only suitable for plastic frames of various sizes, but also suitable for some shopping bags. Usually, the hot stamping area of the plastic frame is not large, and the pneumatic hot stamping machine can meet the requirements. If greater pressure is required, a hydraulic hot stamping machine can also be considered.
