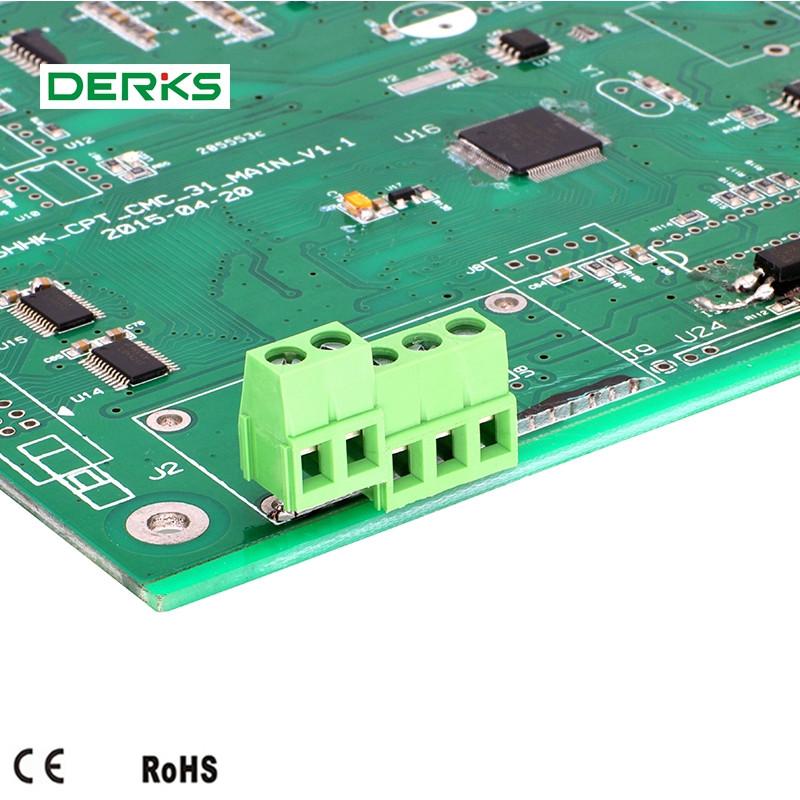

5.00mm pitch screw terminal block
| Model: | YB312-500 |
|---|---|
| Brand: | DERKS |
| Origin: | Made In China |
| Category: | Electronics & Electricity / Electronic Components / Terminal |
| Label: | pcb terminal block , screw terminal block , terminal block |
| Price: |
US $0.03
/ POLE
|
| Min. Order: | 1000 POLE |
Product Description
Product Features:
1.UL listed
2.Made of PA66,UL94V-0
3. Good performance in quick connection of wires
|
Material and plate |
Electrical Specifications |
||
|
Crimping frame |
Brass nickel plate |
Rated Voltage |
300V |
|
Plastic Parts |
PA66,UL94V-0 |
Rated Current |
16A |
|
Screw |
M2,steel zin plate |
Contact resistance |
20MΩ |
|
Color |
Green |
Insulation resistance |
5000 MΩ DC500V |
|
Working Conditions |
Insulation withstand voltage |
AC2000V/1Min |
|
|
Operation temperature |
-40°C ~105°C |
Wire range |
28-12 AWG 2.5MM2 |
|
Instantaneous temperature |
250°C 5SEC |
Stripping Length |
5-7MM |
| Payment Terms: | TT |
|---|---|
