Galvanized Mesh welded steel mesh reinforcement mesh

Product Description

Specification of reinforcement mesh, calculation formula of reinforcement mesh, quotation of reinforcement mesh, reinforcement mesh

Reinforcement weight t = [(length (width) of mesh / spacing of mesh + 1) width (length) of mesh] x theoretical weight of reinforcement x reinforcement loss (general area 5%). For example, there is a mesh with a diameter of 6.5 reinforcement, 6 meters long and 2 meters wide, and the mesh spacing is 0.2 meters. The weight of mesh is calculated as follows: T = ((6 / 0.2 + 1) * 2 + (2 / 0.2 + 1) * 6) * 0.261 * 1.05 = 35.08kg

click here for more information.

1. Also known as: steel mesh, steel welded mesh, steel welded mesh, steel welded mesh, steel mesh, etc

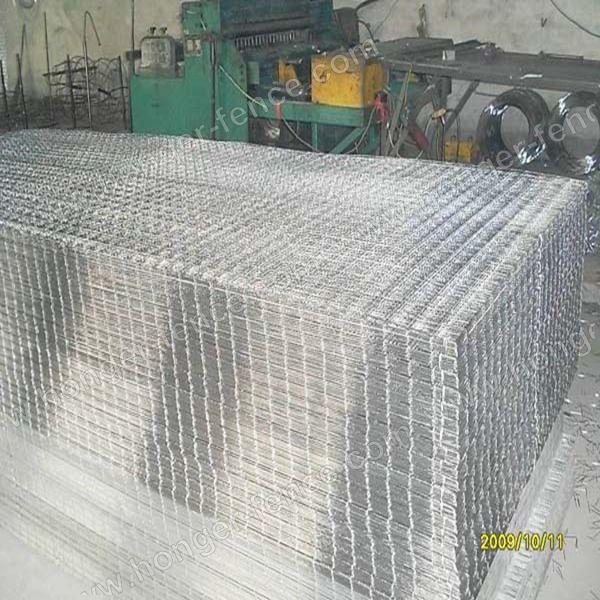

Welded steel mesh is a kind of mesh in which the longitudinal steel and transverse steel are arranged at a certain distance and at right angles to each other, and all the intersections are welded together.

2. Welding technology

The special GWC welding mesh machine is used for welding, and the welding procedure is automatically controlled by the computer. The mesh is uniform, the welding quality is good, and the mechanical properties of the reinforcement are almost unchanged before and after welding.

Galvanized Mesh Factory:Shijiazhuang Honger International Trade Co., Ltd.

3. Raw materials of welded steel mesh

The welded steel mesh should be made of crb550 cold rolled ribbed steel bars or HRB400 hot rolled ribbed steel bars, or cpb550 cold drawn plain steel bars.

4, classification

Welded steel mesh can be divided into cold-rolled ribbed welded steel mesh, cold drawn plain welded steel mesh and hot-rolled ribbed welded steel mesh according to the raw materials, of which cold-rolled ribbed welded steel mesh is the most widely used. According to the brand, diameter, length and spacing of the reinforcement, the welded steel mesh can be divided into two types: the fixed welded steel mesh and the customized welded steel mesh.

https://www.honger-fence.com/product.html

5, advantages

Significantly improve the quality of reinforcement works

Obviously improve the construction speed

Strengthen the crack resistance of concrete

With better comprehensive economic benefits

6, prospect

1. It is the trend of the development of the steel industry in the world that the steel construction should follow the road of welded mesh.

2. Welded steel mesh, a new type of reinforcement, is especially suitable for large-area concrete projects.

3. The wide and rapid popularization and application of cold drawn ribbed steel bars and hot rolled grade III steel bars in China provide a good material basis for the development of welded mesh. The formal implementation of welding net product standard and use rules has played a positive role in improving product quality and accelerating promotion and application.

4. China’s market has great potential for the demand of welded steel mesh.

5. Welded steel mesh is aesthetically pleasing.

6. China is a big steel country in the world.

7. The development of welded steel mesh in China has met the soft and hard conditions.

Shijiazhuang Honger International Trade Co., Ltd. is located in Shijiazhuang, the capital of Hebei Province. Its business covers North China, East China and South China. Our company is a professional supplier of metal wire mesh, metal shelves, shelves and other products.
