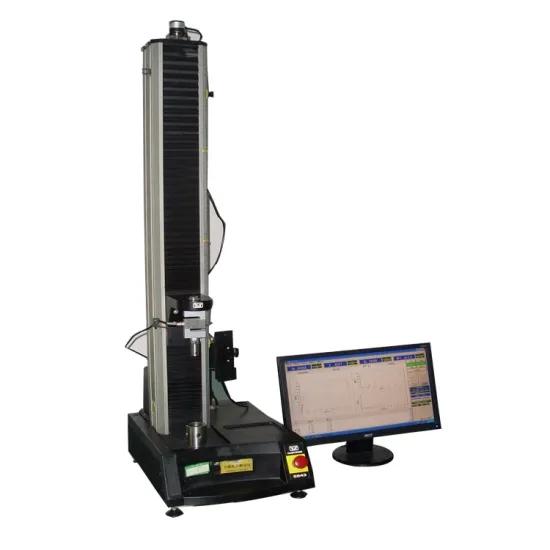

Computer Controlled Double or Single Column Universal Tensile Tester

Model:	YUT-05-S
Brand:	Yuanyao
Origin:	Made In China
Category:	Electronics & Electricity / Electronic Instrument / Test Bench
Label:	Universal Tensile Te , Tensile Tester , Tensile Tester
Price:	US $1000 / pc
Min. Order:	1 pc

Inquire Now

Product Description

Features:

1 Adopting high precision load and high precision data acquisition circuit to sense materials tensile strength value.

2 Widely used in hardware, rubber plastic, wire, cable, terminal, clothing, leather and other materials of physical strength.

3 Physical strength test: Tensile, tear, peel, compression, bending, shear, three bending, etc.

4 Function: Maximum lock take save, averaging, automatic capture the whole car displacement, automatic calculation elongation, print. The experiment curve output, report output.

5 Apply with ISO, JIS, ASTM, DIN, GB and other standard requirements.

6 Customization is available & welcomed.

7 One year free accessories warranty.

Technical parameters:

Model	YUT-05-S	YUT-10-S	YUT-20-S	YUT-05-L	YUT-10-L	YUT-20-L
Capacity(optional)	5000kgf	10000kgf	20000kgf	5000kgf	10000kgf	20000kgf
Unit(Switchable)	Kgf,1bf,N,kN,Mpa,Kpa			Kg,gN,1b Kgf/cm2 1b/in2 kgf/m2
Load Resolution	1/200,000			1/10,000
Load Accuracy	±0.5%			±0.1%
Load Magnifying Rate	no period
Stroke(exclude the grips)	1150mm
Effective width	570mm
Test speed	0.001~200mm/min(selectable)			10~200mm/min adjustable
Stroke Resolution	0.001m
Sampling Rate	200pcs/s			10pcs/s
Software	Computer System
Motor	AC Servo Motor			DC motor
Dimension(W×D×H)	150×660×2200mm
	1000×600×1180mm			500×630×1340mm
Weight(approx)	640kg
	60kg			40kg
Power	AC 1Ψ 220V/50Hz

Except Computer Controlled double column Universal Tensile Tester, we also can supply:

Precision Oven Tester, Triple Type Temp. & Humi. Chamber, Temp. &Humi. Control Host, Air Thermal Shock Tester, Liquid Thermal Shock Tester, Walk-in environmental Test Room, Temp. Humi. &Vibration Conbined Test Chamber, Aging Oven Tester, Rain/Spray Test Chamber, Burn-in test equipment, Dust Tester, Steam Aging Tester, Vibration Tester, Salt Spray tester, Drop Tester and so on.

Welcome to enquire and purchase!
