Sinotruk 3 Axles 20ft and 40ft Container Flat Bed Semi Trailer Max.Loading 50t
| Model: | - |
|---|---|
| Brand: | Howo |
| Origin: | Made In China |
| Category: | Transportation / Logistics / Logistics Auxiliary Equipment |
| Label: | Flatbed semi trailer , container trailer , semi trailer |
| Price: |
US $10000
/ unit
|
| Min. Order: | 1 unit |
Product Description

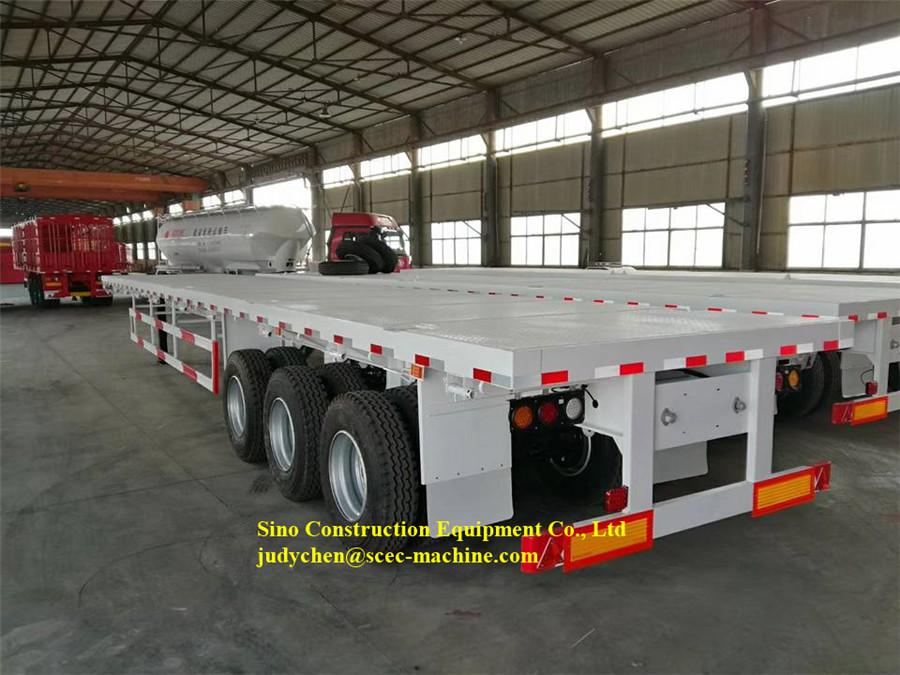

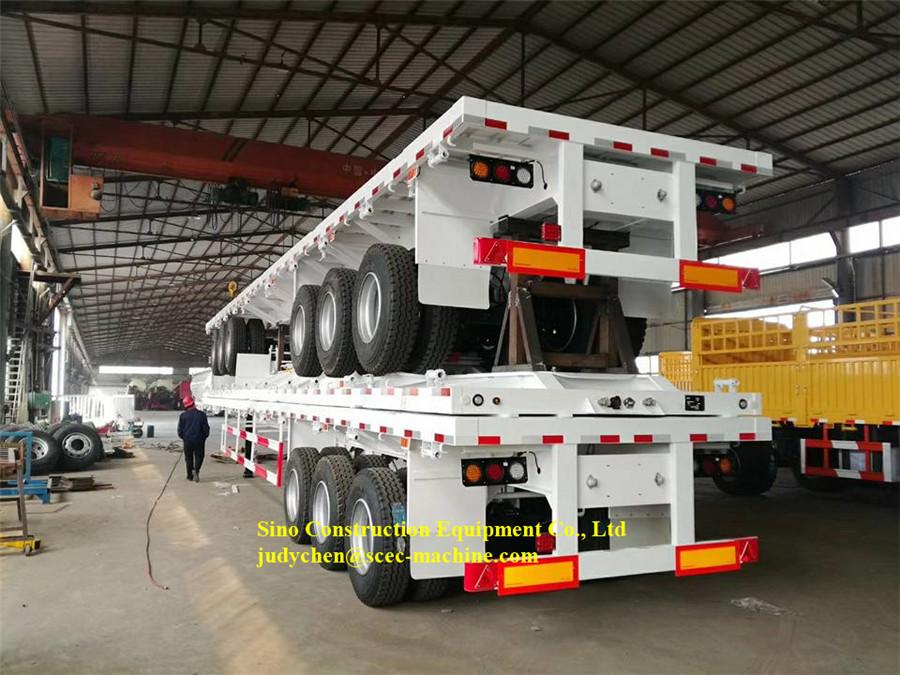

Sinotruk 3 Axles 20ft and 40ft Container Flat Bed Semi Trailer Max.Loading 50t
The container flat semi-trailer is equipped with a patterned bottom plate and a spin lock. It is mainly used for transporting long cargo and containers. After installing the fence, the remaining bulk cargo can be loaded, which is widely used in the logistics industry. The vehicle can be applied to off-highway roads and has a large bearing capacity.
Detail specification of Sinotruk 3 Axles 20ft and 40ft Container Flat Bed Semi Trailer
|
Name |
Sinotruk 3 Axles 20ft and 40ft Container Flat Bed Semi Trailer
|
|
Overall dimension |
12500 *2500 * 1550mm |
|
Loading capacity |
50T |
|
Axle brand and number |
13TFuwa Brand, 3units |
|
Wheel base(mm) |
6880+1310+1310 |
|
Kingpin |
50# or 90# |
|
Steel Spring |
10/10/10 leaf spring suspension |
|
The material of Main beam |
The height of the beam is 500 mm, upper plate is14mm,down plate is 16mm, middle plate is 8mm. |
|
Tyre and quantity |
12R22.5 12pieces |
|
Landing gear |
28T, double speed operation |
|
Platform plate |
3mm Checkered steel plate |
|
Brake system |
Dual Line braking system ,none ABS. |
|
Brake air chamber |
Four double and two single chamber |
|
Electrical system |
24V,7 pin socket,One set 6-core standard Cable |
|
Light |
Tail lamp with turn signal, brake light & reflector, side lamp etc |
|
Tool box |
1 set |
|
Spare tire carrier |
2 sets |
|
Painting |
Optional |
|
Packing |
Polish with wax before shipping |
Packaging & Shipping
1. Delivery:20 Days Since the Moment We Get the Down Payment
2. Packaging: Nude or According to Clients' Demand.
3. Arrange the soonest shippment the moment trucks produced
