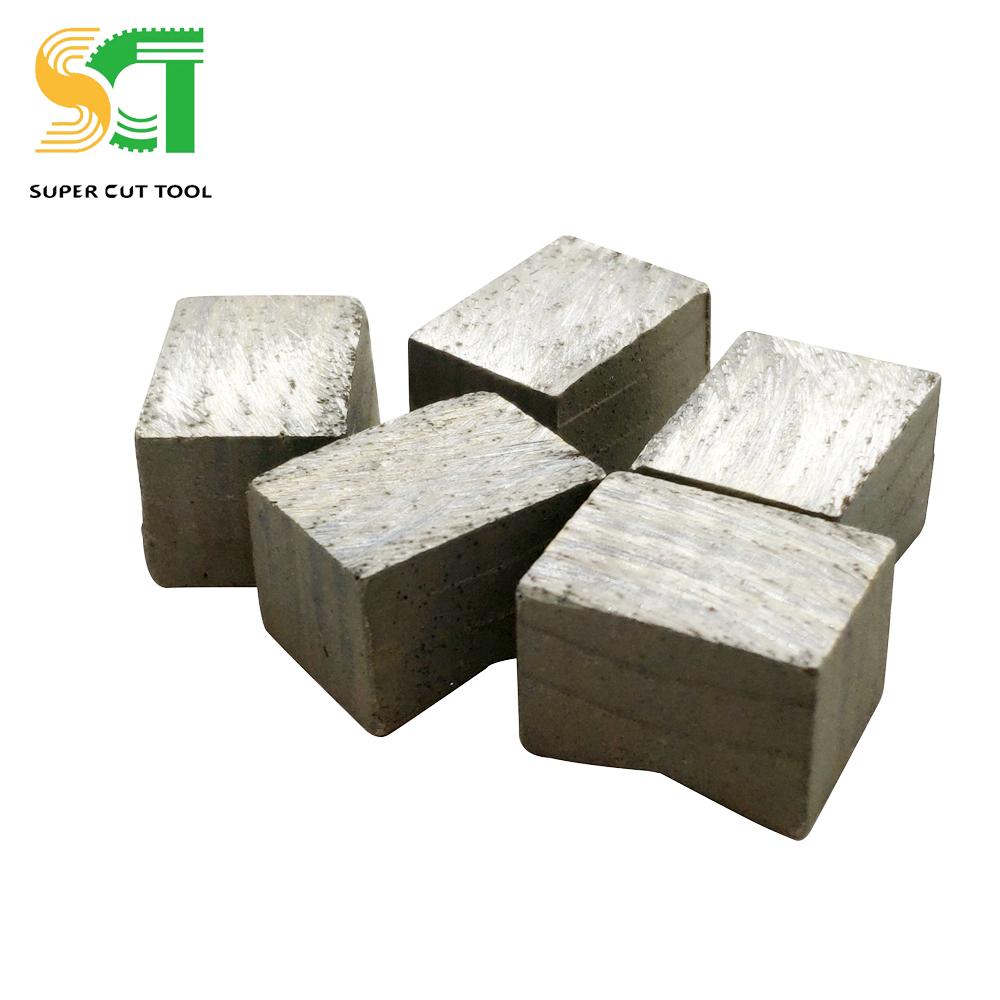

Diamond segment for granite&marble block and slab cutting

Model:	segments
Brand:	SCT
Origin:	Made In China
Category:	Industrial Supplies / Tools / Other Tools
Label:	Diamond segment , diamond cutting tool , stone cutting tools
Price:	US $0.6 / pc
Min. Order:	10 pc

Inquire Now

Product Description

Product features:

1. Good sharpness cutting in high speed without chipping less noise in work and save power.
2. Long life span, high cost-effective and stable cutting performance.
3. Smooth cutting flat surface and even size cutting result.
4. Good segment shape easy for diamond opening.

Product Description

Product name	Diamond segment for Stone
Use for	Granite/Sandstone/Quartz/Lava stone/Andesite, etc.
Segment shape	Trapezoid, Rectangle, W/M/etc.
Segment sharp	Sandwich, Layer, etc.
Supply Ability	6,000,000 Pcs/Month
Factory	More than 17 years’ experience
Delivery time	7~15 days after payment received.

Product size

Diameter(mm)	Steel Core Thickness(mm)	Segment Dimension (mm)	Segment No.
Φ250	2.2	40×3.2×10(15,20)	17
Φ300	2.2	40×3.2×10(15,20)	21
Φ350	2.2/2.4	40×3.4×10(15,20)	24
Φ400	2.6	40×3.6×10(15,20)	28
Φ450	2.8/3.0	40×4.0×10(15,20)	32
Φ500	3.0/3.2	40×4.2×10(15,20)	36
Φ600	3.6/3.8	40×4.8×10(15,20)	36/42
Φ700	4	40×5.2×10(15,20)	42
Φ800	4.5	40×6.0×10(15,20)	46
Φ900	5.0	24×7.0/6.4×15(20)	64
Φ1000	5.0	24×7.0/6.4×15(20)	70
Φ1200	5.5	24×8.0/7.4×15(20)	80
Φ1300	6.0	24×8.4/7.8×15(20)	88
Φ1400	6.5	24×8.4/7.8×15(20)	92
Φ1600	7.2	24×9.2/8.4×15(20)	108
Φ1800	7.5	24×10.0/9.0×15(20)	120
Φ2000	8.0	24×10.5/9.5×15(20,25)	128
Φ2200	9.0	24×11.0/10.0×15(20,25)	132
Φ2500	9.0	24×11.5/10.5×15(20,25)	140
Φ3000	9.5	24×12.5/13.5×20(25,30)	160
Φ3500	9.5	24×13.5/14.5×20(25,30)	180
