Product Description

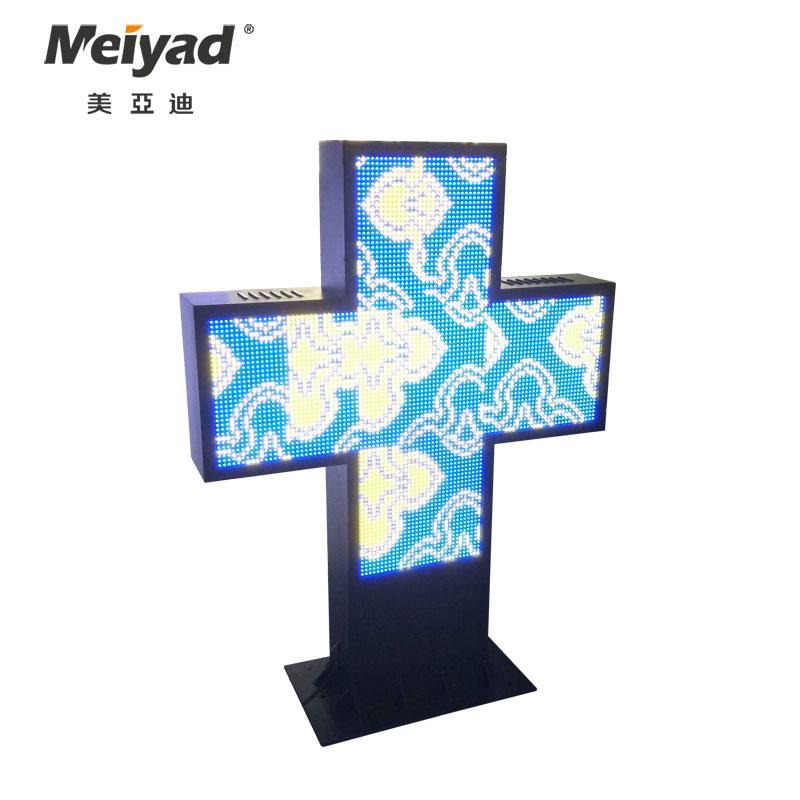

Features of Meiyad P10 Outdoor LED Pharmacy Cross Sign



LED pharmacy sign board is one kind of heteromorphic display consisting of LED cross modules and cross cabinet. The system combines with the technology of optics, microelectronics, information processing and transmission, mechanics and other technology etc. as a whole. The main application areas: the chemist's shop, pharmacy, drugstore, Apotheke, farmacia, church, hospital and crossroad.



• For outdoor usage Waterproof IP67, radiation proof

• Light weight, thin depth, front maintenance

• Good quality with two side display, remote control board change the display shape

• Display time/date/Temperature/Humidity/Animation

• Brightness more than 7500cd/sqm

• Aluminum / steel frame(cold rolled iron)

• Low power consumption, high bright, easy installation

• Asynchronous control (RF/LAN/WIFI/RS232)

• Other colors, sizes and one side available





Installation Way of LED Pharmacy Cross Sign







Technical Parameters



Technical Parameters of Double Sides Outdoor P10 LED Pharmacy Cross Sign



Pixel Pitch	10mm	Pixel Density	10000 pixels/m²
Pixels Per Panel	32×16 Dots	Module Size	W 320mm×H 160mm
Scan Mode	1/2S	Drive mode	16-bit constant current drive
LED Configuration	1Red,1Green,1Blue	LED Type	SMD 3535
Recommended Viewing Distance	≥10m	Brightness	7500cd/m²
Environment	Outdoor	Operating Temperature	-20℃~+60℃
Horizontal Viewing Angle	+/-140°	Vertical Viewing Angle	+/-140°
Video Frame Rate	50/60 Hz	Rate Refresh	≥1920 Hz
Color Temperature	9000±500K	Input Power <Max>	1700W/ sqm
LED Life Time	≥100,000 Hours	Acoustic Noise	Fanless operation

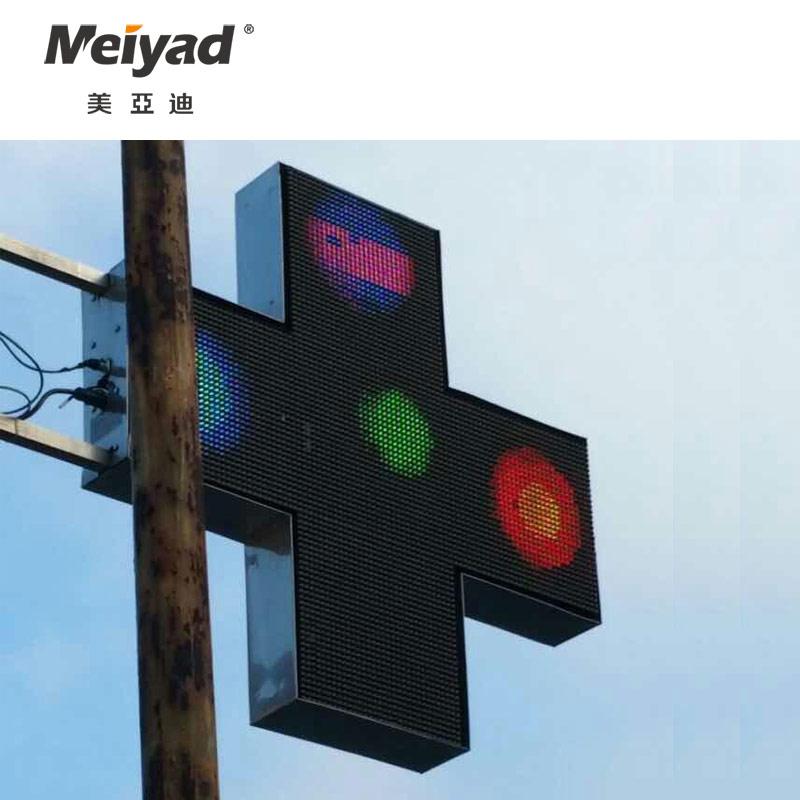

Cases

Some Cases of LED Pharmacy Cross Sign







Packaging & Shipping



Packaging of Meiyad Double Sides Outdoor P10 LED Pharmacy Cross Sign





About Meiyad



Shenzhen Meiyad Optoelectronics Co, Ltd. was founded in 2008. Meiyad is a national high-tech enterprise which focuses on R&D, manufacturing, retail and serving of LED display. We have our own operation center and manufacturing base in Shenzhen.

Our products are widely used in indoor and outdoor commercial meida, sports venues, stage performances, special-shape creativity, etc. We also provide LED display integrated solutions. With the development of technology and manufacture workmanship, we have made many classical cases in the international market.









FAQ

Q1: Why choose us:

A1.1: Company Info: Meiyad has been in LED industry for 11 years, focusing on the led display, and have completed more than 5000 projects home and aboard, thus we are fully experienced to provide led display solutions. Meiyad are focusing and professional!

A1.2: R&D Team: Meiyad has the R&D team with more than 8 years' experience, and launch new products according to the customers' needs every year or even each quarter.

A1.3: Products: there are indoor and outdoor fixed led display screen, indoor and outdoor rental led display, creative led display such as flexible led display, led donut and led triangle. They are widely used for shopping mall, stage, events, conference room, church etc. Meeting the demands of message display and delivery.

A1.4: Manufacturing: Meiyad has strict QC control and manufacturing management process, which enable our products high quality and stable working performance.

A1.5: Service: Meiyad has have specialized technicians before and after sales. And strong marketing team to offer you the solutions 7/24 anytime.



Q2: What’s your payment term? How long it takes to delivery?

A2: T/T and L/C, 30% deposit in advance, and balance 70% before shipment.



Q3: What is the control system?

A3: We use Nova and Linsn control system.



Q4: How can you ensure your led display product quality?

A4: Meiyad has been enrolled in led display industry for 11 years, and professional R&D team and skilled QC team with standard process to assure quality products.
