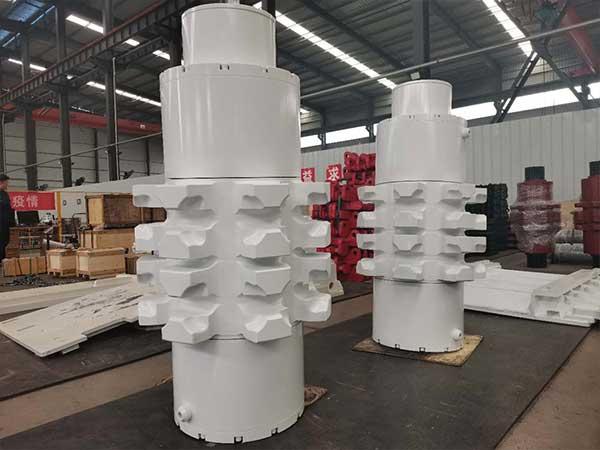

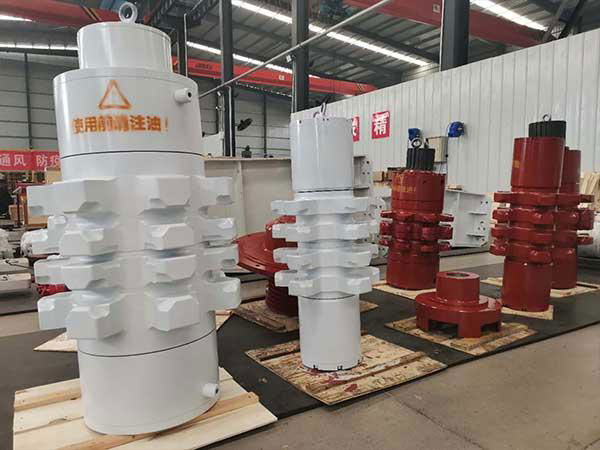

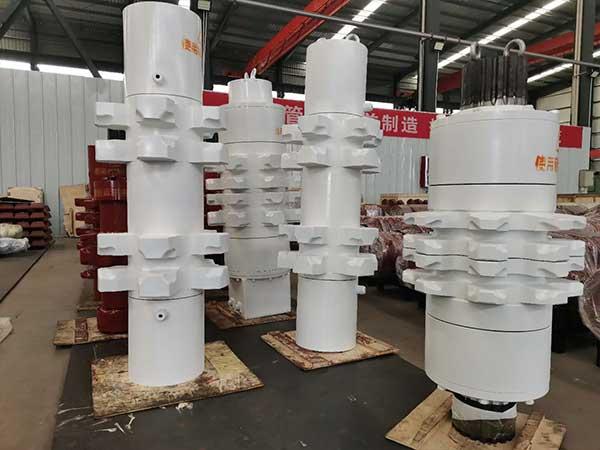

The mine sprocket assembly 23Z1702 is the driving part of the coal mine scraper conveyor. It is located at the tail of the 764 scraper, which drives the scraper chain to operate in the central trough of the scraper for conveying coal. Today we will work together with Henan Shuangzhi machinery to understand the mine sprocket assembly 23Z1702.

Mineral sprocket assembly 23Z1702 has high strength, strong wear resistance, can withstand impact load, and has a certain toughness; Mine sprocket assembly 23Z1702 tooth size parameters design accurate, high processing precision, so that can ensure the chain socket and chain mesh well, reduce the chain jump, chain clip phenomenon.

When installing the mineral sprocket assembly 23Z1702, the two bearing pedestals are respectively placed on the left and right side plates of the tailstock, and the sprocket assembly is fixed on the tailstock through the locating pin, which is convenient and fast to install. At the same time of installation, clean the rust-proof layer of the spline at shaft end of the mine sprocket assembly 23Z1702, scrub clean and apply butter. After the assembly of the mineral sprocket assembly 23Z1702 and the tail frame, industrial gear oil is injected into the oil tank through the sprocket assembly oil filling hole to ensure the normal operation and lubrication of the sprocket assembly 23Z1702.

There are two kinds of sprocket assembly structure: split type and integral type. The mine sprocket assembly 23Z1702 is a split sprocket assembly, its structural features are: when the sprocket teeth wear can only replace the sprocket body or not the whole replacement, so that the maintenance cost can be saved to a certain extent.

Mine sprocket assembly 23Z1702 is just one of many sprocket assembly scraper, as a transmission component, its wear replacement is also relatively common. And Henan Shuangzhi Machinery as a plate scraper accessories manufacturers, has been committed to the production and processing of sprocket components, improve sprocket wear resistance, extend the use cycle is what we have been doing, also welcome new and old customers to consult exchanges, hope to help you.
