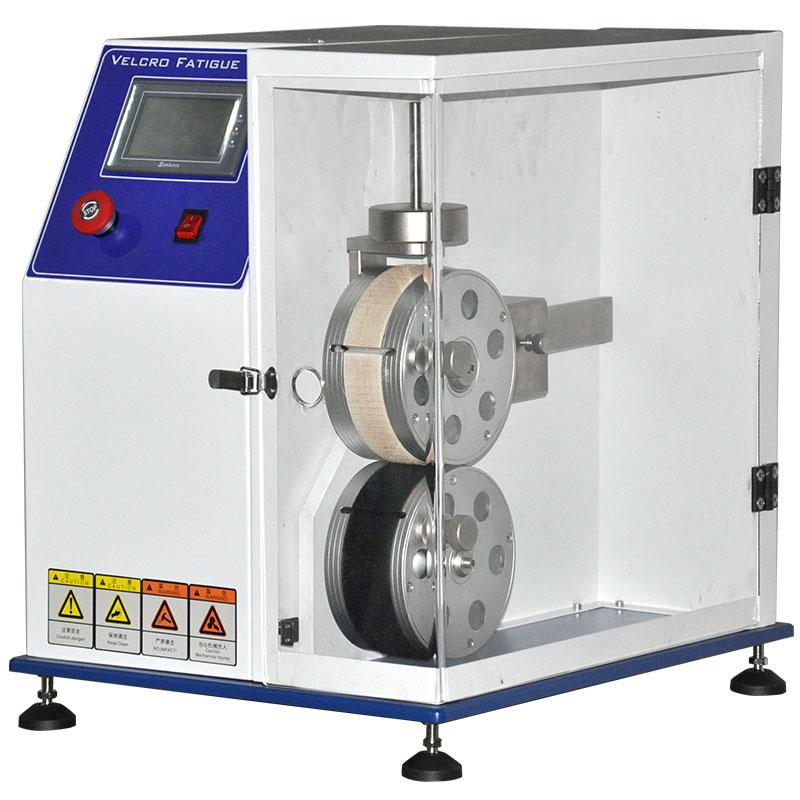

TN11278 Touch and Close Fasteners Fatigue Tester

Velcro Durability Tester



INTRODUCTION

Through the apparatus to achieve Velcro (hook & loop) to repeated stripping and peeling after a certain times. Cut the sample into 75×20 mm with press it with the wheel to be fitted completely. Use tensile machine (another purchase) to measure its peeling strength (AS) and shear strength (PA).

TECHNICAL PARAMETERS

1. Diameter of driven wheel : 160± 0.5 mm

2. Driving wheel diameter : 162.5± 0.5 mm

3. The groove width on the roller : 55±2 mm

4. Roller width : ≥70 mm

5. Small roller speed : 0~70 rpm adjustable, the standard requirements of 60±5 rpm, every (30±5) s reverse

6. Times : 0 to 999 99 times configurable

7. Sample force : (1±0.1) N/mm× sample width (mm), adjustable

8. Dimension : 46×53×52 cm

9. Power supply : AC220V, 50/60 Hz

10. Weight : about 45 kg

STANDARDS

DIN 3415,GB/T 23315-2009

ORDERING INFORMATION

11278-1  Manual rolling roller
