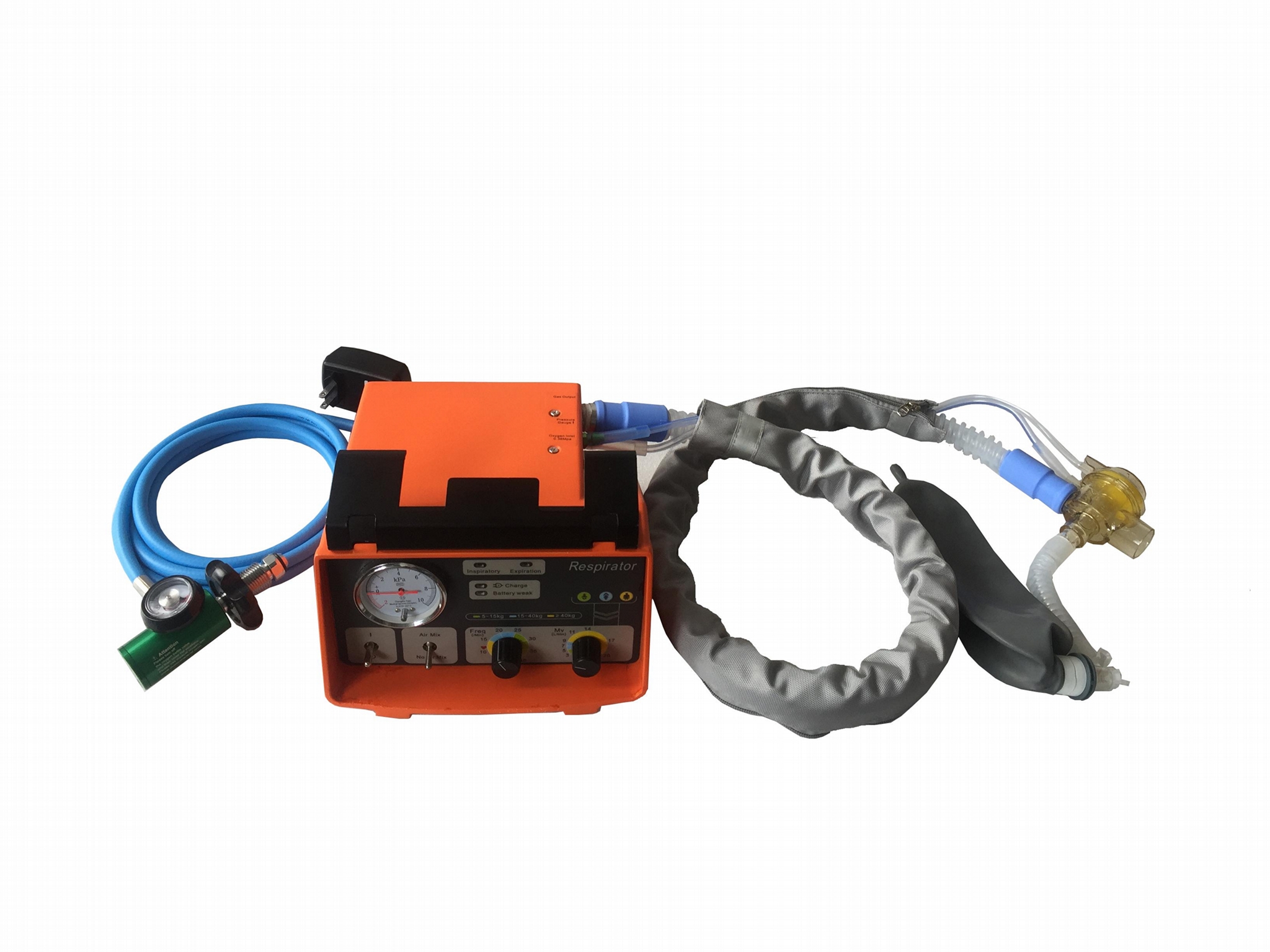

Emergency and Transport Ventilator for first-aid and ambulances

Description: Used for first-aid, ambulances, emergency treatment and patients' transport in hospital.

Main Features:

1. Volume controlled method, used for adults and children over 5kg;

2. Yellow, blue and green, the three-color blocks distinguish parameter ranges for suitable crowd;

3. Oxygen concentration have two settings: Air Mix/No Air Mix; Saving more oxygen;

4. Minute ventilation indication, setting parameters conveniently and quickly;

5. Real time airway pressure indication;

6. Equipped with multifunctional handle, which is convenient for ventilators to be fixed on various stretchers and sickbeds;

7. Rechargeable internal Li-battery with large capacity; Stand-by time: >10hours;

8. Adopt the latest integrated metal gas path structure, saving more gas with better compliance;

9. Anti-seismic, waterproofed, unbreakable, anti-splashed;

10. Simple function, easy to operate, especially for first aid;

Technical PArameters:

• Ventilation mode: CMV
• Minute Volume: 3~20L/min
• Respiratory Rate: 5 ~ 40bpm
• Oxygen Concentration: Air Mix, No Air Mix
• over Pressure Relief: no more than 72hPa
• Working Time of Internal Li-battery: >10hours
• Indicators: Inspiration, Exhalation, Low Battery Voltage, Charge, Airway Pressure

Product Specification:

• Size dimension of.Mainframe: length * height * width 220*220*170mm
• Weight of mainframe: 3kg

Service Conditions:

• AC: 100V-240V.
• Gas Source: 0.28~0.6MPa (pressure) Medical Oxygen
• Gas Supply: Oxygen cylinder, Central oxygen supply.

Basic configuration:

Ventilator (with multifunctional handle), lung simulator, charger (optional multinational standards), headband, pressure-reducing valve (optional British/national standards), high pressure tubes, breathing circuits, mask.
