INTRODUCTION

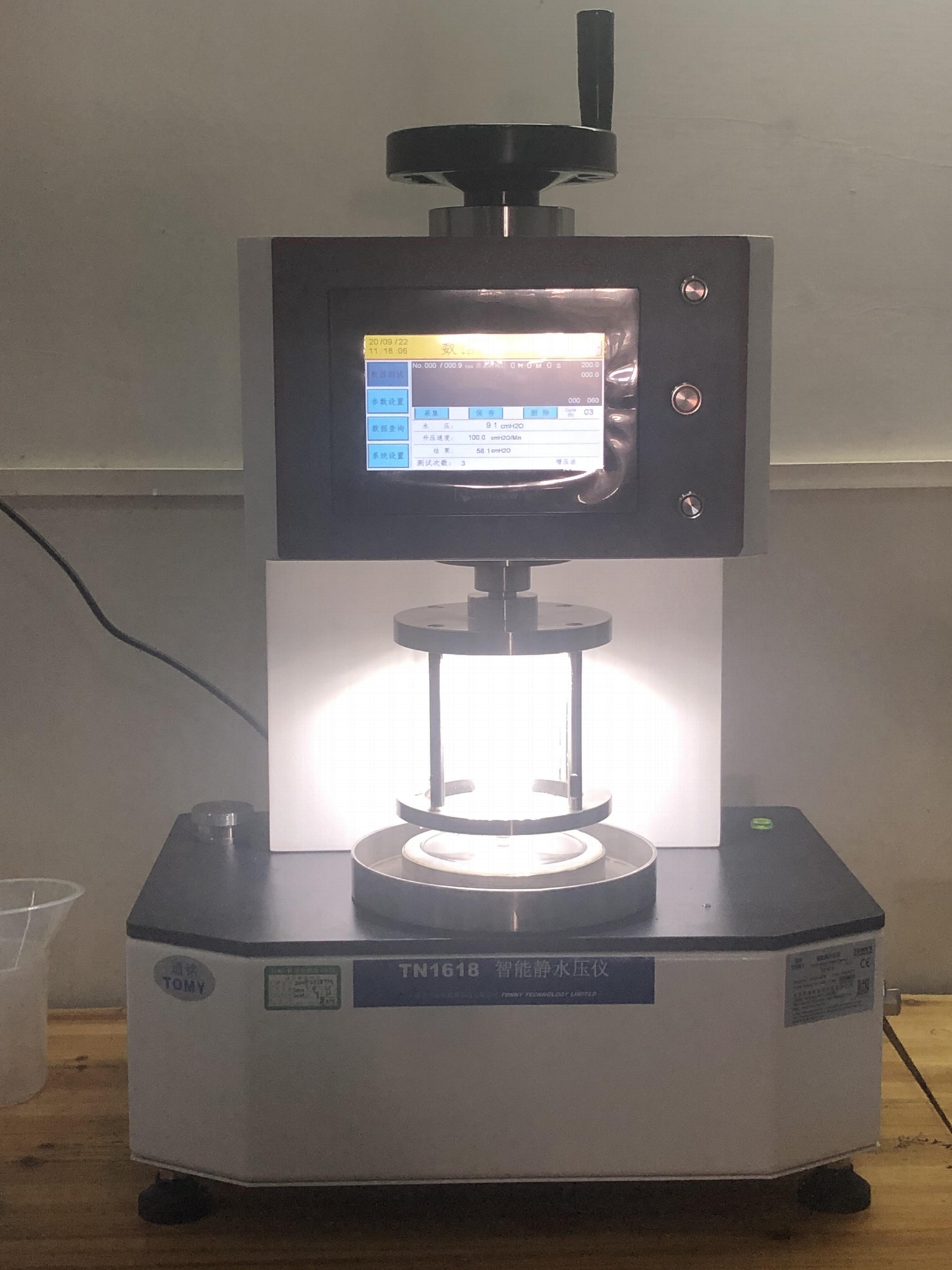

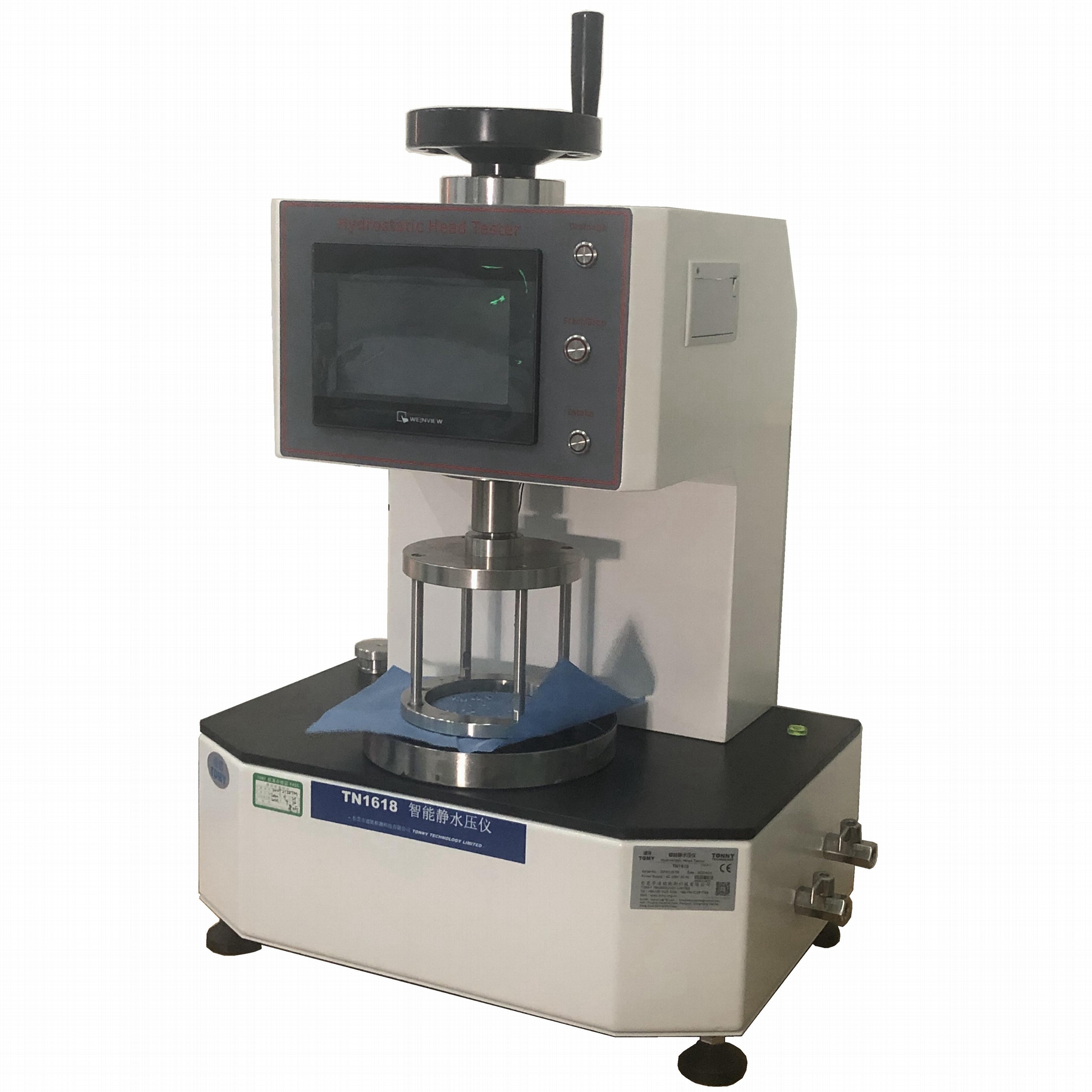

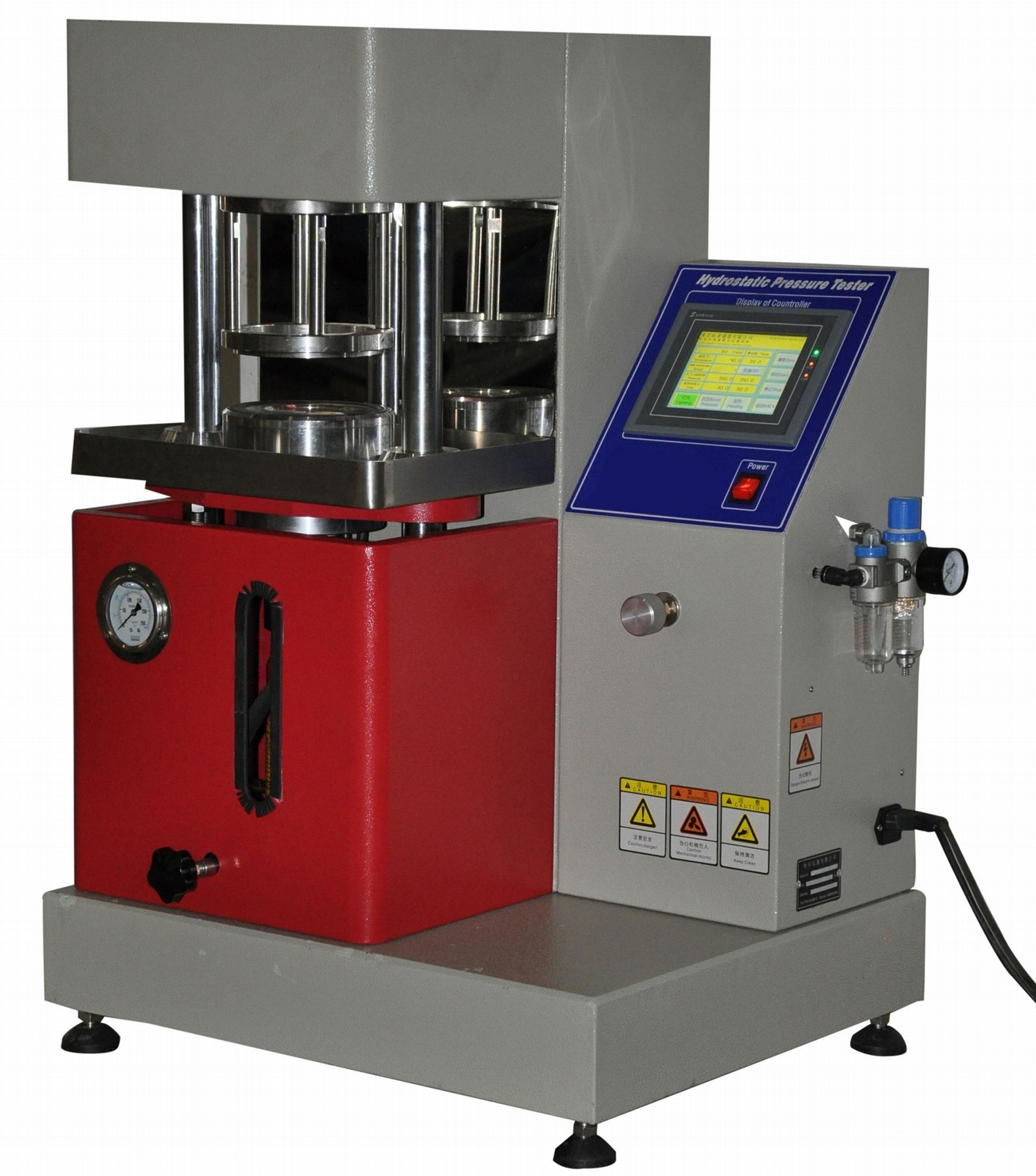

The h ydrostatic h ead tester accurately and swiftly determines the resistance of fabrics (coated , uncoated & non wovens )  to water penetration under pressure while firmly clamped in the test rig of standard area , by means of dynamic test method and static test method.
Used for testing the water permeability of compact fabrics , including moten spray cloth ,protective clothing , canvas , coated fabrics , cover cloth , rainproof clothing fabrics and geotextile materials , etc.
T ESTING MODE
1. Increasing pressure method .
2. Constant pressure method .
FEATURES AND BENEFITS
1.Large color touch screen in English and Chinese menu display,built-in micro printer,can print test results.
2.Controlled by microcomputer chip and two major testing functions (Increasing pressure method  and constant pressure method ).
3. Equipped with high-precision pressure sensors, accurate and stable test results ,with good repeatability.
4.Equipped with internal water tank, the rising rate of water pressure is stepless adjustable, and has functions such as effective prompt of keys and fault self-check.
T ECHNICAL PARAMETERS
1.Test range : 9.9  cm H 2 0 ～ 2000 cm H20 (200 kPa)
2.Test accuracy : ± 0. 1 %   F.S
3.Water pressure rising rate : 0 ～ 500 cm H 2 0/min
4.Rising rate accuracy : ±2%
5.Specimen area : 100 ±5 cm 2
6.Power supply : AC 220V , 50 /60 H z, 120   W
7. Weight  : 60  kg
8.D imension  : 55 × 45 × 70 c m(L×W×H )
S TANDARDS
AATCC 127 , ISO   811 ,EN 20811, GB/T   4744 ,GB 19082, DIN 53886 , JIS L1092 , FZ/T 01005

Our products are all certified by international authority,national metrolog inspection center, won praise from customers all over the world ,including SGS,ITS,BV,TUV Sud,TUV Rheinland,CTI,etc
