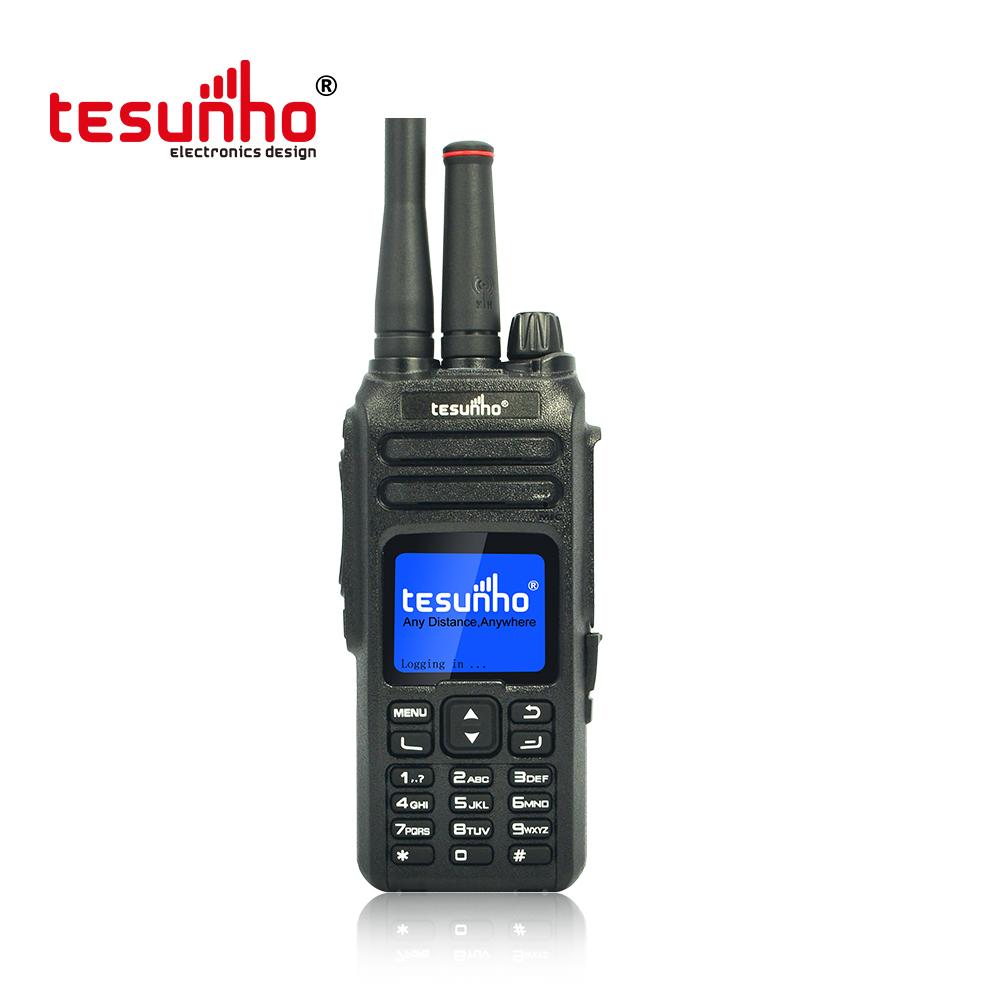

TH-680 is a dual working modes 2-way radios. It combines GSM WCDMA SIM Card IP radio and VHF /UHF analog walkie talkie in one piece. Help to achieve smooth over traditional radio to public network radio.

Main Features:

1. Analog UHF or VHF +4G network

2. Can realize mixed-mode communications

3. Setting Mode priority

4. Gateway（Repeater function）

a. Realize the communication between IP and analog radios.

b. solution to achieve Analog radios talking range unlimited.

5. SOS alarm

6. GPS location sharing with SOS

7. Support Group Call, P2P Call, Quick Call, Emergency Call

Application:

Railway，Airport，Security, Rescue, Harsh environment, Outdoor adventure

Army, Government, Police， Logistics，Taxi，Truck， Camping, Travelling, Big shopping mall, Big Hotel, Outdoor Events, etc.

Specifications：

Type	Parameter Item	Specification
Mechanical Properties	Model No.	TH-680
	Dimension	38(H)×58(W)×135(L)mm
	Weight	320g
	Working Temperature	-30℃ to + 75℃
Basic Parameter	Working Voltage	6.4V~8.4V (Standard 7.6V)
	Working Current	310mA @ UTMS 2100/900 280mA @ GSM 900
	Peak Current	1.8A
RF Parameter	LTE FDD(Have multiple versions of LTE Bands for different countries)	Band1: 2100MHz   Band3: 1800MHz Band7: 2600MHz   Band8: 900MHz Band20: 800MHz
	WCDMA	Band1 : 2100MHz       Band2 : 1900MHz OR Band8:  900MHz       Band5:  850MHz
	GSM	GSM/GPRS : 900/1800 MHz
	Maximum Output power	WCMDA 900/2100MHz : Power Class 3 (+ 24 dBm + 2.5dBm / -1.5 dBm); GSM/GPRS 850/900 MHz : Power Class 4 (+ 33 dBm + 2.5dBm / -0.5 dBm); GSM/GPRS 1800/1900 MHz : Power Class 1 (+ 30 dBm + 2.5dBm / -0.5 dBm);
	Receiving Sensitivity	WCDMA900: ≤ -108dBm; WCDMA2100: ≤ -109dBm; GSM 850/900/1800/1900 : ≤ -106dBm
GPS	GPS	GPS Positioning,1.57542GHz
	Sensitivity	Catch -144dBm, Track -159dBm
Technology Standard	Data Speed Rate	GSM CS : UL 9.6 Kbps / DL 9.6 Kbps GPRS: Multi-slot class 10 EDGE: Multi-slot class 12 WCDMA CS : UL 64 Kbps / DL 64 Kbps WCDMA PS : UL 384 Kbps / DL 384 Kbps
	Protocol	HSDPA / WCDMA / EDGE / GPRS / GSM
Analog Parameter	GENERAL
	Frequency Range	UHF : 400-480MHz  OR VHF : 136-174MHz or 240-260MHz
	Channel Number	199
	Channel Space	25 /12.5KHz
	Frequency Stability	±2.5 ppm
	TRANSMITTER
		Wide band	Narrow band
	Power Output	5W
	Modulation	16KΦF3E	11KΦF3E
	Spurious Emission	≤-36dBm	≤-36dBm
	Adjacent Channel Power	≥70dB	≥60dB
	RECEIVE
	RF Sensitivity  (12db SINAD)	0.20 μV	0.20 μV
	Adiacent Channel Selectivity	≥60dB	≥55dB
	Intermodulation Rejection	≥65dB	≥60dB
	Spurious Response	≥65dB	≥65dB



To see real product, please go to video link below:

 https://youtu.be/ltIic6MijW0

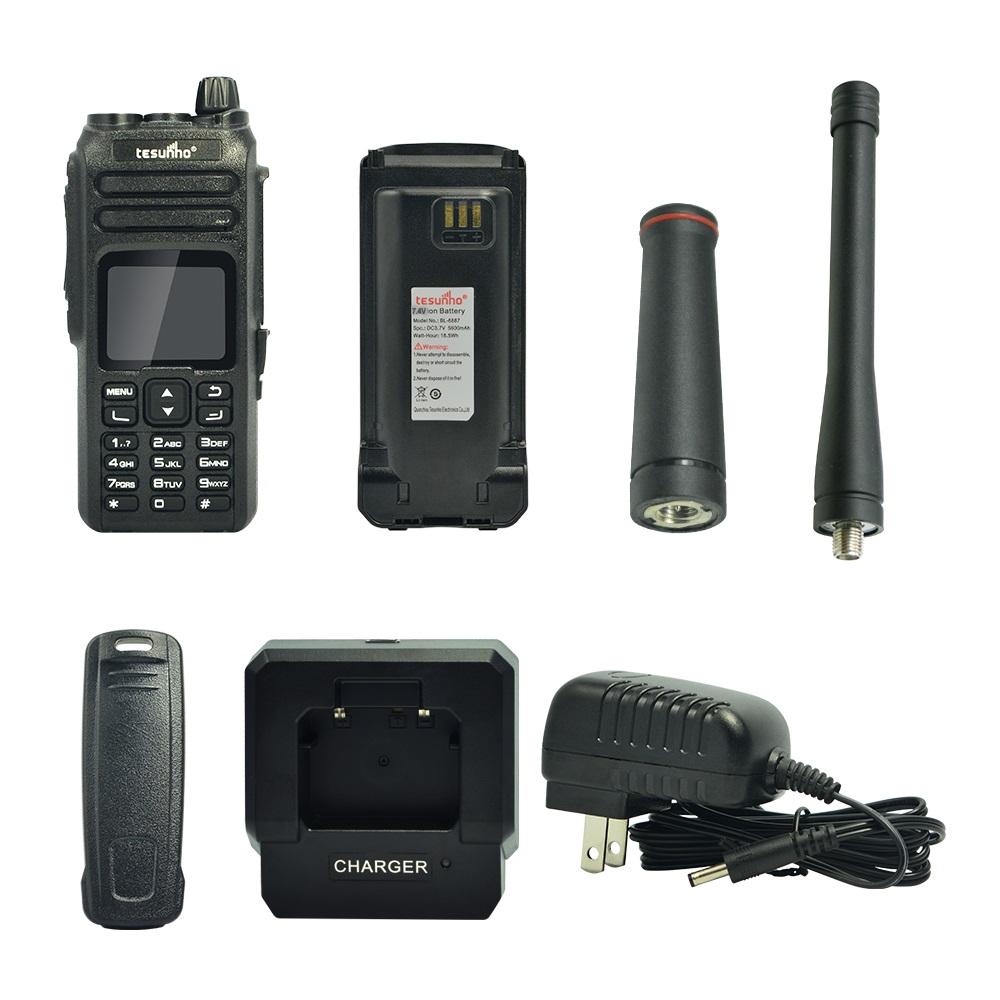

Packing Detals:

​DIMENSION & WEIGHT
Item	One Unit		Standard Carton			Delivery Method
	Size(cm)	Gross Weight(kg)	Quantity(pcs)	Size(cm)	Gross Weight(kg)
TH680	25.5*21.5*5.5	0.64	20	58*46*30	13.9	DHL/FedEx/TNT/EMS/By Air/By sea

Lead  Time

Item	Quantity(pcs)	Production   Lead Time
Walkie   talkie	1-50	1-3   days
	20-200	2-5   days
	200-500	2-10   days
	500-1000	5-21   days



Payment Method:

Trade Assurance  / Bank transfer / Western Union / MoneyGram / Paypal / L/C

Our Services:

Tesunho is aim to be the leading industrial walkie talkie solution supplier. So our service consists of 3 important parts:

1. Basic Warranty:

√ Replacement: Free new walkie talkie if it can not work at once it arrives.

√ Free maintenance and parts (without artificial faulty ) :

Item	Warranty
Main Unit	365 days
Battery and Charger	90 days
Antenna and other parts	None

√ Paid maintenance and parts: for artificial faulty

2. Brand OEM service:

√ partly OEM service

√ complete OEM service

3. Technical ODM service:

√ partly OEM service

√ complete OEM service

3. Technical ODM service:

We have abundant of experience on industrial needs customization
√ Rail way station communication device
√ Hotel inner wifi communication structure
√ Security Guard Patrol system with walkie talkie
√ Irrigation Patrol system
√ Intelligent Parking system
√ Logistics Management system

FAQ:

1.How POC Radio work?
A: It needed poc radio, sim card and real ptt account, contact us for more explaining
2.How to program radio?
A: It need real ptt account, real ptt account password, URL, Apn. Pls feel free to contact us, we will offer you programming instruction and guide one by one step.
3.What is your MOQ?
A: 2 piece for normal stock; different quantities for OEM or ODM,which is determined by different  task  workload. Kindly contact us for more information.
4.What is your payment terms?
A: 30% deposit in advance and 70% balance before shipment.
