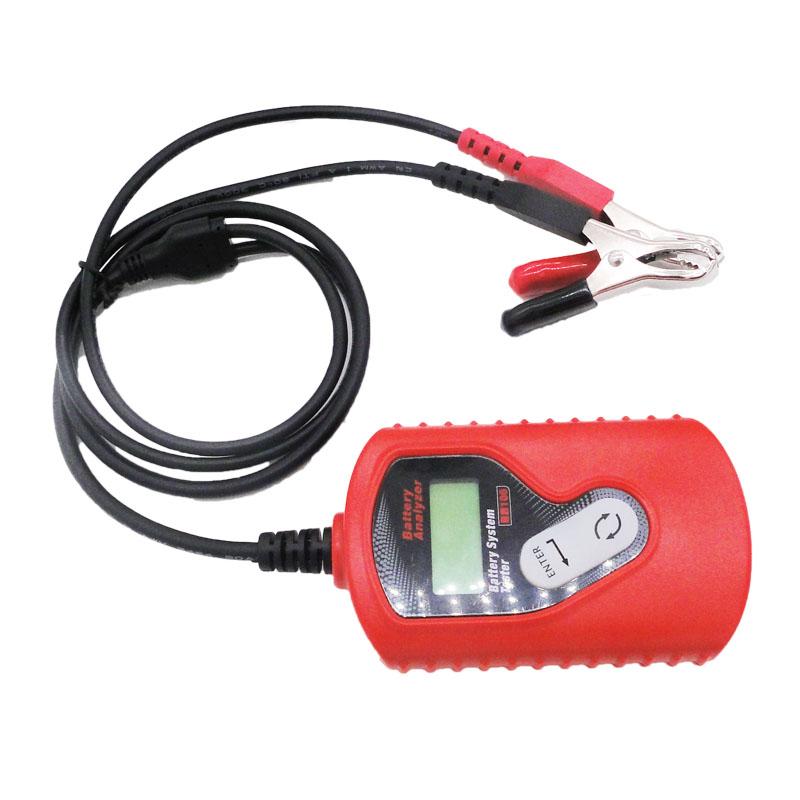

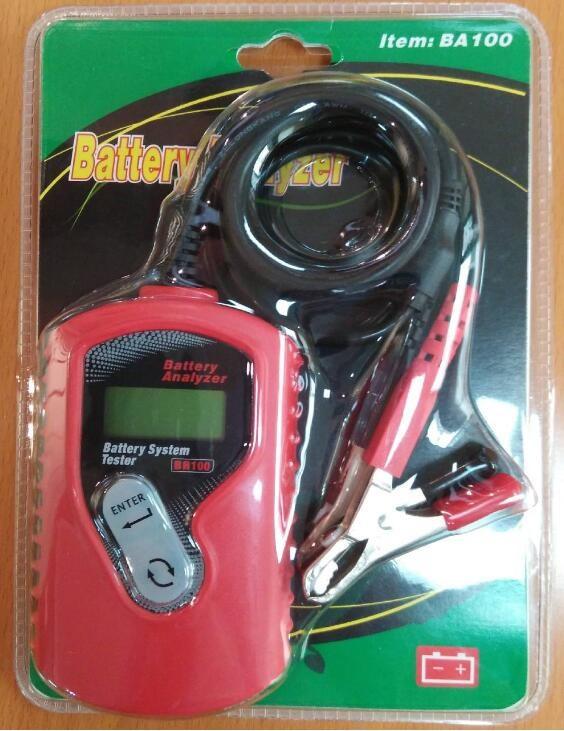

Digital Battery Analyser 12V

Spec:

1. Conductance correlates directly to the battery capacity.

2. Test batteries on and off the vehicle.

3. Accurate results in milliseconds.

4. Battery Life Analysis.

5. Analysis Result : Good or Replace.

6.Large easy to read LCD display.

7. Test results based on JIS, EN, DIN, SAE and IEC Standards.

8.  Language: English, German, Finnish, Dutch,Franch, Polish, Italian

Application:

Use to test a wide range of 12V batteries (Starting [SLI], Deep Cycled and Marine) of Wet (Flooded), VRLA or Maintenance Free (MF), Sealed Maintenance Free (SMF), Absorption Glass Mat (AGM) and GEL cell. The major battery standards JIS, SAE, EN, DIN and IEC are supported.

Operating Parameters:

System voltage: 12 Volts

Input voltage range: 9V~15V

Power requirements: No internal batteries required. Power on when hooked up during testing.

Testing range: 100 ~ 1700 CCA, 100 ~ 1000 DIN, 100 ~ 1000 IEC, 100 ~ 1700 EN
