Zhuoji gem cutting surface Angle batch automatic grinding and polishing machine CNC machine

No. 810502238 Model ZJ-80M

Zhuoji Zhuoji CNC cutting surface machine referred to as Angle machine, is a computer-controlled faceted gem automatic processing equipment, processing 2mm standard circle can be processed 60 pieces, processing more than 3mm standard circle can be processed 20 pieces.(with manipulator each person can process 50,000 pieces per day). Surface cutting machine by grinding and polishing machine, stone unit.

Sand plate by sand plate motor drive, the Angle of the gem by the pendulum Angle of stepper motor and integral lifting step motor with complete, all gems Angle from the Angle of stepper motor to drive the LvPai screw, screw drive the worm gear ShiShi rotation, in order to raise the processing quality of stones, LvPai added a moving back and forth in the center of the sand plate of stepper motor.

High processing efficiency, an automaton can produce 60 workpieces in 10 minutes.

Suitable for: corundum, spinel, ruby, turquoise, olivine, topaz/topaz, sapphire, tourmaline/tourmaline, garnet, agate, amber, tiger's eye, zircon

Suitable shape: diamond shape, egg shape, pear shape, turtle shape, horse eye shape, heart shape, round, square, square grass. Pillow shaped. Straight octagon. Long star anise.

Purpose: Used for stone surface cutting, polishing

Angle size and diameter range of processing gems: 0.75mm-30mm

Applicable stone: colored gems, zircon, glass, crystal, ruby, semi-precious stones,

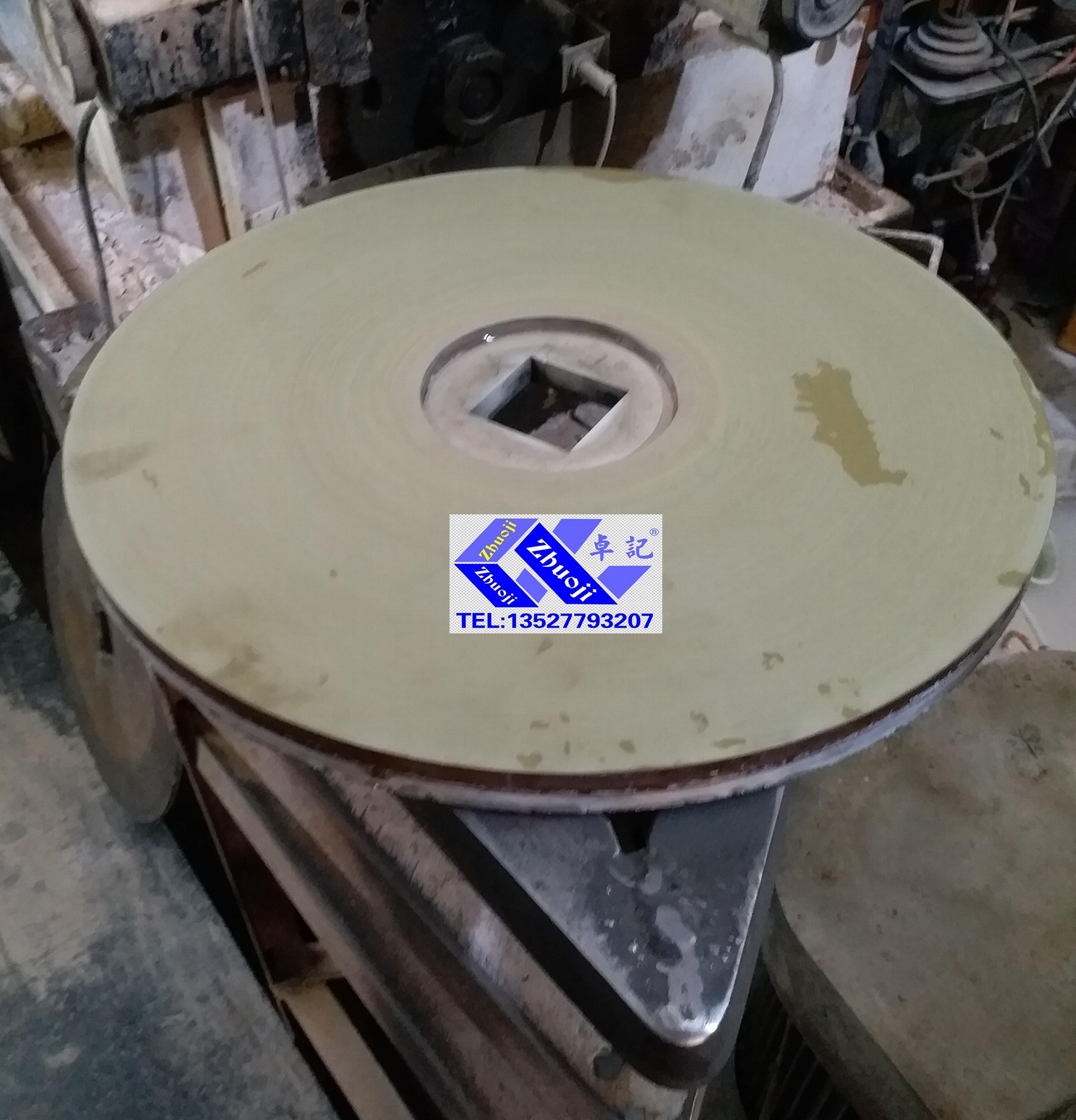

Suitable for the diameter of 400mm, 620mm, 750mm sand disc

Length of aluminum row; 370MM-520MM

Stepper motor

Random configuration: control box

Technical parameters:

Input voltage :/AC380V

Motor power :/ 5.5KW

Speed :1500 r/min

Dimensions :/ 1200 mmX1200mmX1350mm

Guangdong sea venture zhuo gems machinery factory, founded in 1997, is set research and development, production, sales as one of the gems machinery suppliers, the company introduced from home and abroad a large number of professional production tools and advanced technology, after ten years' time and careful design and manufacturing, has now developed into a mature production, processing, sales and after-sales service system of the enterprise.
Keep improving the quality of our products, so that our products have won the industry unanimous praise.The products are sold to all over the country, Europe, America, southeast Asia and other countries and regions, and become a number of important suppliers of gemstone processing bases, deeply recognized by domestic and foreign users.Keep improving the quality of our products, so that our products have won the industry unanimous praise. The products are sold to all over the country, Europe, America, southeast Asia and other countries and regions, and become a number of important suppliers of gemstone processing bases, deeply recognized by domestic and foreign users     whatspp: + 8613527793207
