Multi copper wire drawing machine for 16 wires
| Model: | - |
|---|---|
| Brand: | - |
| Origin: | - |
| Category: | Industrial Supplies / Electrical & Electronic Product Equipment |
| Label: | - |
| Price: |
US $300000
/ set
|
| Min. Order: | 1 set |
Product Description

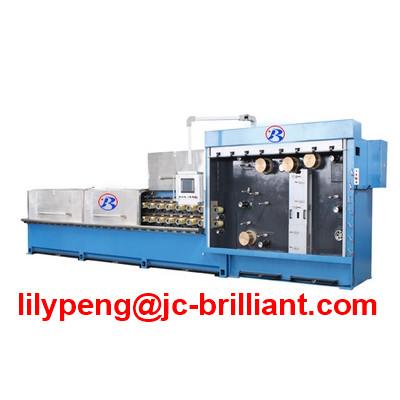

Multi Wire Drawing Machine for 16 Copper Wires
This type copper wire drawing machine is used to draw and anneal 16 copper wire one time, take 8 wires in each spool and can twist the wire directly in next step, it apply advanced technology design.
MACHINE DETAILS:
|
No. |
Name |
Data |
|
|
1 |
Inlet diameter |
16×Φ1.8-Φ2.6 |
mm |
|
2 |
Outlet diameter |
16×Φ0.45-Φ0.92 |
mm |
|
3 |
Max. Drawing times |
21 |
times |
|
4 |
Die size |
Φ25*12 |
mm |
|
5 |
Ductility |
1~14 dies 1.26 15~20 dies 1.205 |
|
|
6 |
Max drawing speed |
25 |
m/s |
|
7 |
Main motor power |
250 |
KW |
|
8 |
Fix speed motor power |
75 |
KW |
|
9 |
Gear pump motor power |
4 |
KW |
|
10 |
Drawing capstan diameter |
Φ100 |
mm |
|
11 |
Drawing oil |
45 |
M³/h |
|
12 |
Pressure for cooling water |
≥0.2 |
Mpa |
