Vertical solar LED street light

Vertical solar LED street light
Model:Q100
Brand:Auroras
Origin:Made In China
Category:Consumer Electronics & Lighting / Lighting / Outdoor Lighting
Label:vertical solar led , solar street light , led street light
Price: US $500 / pc
Min. Order:1 pc

Product Description

What is vertical solar street light?

Vertical solar LED street light pole is an great innovation with latest technology. It adopts the vertical solar modules by surrounding the pole instead of regular solar panel installed on top.  Comparing with traditional solar led street light, it has a very cosmetic appearance in the same look as traidional street light.

Each vertical solar module adopts 6 pieces of slim mono-crystalline solar panel with high efficiency up to 21.2% and more than 20 years lifetime. Each slim solar panel are 18V/36V and 6 pieces slim solars are connected together in parallel connection.  Each vertical solar module contains two modules as master module which has 2 pairs of MC4 connectors and sub-module with 1 pair of MC4 connectors.  As the big part of vertical solar led street light, the vertical solar module is designed based on the modular conception which is supposed to be installed on any shape and new or old poles as customers requests.  And customer can freely combine different powers of solar panel according to the power consumption by series connection. for example 280W,300W,420W,500W,700W etc.

APPLICATIONS

* Replace regular solar panel for street light
* Retrofit system for 220V led street light
* Aesthetic Solar Street Lighting for goverment
* Street Lighting for windy area or thyphoon
* To power up solar lights for security, exit;

Retrofit of traditional street lights

There are huge numbers of traditional street light in everywhere, and these light bulb are metal halide or halogen, all of those light bulb are old technology and power consumptions are very high while the lighting efficiency is very low. As the energy shortage globally are getting worse, all of these old traditional lights are supposed to be retrofited by led and solar energy technology in order to reduce the energy consumption to build up a green earth.
Auroras's vertical solar solution is an perfect answer to meet this requirements. It can retrofit the old lights without replacing the poles, and no need to dig holes on ground for battery or attach the battery box on pole if adopt all in two solar light heads. It reduce the cost of retrofit work in labor cost, pole cost etc greatly and keep light pole almost same appearance as before.





Key advantages

ANTI-SNOW COVERING

Snow never accumulated on vertical solar panel like using regular solar panel. It guarantee the solar street light always keep functional even in very snowy condition. Very useful and helpful for countries like Canada



MODULAR DESIGN

It can be easily assembled at site freely and easily, no matter fix it to new pole uninstalled or existing poles installed on concrete already. 200W ~ 700W are available by multi modules in series connection



ANTI-HAIL SMASH

Regular solar panel will be totally out of function once damaged by hail while hail will never approach and damage solar panels installed in vertical. It avoid the risk of broken and reduce the maintainence cost.



EASY CLEANING

Comparing with installing regular solar panel on top of pole. It does not need to use a lift for a worker to clean the solar panel. Worker can stand on ground and using brush to clean it easily with less cost.



STRONG WIND RESISTANT

It greatly reduce the wind pressure and strength the performance of wind resistant of pole. Never worrying about poles blown off , it suitable for such windy areas like coast, or islands installation



360 degree FULL DAY CHARGING

6 pieces of slim solar panels are wrapping the pole from 360 degree. It ensure power can be generateed continuously from morning till dawn. It specially can reach to higher efficiency in low latitude areas.



Key Specification of Vertical Solar Module

Model number Q100 Q140
P.max 100 Watts 140 Watts
Vmp 18V 18V     /   36V
Imp 5.56A 7.78A  /   3.89A
Dimension 1160*228*200*mm 1560*228*200mm
N.G / G.W 14.70 / 16.80 kg 21.50 /22.80 kg
Cable & connector 2.5mm2 with MC4
Solar cell efficiency 20.50%
Solar cell type MONO cell
Structure material Aluminium alloy
Working temp. -30℃~+70℃
Warranty 5 years
Life time >20 years
Patented Yes
Certificates CE, ROHS, IP65...

vertical solar led street light

PV Dimension

Configuration Recommended of Vertical Solar Street Light

30w vertical solar street light

30W

Order Code V03020005
Light power 30W
Luminous flux >4,200lm
Battery pack 12.8V 307WH
Vertical PV 18V 200W
PV module 2pcs Q100
Pole height 5 meters
Lifetime >8 years
Warranty 3 Years

50w vertical street light

50W

Order Code V05028006
Light power 50 Watts
Luminous flux >6,500lm
Battery pack 12.8V 460WH
Vertical PV 5.56A
PV module 2pcs Q140
Pole height 6 meters
Lifetime >8 years
Warranty 3 years

dual solar light head vertical street light

30W*2 -Dual

Order Code V030400070
Light power 30 Watts 2pcs
Luminous flux >4,200lm
Battery pack 307WH 2pcs
Vertical PV 400W
PV module 4pcs Q100
Pole height 7 meters
Lifetime >8 years
Warranty 3 years

80w 8m vertical solar led street light

80W

Order Code V08042008
Light power 80 Watts
Luminous flux >10,800lm
Battery pack 768WH
Vertical PV 36V 420W
PV module 3pcs Q140
Pole height 8 meters
Lifetime >8 years
Warranty 3 years

10m vertical solar street light 100w

100W

Order Code V10056010
Light power 100 Watts
Luminous flux >13,800lm
Battery pack 1075WH
Vertical PV 5.56A
DPV module 4pcs Q140
Pole height 10 meters
Lifetime >8 years
Warranty 3 years

dual heads vertical solar led street light

60W*2 Dual

Order Code V06060010-D
Light power 60 Watts 2pcs
Luminous flux >8,800lm
Battery pack 615WH 2pcs
Vertical PV 5.56A
PV module 6pcs Q100
Pole height 10 meters
Lifetime >8 years
Warranty 3 years

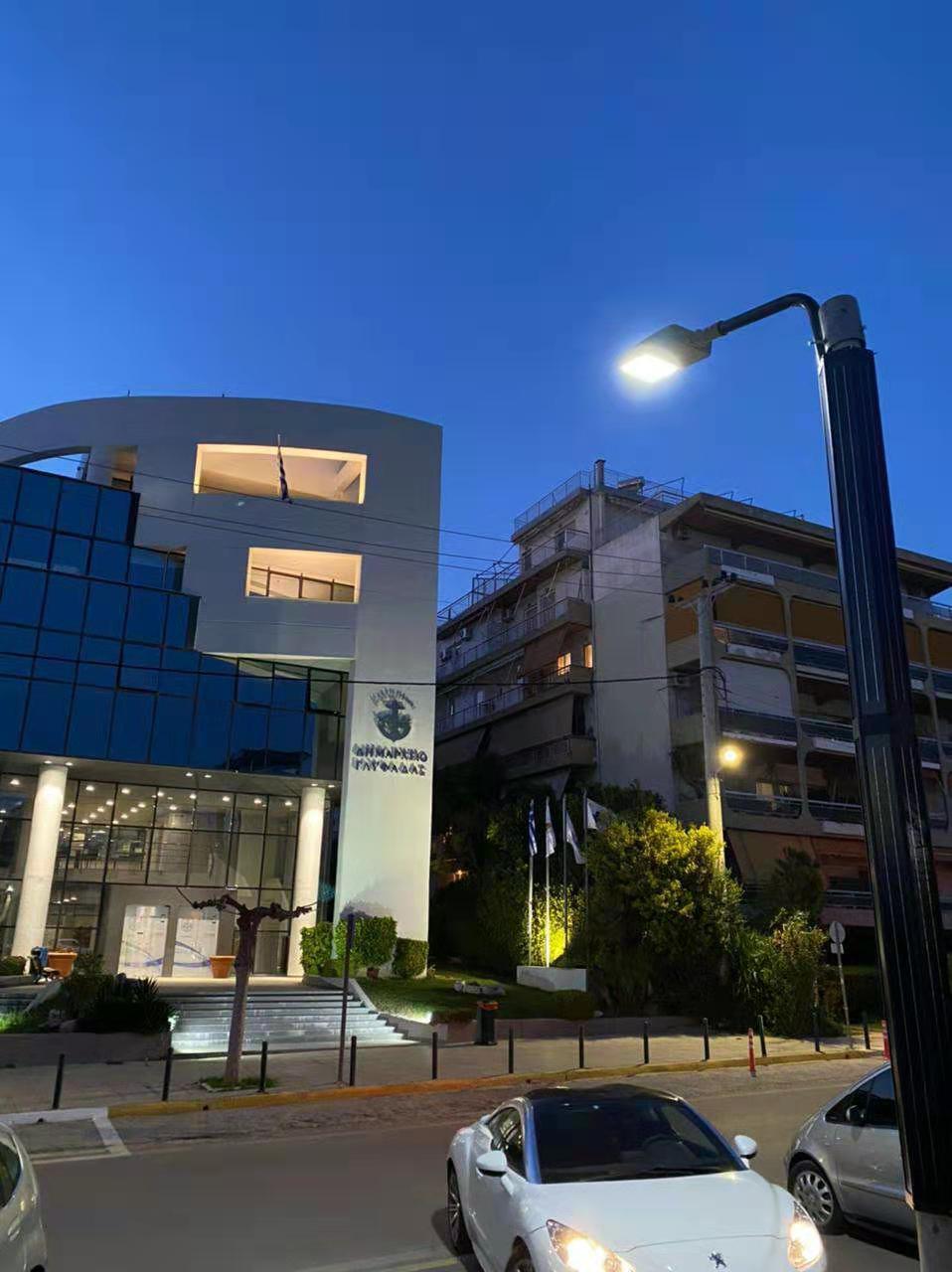

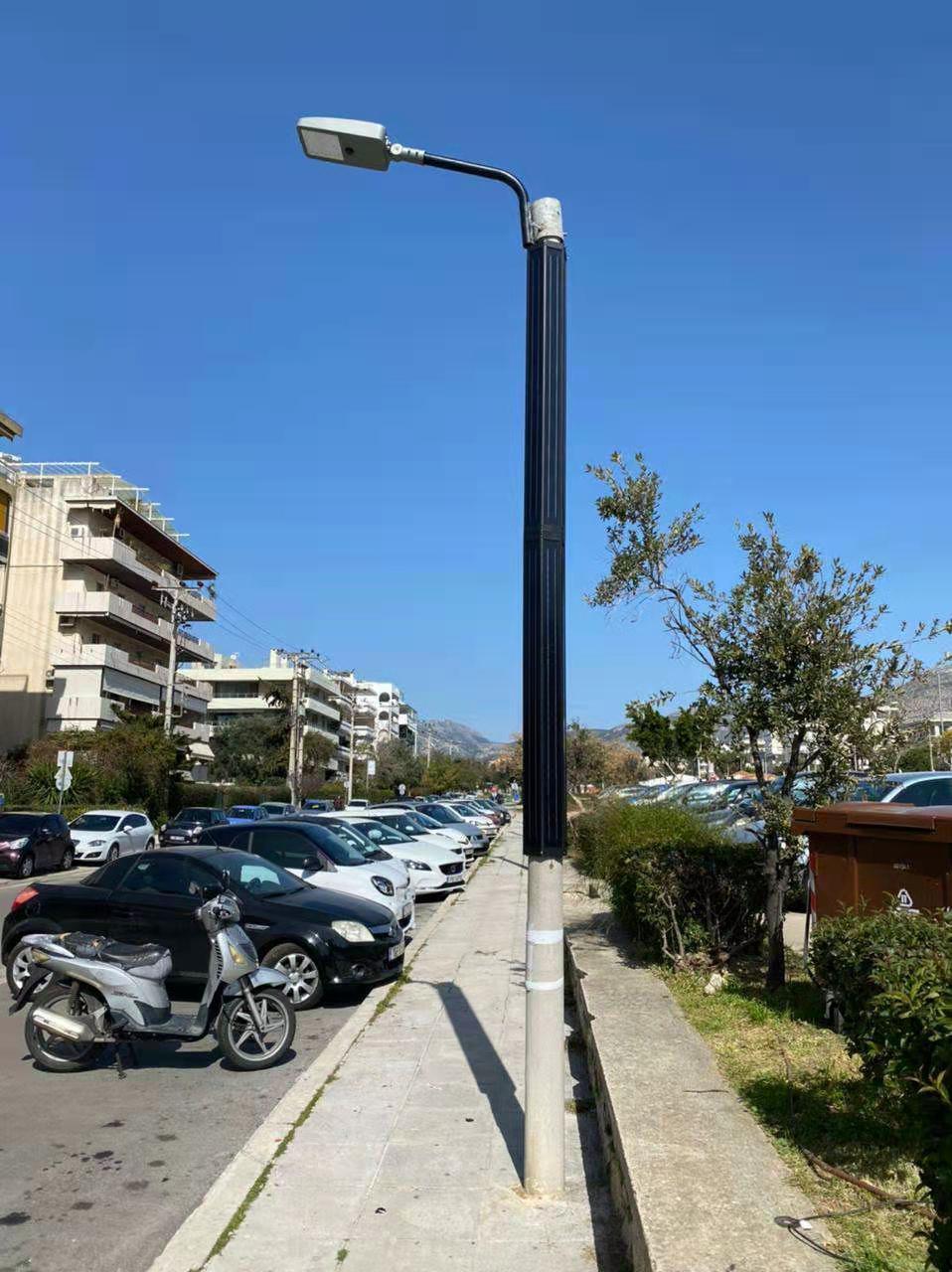

Project Reference

vertical solar led street light

vertical solar led street light pole

vertical solar pole light

vertical solar pole light

Marketing Feedback

As an memorable innovation in solar led street light industry, This modular vertical solar module has a huge demand for many potentical applications, for example retrofit of traditional street light,traffic light and signals, Auroras vertical solar light are getting more and more attention globally from many valuable customers.

Intellectual Property

The designs of vertical solar module are registered in China patent database. Any copy or imitation will be be held accountable with being infringement.Any attempt to purchase from the imitation factory may face confiscation by the customs and pursue related losses.



For more details,please feel free to contact us:

Ms.Summer

Email:sales07@auroraslighting.com

Whatsapp/Wechat:+86-13652719064

Skype:summer.hhj



Payment Terms:TT,paypal,wesetern Union,L/C
