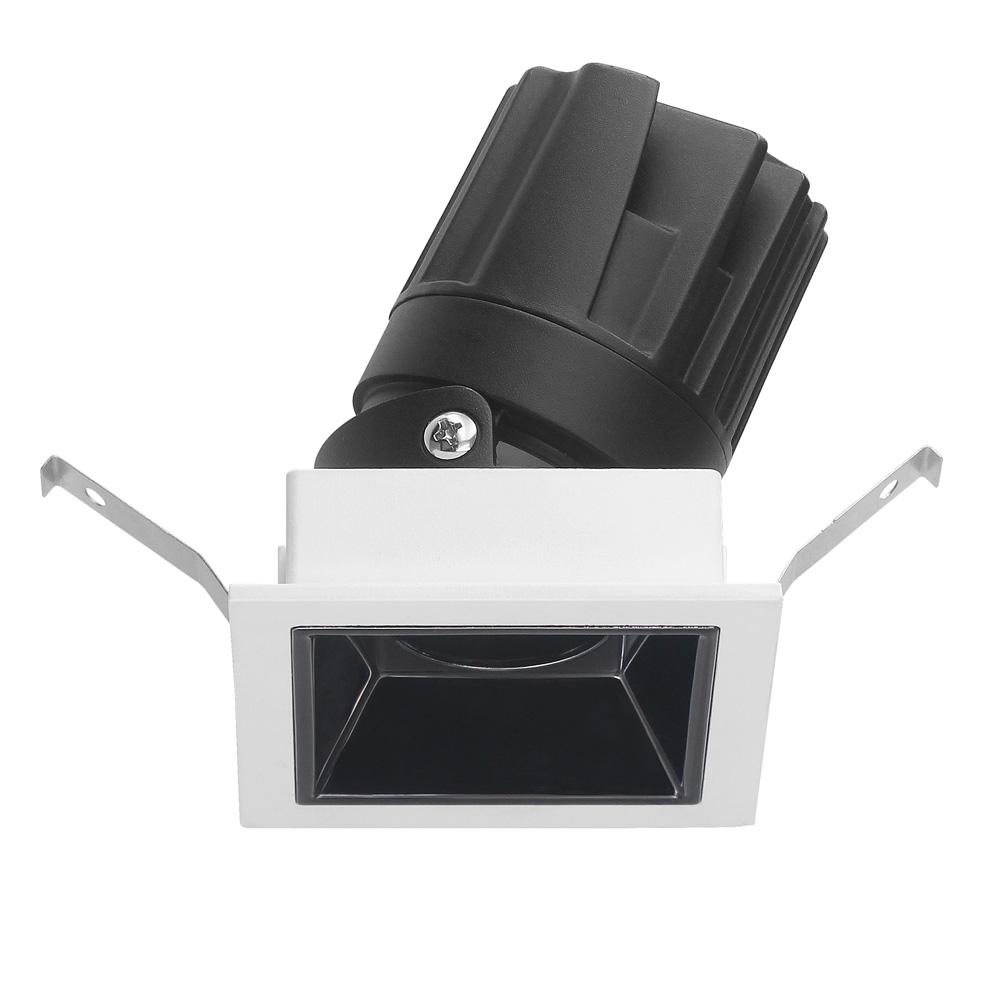

COB Square 5W modular led downlight

COB Square 5W modular led downlight
Model:LL-DL656581-5W-
Brand:LOWCLED
Origin:Made In China
Category:Consumer Electronics & Lighting / Lighting / Interior Lighting
Label:COB downlight , downlighting , led downlamp
Price: -
Min. Order:5 pc

Product Description

Features:

  • Flexible design, one light module can work with different trim, you can change the trim and light module quickly without tools
  • CRI: 80+ ,90+(3000K/4000K/5000K)
  • LED brand: Citizen, Bridgelux, CREE, Luminus
  • Die-casting aluminum housing
  • Good quality driver, flicker-free, PF>0.95
  • High luminous efficiency: 70-100lm/W @CRI80+
  • Wattage: 5W, 8W, 10W, 12W, 15W, 20W and 25W
  • The downlight are flexible design, one light module can work with different trim, you can change the trim and light module quickly without tools
  • Modular hotel LED downlight, the most important member of modular lighting,
  • has come to markets. With modular lighting solution, it will be much flexible for your stock and projects.From now on, you can buy the whole lamps, you can buy trim, light module, driver separately and quick assemble or replace some accessories within 5 seconds, they will help you save 50% stock at least and meet clients’ various special requirements in shortest time.
  • The light module can be single color, tunable white, DTW, with different light module can give different light output, different color, different CRI, different beam angle and lumen efficiency etc. With round and square shape, trim and trimless design, you can easily get different installation and lighting output, our patent design can give you very low UGR output,
  • It is also the best solution for after sales service, if you want to change which item, any one can do it quickly, no need electrician, can save a lot of time and money.



Specification:

Model LL-DL656581-5W-2S
Power(±10%) 5W

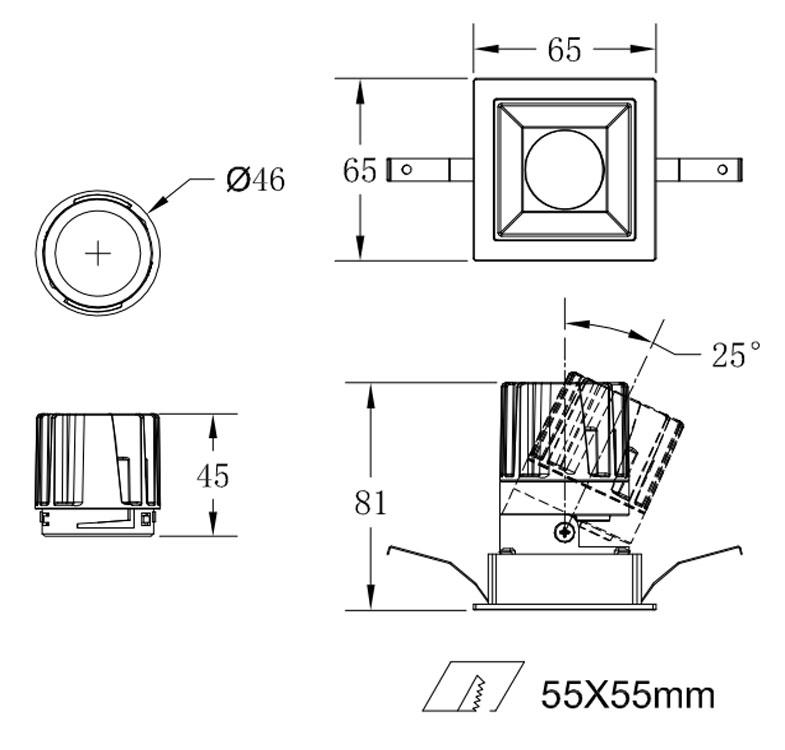

Product Dimension 65X65XH81mm
Cut out 55-60mm
Input AC200-240V / AC90-130V
Dimmable DALI, TRIAC, O/1-10V, DMX, RF, ZigBee
Luminous Efficacy 70-100lm/W @CRI82 (whole lamp)
PF >0.9
LED Type Citizen, Cree, Bridgelux, luminus
LED Q‘ty COB
CCT(K) 2700K/3000K/4000K/5000K/6000K
CIR(Ra) 80+,90+
Beam angle 15° / 24° / 36° / 60°
Working Temperature -20℃~45℃
Storage Temperature -20℃~45℃
Adjustable Fixed and adjustable
Housing color White
IP Grade IP20
Body Materials Aluminum Alloy + PC
Certificate CE, Rohs

Application:

Recessed lighting, shelf lighting, ceiling /wall coves, Cabinet and under counter lighting, office work station,Back lighting, step lighting light boxes, Merchandising, exhibition stands,and panels etc.
