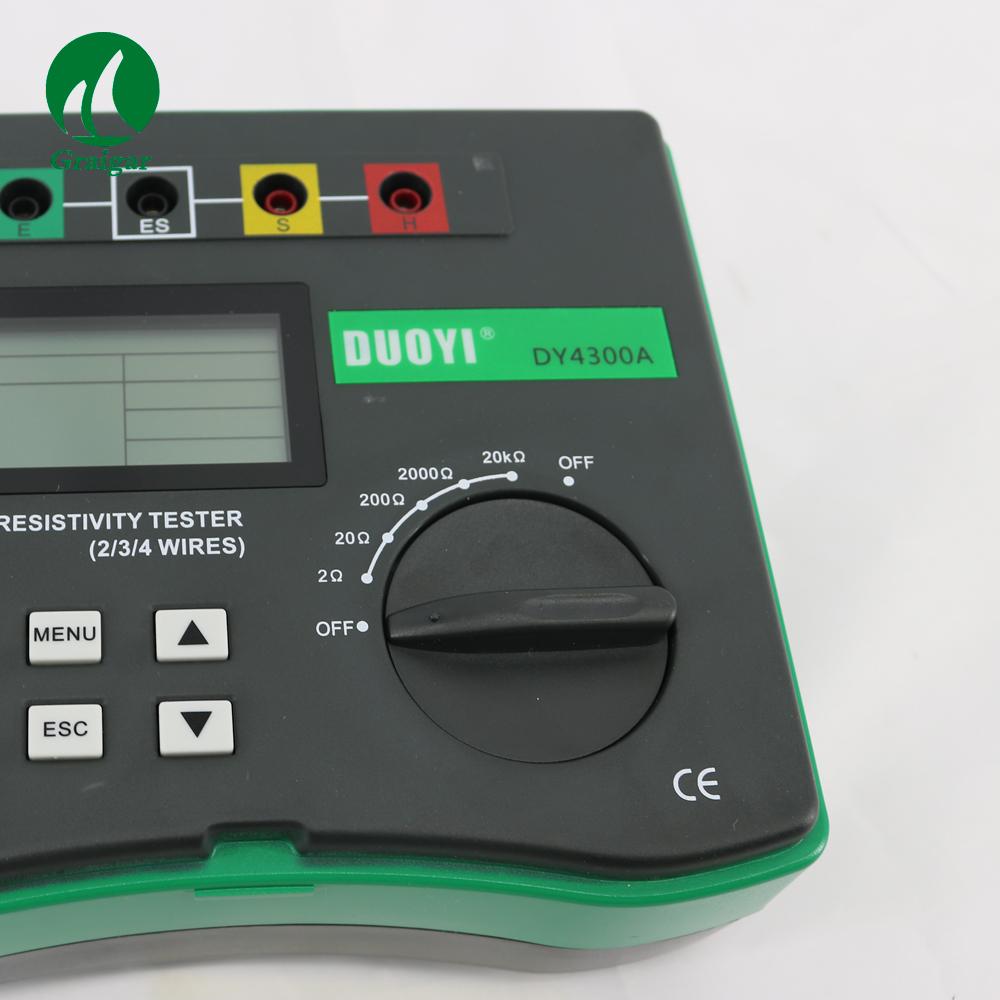

DY4300A  2/ 3/ 4-Wire Digital Earth Resistance Tester

Earth Resistance Measurement & Series Interference Voltage Measurement & Soil Resistivity Measurement  & Frequency Fst Measurement

Powerful, high precision and wide application range.

Applicable range: Testing earth resistance on power distribution lines, in-house wiring system and electrical appliances.

Technology:Stable measurement results can be obtained under a noisy environment by introducing the FFT (Fast Fourier Transform) technology.

1.Overview:

4 pole earth resistance measurement 0 to 20.99kΩ with min. resolution 0.01Ω

Auto ranging soil resistivity measurement 0 to 395.6kΩm

Series interference voltage Ust(AC only) 0~30Vrms

Measures frequency 400~500Hz

Measureing Voltage Um optional/auto-selected 10Vrms 94Hz, 105Hz, 111Hz, 128Hz

Test current maximum 10mA

Advance filtering method based on FFT(fast fourier transform) reduces noise interference

Compensation for residual resistance Rk

Data Memory 1000 sets

Conforms to CATIV 150V, CATIII 300V
