High efficiency rotary dry and wet drum sand screening machine

High efficiency rotary dry and wet drum sand screening machine
Model:TDGS-2080
Brand:TONGDA
Origin:Made In China
Category:Industrial Supplies / Animal Husbandry Equipment
Label:screening machine , sieving machine , classificator
Price: US $4700 / pc
Min. Order:1 pc

Product Description

Product introduction:

The rotary screening machine is a new type of self-cleaning screen special equipment after the electric vibrating screener and the ordinary network type roller screen produced by the domestic companies.It is widely applicable to sieving of various solid materials with particle size less than 300mm.It has many characteristics such as high screening efficiency,low noise,small amount of dust,long service life,less maintenance,and its screening capacity is 1t/h-20t/h.

Performance characteristics:

1.High screening efficiency.Because the equipment has a plate cleaning mechanism, it can never block the screen, thus improving the screening efficiency of the equipment.

2.Good working environment.The entire screening mechanism is designed in the sealed dust cover, completely eliminating the dust flying phenomenon in the screening and improving the working environment.

3.Low noise of the equipment.During operation, the noise generated by the material and the rotating screen is completely isolated by the sealed dust cover, which reduces equipment noise.

4.Convenient maintenance.The equipment seals the equipment observation window on both sides of the dust cover, and the staff can observe the operation of the equipment at any time during work.

5.Long service life.The equipment screen is composed of several annular flat steels, and its cross-sectional area is much larger than the screen cross-sectional area of other separation equipment screens.

Working principle:

The self-clearing cage drum screening machine performs reasonable rotation of the equipment center separation cylinder through the gearbox type deceleration system. The center separation cylinder is a screen composed of several annular flat steel rings. The center separation cylinder is installed with the ground plane. In the inclined state, the material enters the cylinder net from the upper end of the central separation cylinder during the working process. During the rotation of the separation cylinder, the fine material is separated from the top to the bottom through the screen interval composed of the annular flat steel, and the coarse material is separated from the lower end of the separation cylinder. Drain into the pulverizer. The device is provided with a plate type automatic cleaning mechanism. During the separation process, the screen body is continuously "combed" by the cleaning mechanism through the relative movement of the cleaning mechanism and the sieve body, so that the sieve body is always cleaned throughout the working process. It will not affect the screening efficiency due to the clogging of the screen.

Payment Terms:TT/LC/DP/DA

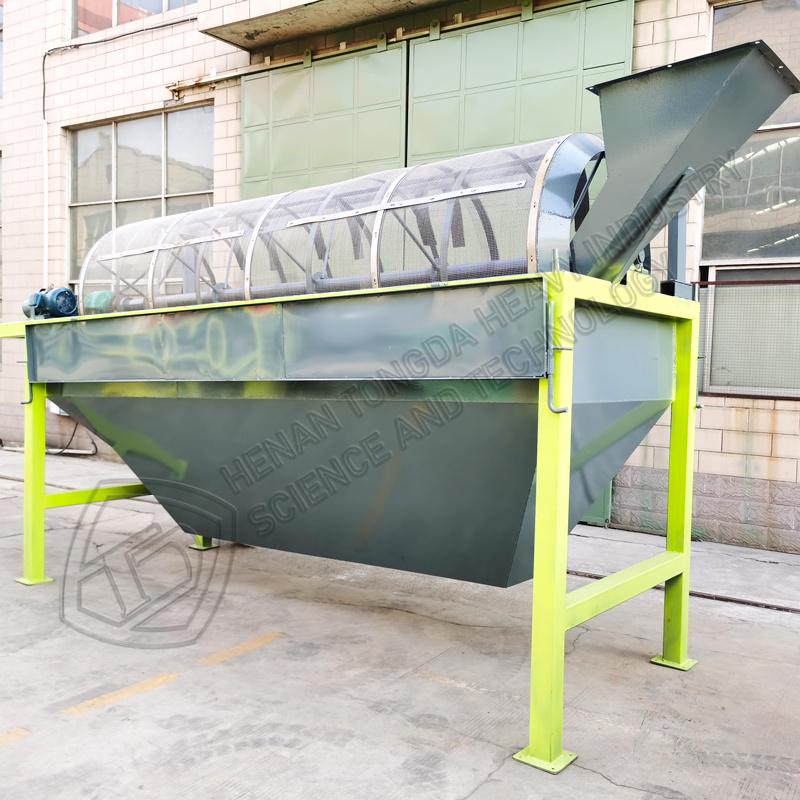

High efficiency rotary dry and wet drum sand screening machine  1High efficiency rotary dry and wet drum sand screening machine  2High efficiency rotary dry and wet drum sand screening machine  3High efficiency rotary dry and wet drum sand screening machine  4High efficiency rotary dry and wet drum sand screening machine  5
