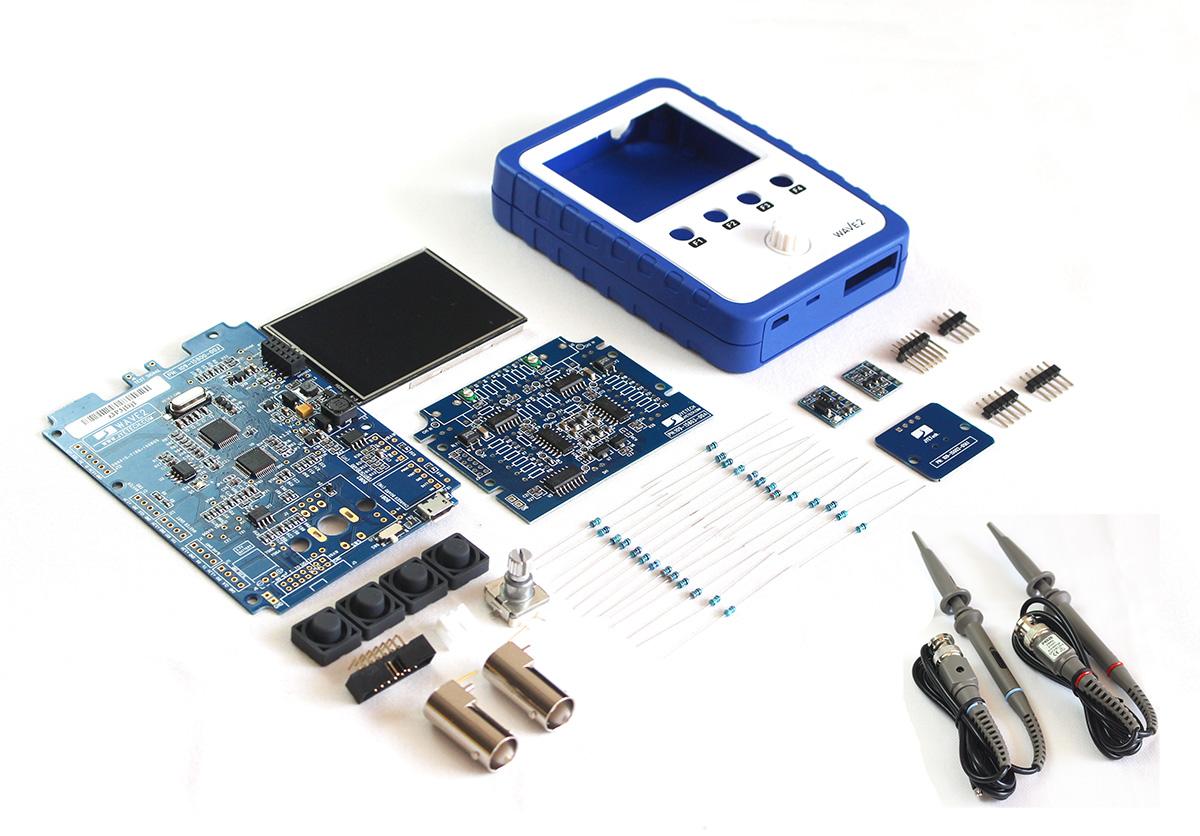

WAVE2 2-Channel Portable Oscilloscope DIY Kit

Highlights of WAVE2:

• No. of Channels: 2
• Bandwidth: 0 – 200KHz per channel
• Sensitivity range: 5mV/DIV – 20V/DIV (using x1 probe)
• Maximum input voltage: 50Vpk (using x1 probe)
• Maximum real time sampling rate: 1MS/s
• Time Base range 10us/DIV – 500s/DIV
• X-Y Display Feature: Yes
• Built-in 0 – 20KHz (sine) dual channel DDS function generator
• Display Resolution: 320 x 240 Color display
• Display Size: 2.4″
• Touch panel: Yes
• Battery or USB powered (battery not included in DIY Kit)
• Fully contrallable via serial connection

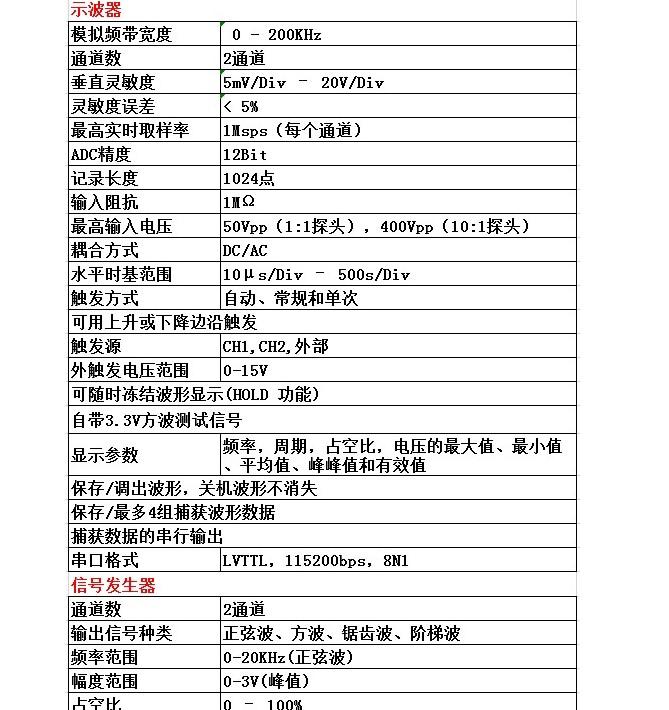

Specification

General

• 2.4” 320x240 color display
• Touch panel operation
• Y-X mode available
• Built-in 2-channel DDS function generator
• Light weight and portable

Vertical

• Number of Channel: 2
• Analog Bandwidth: DC – 200KHz
• Sensitivity: 5mV/Div - 20V/Div (with x1 probe)
• Sensitivity error: < 5%
• Resolution: 12-bit
• Input Impedance: 1M ohm / 25pF
• Maximum Input Voltage: 50Vpk
• Coupling: DC, AC

Horizontal

• Max Real-time Sampling Rate: 1Msps (per channel)
• Timebase: 10us/Div - 500s/Div
• Record Length: 1024 points

Trigger

• Trigger Modes: Auto, Normal, Single
• Trigger Types: Rising/falling edge
• Trigger Position: 1/2 of buffer size
• Trigger Source: Ch1, Ch2, External
• Maximum external trigger voltage: 15V
• External trigger threshold: LVTTL

Function Generator

• Number of channel: 2
• Waveform type: Sine, Square, Saw-tooth, Stair
• Frequency range: DC – 20KHz (Sine)
• Amplitude range: 0 – 3V (peak value)
• Offset: 0V or +3.3V
• Duty Cycle: 0 – 100%
• Phase: -360 – 360 degree

Power Supply

• Powered on 3.7V Li-ion battery or USB
• Current consumption: ~300mA @ 3.7 – 5V
• Internal batter charger (optional)
• Automatic power off on battery
• Battery running time: Appr. 3hrs (when fully charged)

Other Features

• Y-X display mode
• On-screen measurement display
• Save / recall up to 4 captures
• Serial output of captured data
• Serial port format: LVTTL, 115200bps, 8N1
• Built-in 1KHz/3.3V test signal
• [NEW] Complete serial control interface

Physical

• Dimension: 115x72x30mm
• Weight: 0.29KG (excluding battery and probes)
