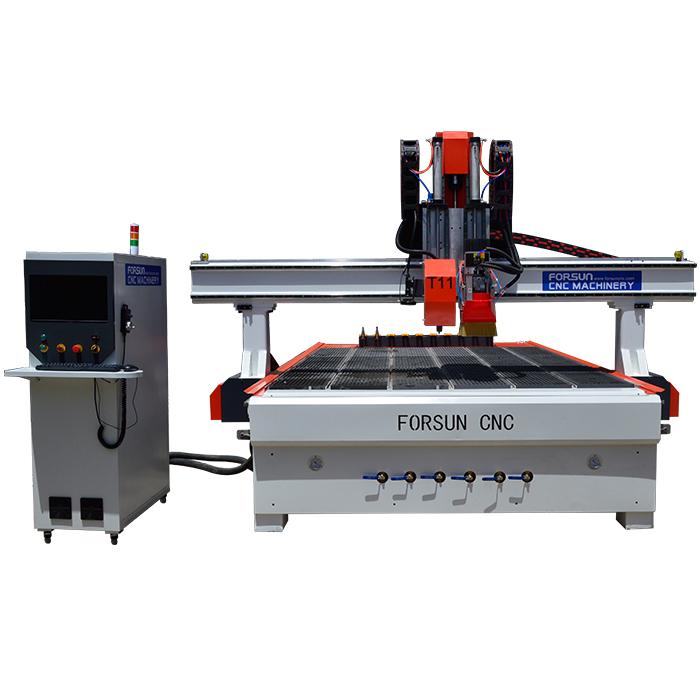

Main Description of ATC CNC Router Machine

Our ATC CNC router machine with a CCD camera combines the functions of spindle cutting, CCD camera, and swing knife cutting. The CNC oscillating knife cutting machine with an ATC spindle can cut a variety of materials, from cardboard and cotton materials to acrylic, MDF, and wood.

The welded structure made of high-temperature thick steel pipes ensures minimal deformation, excellent rigidity, and strong strength. High precision, long service life, stable movement.

Auto tool Changer CNC router machine is with a 10 positions automatic tool changer which provides an easy and convenient method of running jobs requiring multiple routing tools.

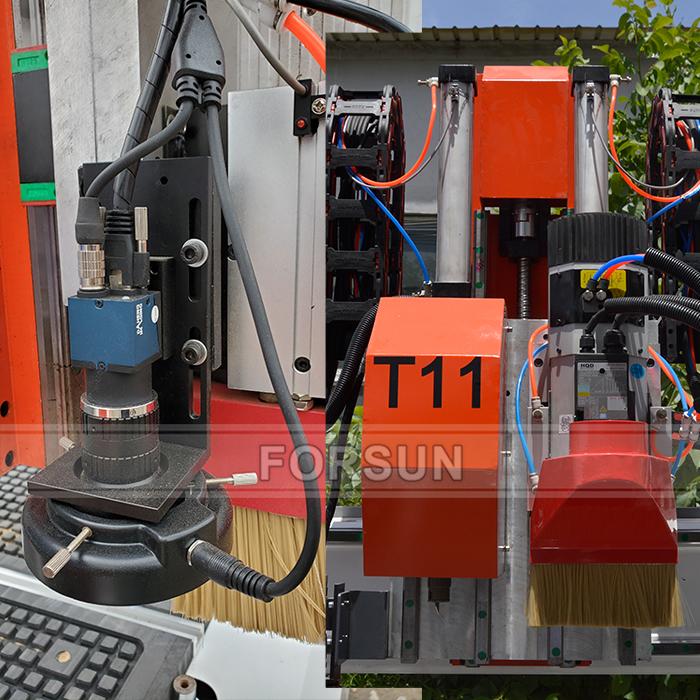

A professional CCD camera can scan the pattern on the advertising paper and automatically cut along the edge.

Using linear guide rails to ensure the machine’s positioning accuracy and can withstand larger loads.

Electromechanical design, select direct brand, and excellent brand electrical accessories.

9KW HQD ATC spindle power tool changes the spindle to ensure that the machine can cut powerfully.

Automatic lubrication system, easy to complete regular maintenance with one button.

Carry out intelligent protection work to prevent misoperation of the countertop, etc., which may cause damage to the countertop.

Suitable Materials ofCNC Router Oscillating Knife Cutting Machine

Cutting Industry: Leather, PU, PVC, Oxford cloth, corrugated paper, KT board, and other materials so on.

Advertising Industry: suitable for advertising words, billboard cutting, signage, architectural models, house numbers, signs, craft decoration, furniture decoration, etc.

Woodworking Industry: mainly suitable for sheet metal plane, mahogany classical furniture and antique furniture carving processing, wood carving craft, gift wooden box, fine carving, and so on.

Features of CCD Camera

Vision System is a high-performance, low-cost solution camera that’s mounted on the head of the CNC Router machine. It quickly finds and recognizes conventional registration marks, adjusting the machine cutting path as necessary to achieve exact alignment with printed shapes.

Eliminate waste material with the Vision System When used with cutting pre-printed material, the CNC wood router quickly finds and recognizes conventional registration marks to adjust the cutting path, providing exact alignment and 100% accuracy.

Combine all these features together and you’re working with the most versatile, configurable machine in the industry.

Parameter Data:

Model Name	CNC Router Oscillating Knife Cutting Machine with ATC & CCD Camera FS2030-CCD
X, Y-Axis Travel	2000X3000mm, Option: 1300X2500mm(4X8ft), 1500X3000mm(5X10ft), 2000X4000mm
Z-Axis Travel	200mm,Option: 300mm,400mm,500mm,600mm
Spindle	9.0KW HQD ATC Spindle
Oscillating Knife	Oscillating Knife
CCD Camera	Syntec CCD Camera / NC Studio Camera
Motor for X, Y, and Z	YAKO Servo driver
Operating System	Syntec controller / NC studio
Drive System X, Y, and Z-axis	Helical Rack and Pinion for X and Y-Axis, High precision ball screw for the Z-axis.
Transmission X, Y, and Z-axis	HIWIN/THK Rail Linear guide and bearings.
Machine structure	Welded Square tube structure and rigid side support, aluminum T-Plate Extrusion Combined vacuum table
Working Voltage	220V/50HZ/60HZ,3PH, Option: 380V/50HZ/60HZ,3PH
Command Language	G Code & M Code
Lubrication	Automatic lubrication system
Tool Calibration (Optional)	Automatic tool sensor
Dust collector system(Optional)	3.0KW Dust collector system with 2 bags
Max. Rapid Travel Speed	80000mm/min
Max. working Speed	45000/min
Repeatability	+/-0.04mm/300mm
Working Accuracy	+/-0.03mm/300mm
Compatible Software	Type3, Ucancam, Artcam
Other Names	CNC Router with CCD camera, CNC wood router, CNC router machine, router machine, wood CNC machine, CNC cutting machine, CNC wood carving machine, CNC engraver,3 axis CNC router, best CNC router
Gross Weight	1800 KGS
Package Size	3900*2250*1900mm
