Japan DIGITECH DTG series standard push-pull force gauge

Model:	-
Brand:	-
Origin:	Made In Japan
Category:	Electronics & Electricity / Electronic Instrument / Analysis Instrument
Label:	Japan DIGITECH DTG , standard push-pull , force gauge
Price:	-
Min. Order:	-

Inquire Now

Product Description

Japan DIGITECH DTG series standard push-pull force gauge

DTG Push Pull Force Gauge Model:

DTG-1, DTG-2, DTG-5, DTG-10, DTG-20, DTG-50, DTG-100

DTG push-pull force gauge Product description:

1. 200% overload will not damage the sensor.

2. The display can be inverted for easy reading.

3. Connect with caliper or displacement meter, and the displacement setting is displayed on the upper right corner of the push-pull force meter.

4. It can be connected to a printer to output data or to a computer.

5. Used in conjunction with an electric test bench to maintain a 90-degree downward pressure and uniform pressure.

DTG push-pull force gauge model list

model	DTG-1	DTG-2	DTG-5	DTG-10	DTG-20	DTG-50	DTG-100
Measuring range	10N (1kgf)	20N (2kgf)	50N (5kgf)	100N (10kgf)	200N (20kgf)	500N (50kgf)	1000N (100kgf)
Minimum representation	0.001N (0.1gf)	0.01N (1gf)	0.01N (1gf)	0.01N (1gf)	0.1N (10gf)	0.1N (10gf)	0.1N (10gf)

Measuring axis	M6
Measurement accuracy	±0.2%f.s Within
Unit of measurement	N,kgf(gf),lb
Measurement cycle	1ms, 5ms, 16ms, 50ms Switch at will
Indicates the update cycle	1, 2, 5, 10, 20 times/sec Switch at will
way of communication	USB mini B
Memory function	1000 data
External input	MITUTOYO DIGIMATIC input / contact ON, OFF input
Printer output	MITUTOYO DIGIMATIC output/Serial output
Electric table output	Load and displacement setting mode UP · DOWN · STOP/OVER LOAD stop signal
Analog output	±2V/f.s (load value)
Specification judgment output	LOW · GOOD · HIGH LED lighting and output
Display	H45mmxW50mm LED/ 6-digit load display, 7-digit displacement display/battery remaining display
Body size	H45mmxW74mmxD37mm
Body weight	About 500g
Operating temperature	0℃～４０℃
power supply	Built-in Ni-MH battery/AC100V～240V compatible charger
annex	6 types of measuring jigs/charger/USB cable Body storage box/Operation manual/Guarantee

FX-1 software can be downloaded for free

FX-100T FX-100 time and displacement software need to choose to purchase

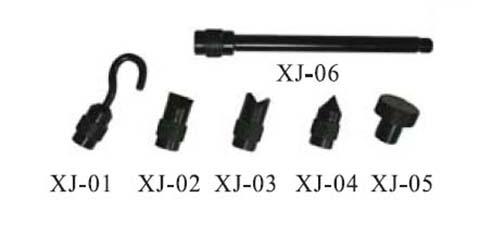

Standard accessories
