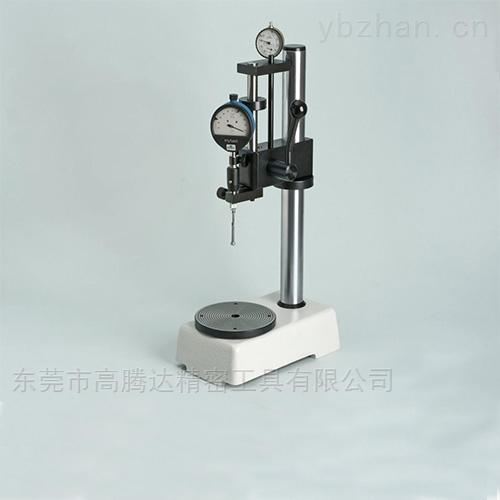

OSM measuring table for precision inner diameter measuring system

Used in conjunction with OSIMESS, SUBITO or OD plunger gauge precision measuring system, OSM5 and OSM6 are used to detect a series of the same workpieces, especially the detection of apertures with smaller tolerances, which will make the inspection work relatively easy.

advantage:

Fast and accurate measurement, no need to find the reversal point
Support-oriented measurement, high measurement accuracy
widely used
easy to use
Reduce the wear of the probe and the force of the probe on the workpiece
There is a centering hole 11H7 in the center of the measuring table, which is used for floating workpiece support and floating block gauge fixing frame
OSM 5 has a larger worktable and lifting device to measure larger workpieces. OSM 5 can be used to measure depth and thickness.

OSM 5 accessories

Floating bracket
OSM 5 clamping device for clamping SUBITO and OD handles
Measuring stroke limit device, used for the handle of OSIMESS with retracting device, to reduce the abrasion of the probe and the force of the probe on the workpiece
