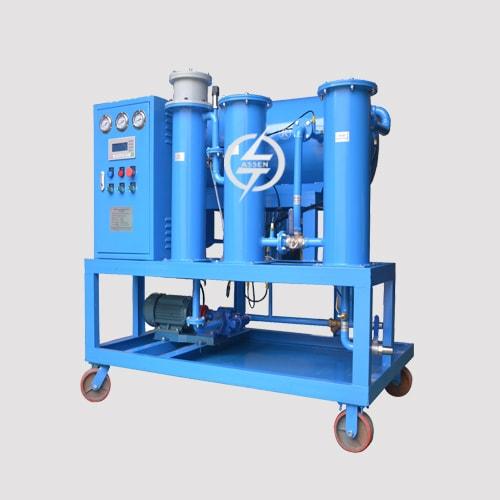

3000 L/H fuel oil purification system water separator machine

3000 L/H fuel oil purification system water separator machine
Model:TYL
Brand:ASSEN
Origin:Made In China
Category:Industrial Supplies / Machinery / Filters
Label:oil change , oil water seperater , fuel oil purifier
Price: US $8600 / pc
Min. Order:1 pc
Inquire Now

Product Description

Functions
﹒The purifying of fuel oil and diesel oil
﹒The water and dust purifying of hydraulic oil lubrication system
﹒Access hydraulic lubrication system comprehensively improve the cleanliness of the system



Application
TYL Coalescence-separation Fuel Oil Purification machine has five filtration systems, combining precise filtration and dewatering two functions into one efficient. The introduction of the US “coalescing separation” technology for dehydration, which has high efficient dehydration, especially is adapted to the large amount of water separation from oil, dehydration ability is far better than the centrifugal method, you can get rid of all of the oil-water emulsion medium structure ; by filtration, particle filtration system, the cleanliness of the medium can be controlled in a stable state of the system requirements to ensure the cleanliness; the oil does not change the physical and chemical properties, to extend the service life of the oil; energy small, low operating costs; excellent system configuration, continuous strong performance for online operation.

Fuel Oil Purification System's Technical Paramters

Parameters

Unit

TYL-50



Flow rate

L/hr

3000



Working pressure

MPa

≤0.5



The original pressure loss

MPa

≤0.1



Working noise

Db

(A)

 ≤65-75



Filtration precision before pump

μm

100



First filtration precision

μm

20



Coalescence-separation Filter

Optional

A. Standard coalescence-separation Filter  Precision:10μm



B. Advanced coalescence-separation Filter  Precision:3μm



Continuous running hours

H

≥720



Power Supply



380 V A/C, 3 PHASE, 50 Hz (or as per required)



Water discharge

L

4L/Per time



Heating Power

KW

36

Inlet (outlet) Caliber

mm

Ф32

Size

mm

1580*1030*1480

Weight

Kg

420
