5in Stand Sat Digital Terminal Sat Multiswitch

5in Stand Sat Digital Terminal Sat Multiswitch
Model:MS58
Brand:HEJIA
Origin:Made In China
Category:Electronics & Electricity / Telecommunication & Broadcasting / Satellite Equipment
Label:5 in Sat Multiswitch
Price: US $17.8 / pc
Min. Order:100 pc
Inquire Now
点击这里给我发消息

Product Description

Certification:CE,ROHS,REACH

Private Mold:NO

Place of Origin:Guangdong, China

Brand Name:HEJIA

Model Number:HJMS58

FTA(Free To Air):Yes

Type:Digital

High Definition:Yes

Featrues:



1) 4 satellite IF and 1 terrestrial TV inputs  for 8 satellite receiver

2) 8 satellite IF inputs selected by 13V,18V,22KHz

3) Low insertion loss, high isolation

4) SAT-IF-PATHs to the subscribers are active and supplied by the receiver

5) Sheet metal housing with plastic holder

6) Design good for indoor usage

7) External adapter available

8) Cascade type



Specifications:



    Typical QC Limit Remark
Frequency Range Terr:47-862MHz   SAT:950-2150MHz
Inputs 4 SAT+1 Terr. F connectors
Outputs 8 Receiver F connectors
Thru Loss   Terr.

4dB

5dB
SAT

4dB

5dB
Tap Loss Terr.

3dB

5dB
SAT

1dB

3dB

Return Loss

Terr. 12dB 10dB



SAT

12dB 10dB
Stop band attenuation  Terr. 28dB 25dB
SAT 28dB 25dB
Isolation H/V 30dB 25dB
REC-REC 30dB 25dB
Power Adapter IN:100-240V OUT:18V 1500mA
Dimensions(L,W,H) 160x120x43 mm

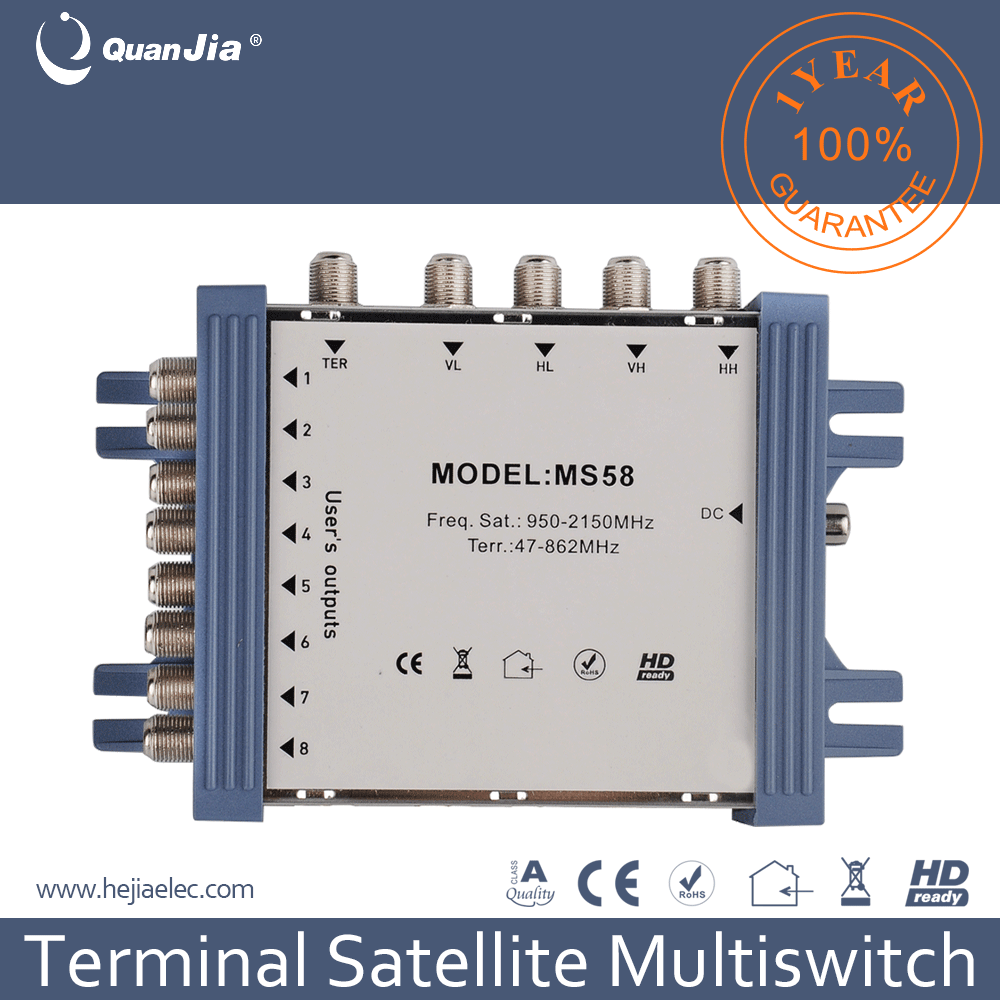

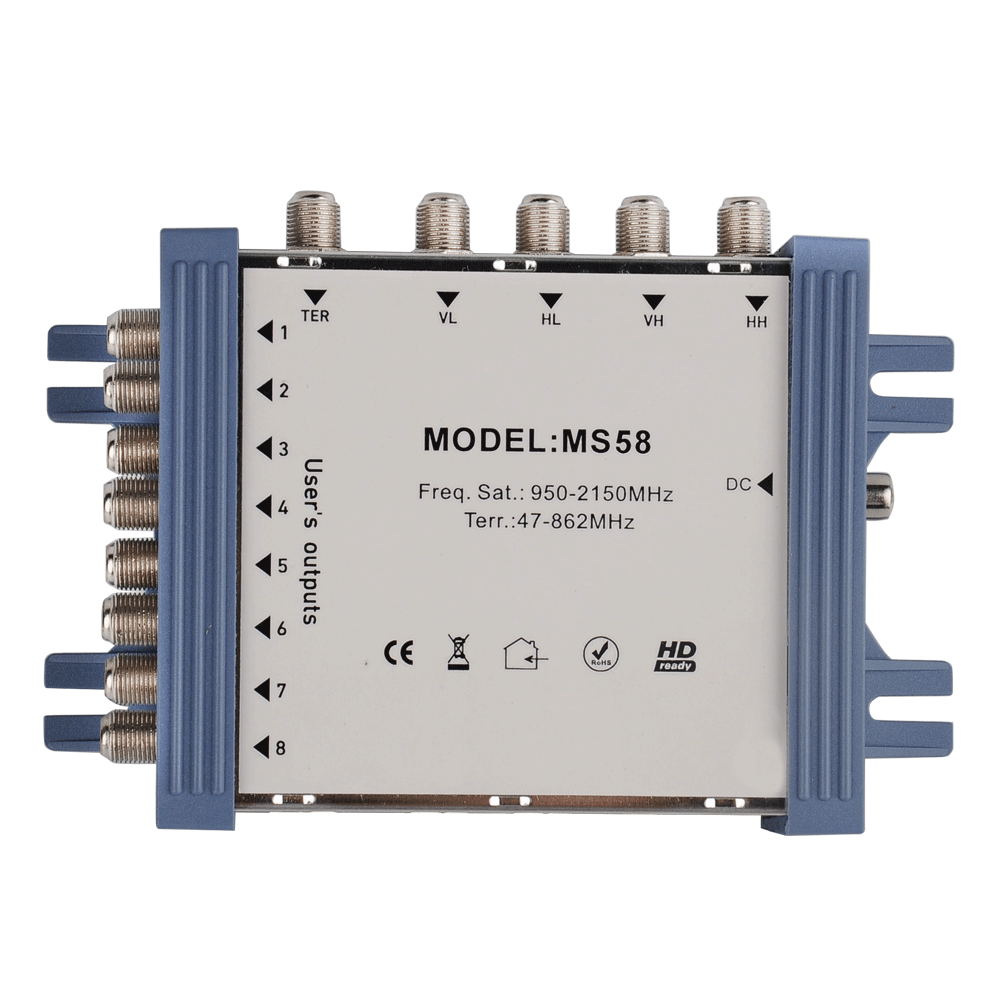

5in Stand Sat Digital Terminal Sat Multiswitch 15in Stand Sat Digital Terminal Sat Multiswitch 2
