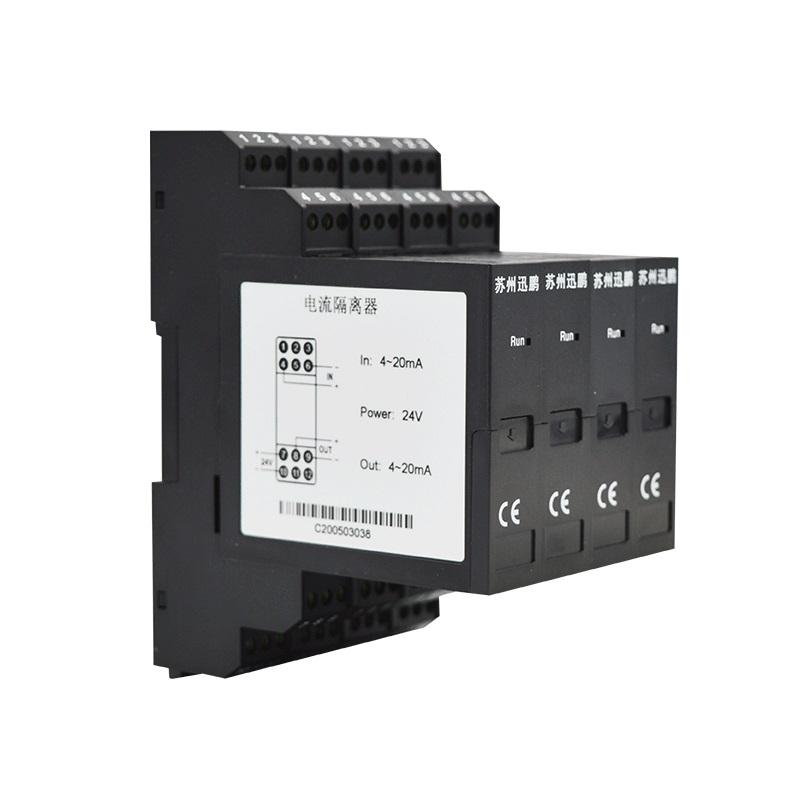

XP Series Signal Isolator(Current Loop Supply)

XP Series Signal Isolator(Current Loop Supply)
Model:-
Brand:surpon
Origin:Made In China
Category:Industrial Supplies / Other Industrial Supplies
Label:Signal Isolato
Price: -
Min. Order:1000 pc

Product Description

XP Series Signal IsolatorCurrent Loop Supply) (one input, one to four outputs) is matched with temperature, flow, pressure, liquid level and other 2-wire transmitters in the automatic control system, powers a 4~20 mA DC current loop, transmits, converts, isolates, and transfers industrial signals. It meets users' needs of monitoring remote data. It is widely used in data acquisition, signal transmission and conversion, PLC, DCS and other industrial measurement and control systems in the fields of machinery, electricity, telecommunications, petroleum, chemical industry, steel, sewage treatment, building construction, etc. It is used to perfect and supplement the function of the system I/O plug-in, improve the anti-interference ability of the automatic control system, and ensure the stability and reliability of the system.

Features
* Input, output and power are completely isolated, with strong anti-interference ability
* High accuracy, high linearity, long - term running stability
* Modular design, small size, low power consumption, suitable for intensive installation
* Plug-in construction, easy installation, disassembly and maintenance



XP Series Signal IsolatorCurrent Loop Supply) code table

隔离配电器



Examples of ordering

Refer to the code table above and provide the model number correctly.

Example 1  input: one channel 2-wire 4-20mA, output: one channel 4-20mA, power supply: 24VDC

           order model: XPD-A420-A420 -D

Example 2  input: one channel 2-wire 4-20mA, output: two channels 4-20mA, power supply: 24VDC

           order model: XPD-A420- A420- A420-D(abbreviated as: XPD-A420-2A420-D)

Example 3  input: one channel 2-wire 4-20mA, output: four channels 4-20mA, power supply: 24VDC

           order model: XPD-A420- A420- A420- A420- A420-Dabbreviated as: XPD-A420-4A420-D)

Example 4  input: one channel 2-wire 4-20mA, output: one channel 2-wire 4-20mA, power supply: output loop

           order model: XPD--A420-L420
