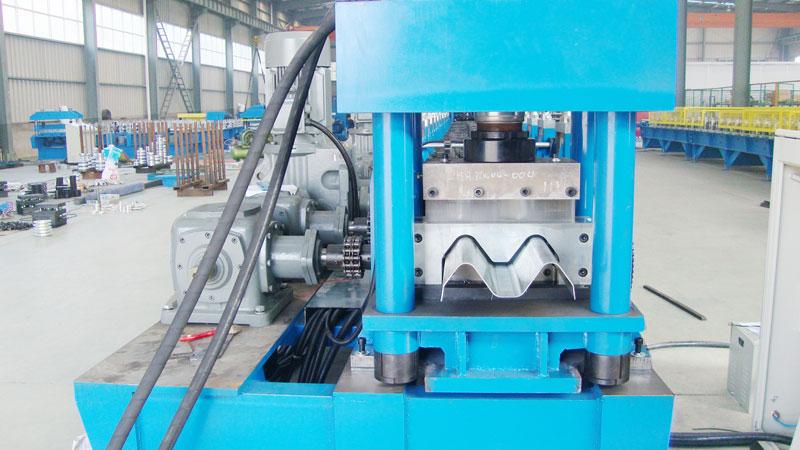

Crash Barrier Roll Forming Machine 202108

Model:	-
Brand:	HZ roll forming
Origin:	Made In China
Category:	Industrial Supplies / Other Industrial Supplies
Label:	tube mill production
Price:	-
Min. Order:	-

Inquire Now

Product Description

The series of our crash barrier roll forming machine possess the following characteristics:

Cassette-type machine base for multi-profile purposes: 2-wave barriers, 3-wave barriers, and standing posts for choice.
Both underground pit and overground accumulating devices are available for choice.
If the ground pit is not allowed, no problem! This crash barrier roll forming machine line can run without any foundations or underground pit accumulators.
Forming Speed: 20m/min; line production speed 10-17m/min; 25-35 T/8 hours
Certified with Multi-Patents; CE Certified, EUROPEAN quality standard
Available prompt delivery

Suitable Coil Sheet Material for Crash Barrier Roll Forming Machine

Suitable material	hot Rolled Steel, Galvanized Steel
Barrier Thickness	3.0 (mm)
Yield Strength	230-300 (MPa)
Width	482/748mm as profile requests

Production Line Components and Parameters of Crash Barrier Roll Forming Machine

1. Decoiler	5T/8T/10T
2. leveling device
3. Servo Feeding Device
4. Holes punching device
5. ground pit/ over ground accumulating unit	(optional)
6. feeding and guiding device
7. Roll forming system	10-30m/min (adjustable)
8. post cutting device
9. Output Automatic Stacker: Lateral/Longitudinal	(optional)
10. Electric control system	MITSUBISH/ SIEMENSE/AMS/Omron (optional or as requested)

The Working Flow of Crash Barrier Roll Forming Machine

Uncoiler - Leveling device - Servo feeding device - Hole punching device - Ground pit/ over ground accumulating unit - Feeding and guiding unit - Roll Forming System - Post cutting to length - Output Automatic Stacker

How Do Crash Barriers Work?

As an integral part of the modern road system, crash barriers play an important role in keeping cars from going off the highway. On the basis of its manufacturing design, crash barriers can work at different places. Take the W-beam crash barriers as an example. The "W" shape of the crash barrier can effectively catch the bumper of the automotive and assist the vehicle in staying on the highway. As one of the mature guardrail machine manufacturers in China, Hangzhou Roll Forming Technology can provide you with high-quality crash barrier roll forming machines at reasonable prices.

Profile Drawings of Crash Barriers

Finished Crash Barrier by Crash Barrier Roll Forming Machines

Specifications of Crash Barrier Roll Forming Machine

Machine Condition	Fully New, A Grade quality
Panel Shape	As profile drawing and customer’s requirements
Operator needed	1-2 people
Power Supply	220V/380V/415V/460V, 50/60Hz, 3P (as requests)
Equipment Weight	About 35t
Dimension	(LWH) about 3062m
LOADING SIZE	Normally need 3 x 40' (+1x20’) container.
Equipment Color	Normally Blue/White, or as requests;
Place of Origin	Zhejiang, China (Mainland)
Packing	Standard and careful export packing

Related Products of Crash Barrier Roll Forming Machine

Hangzhou Roll Forming is a professional c purlin machine manufacturers, we provide c channel forming machine, c stud roll forming machine, tube mill production line and etc. Want to know more? Please contact us.
