CHINA GOODSTABILITY TECHNOLOGY CO.,LTD.,is specialized in wire harness processing equipment and non-standard automation equipment, research and development, production, sales, and service as one of the integrated enterprises.

Overview

Quick Details

Place of Origin:China
Brand Name:GST
Model Number:RF-710
Usage:Crimping

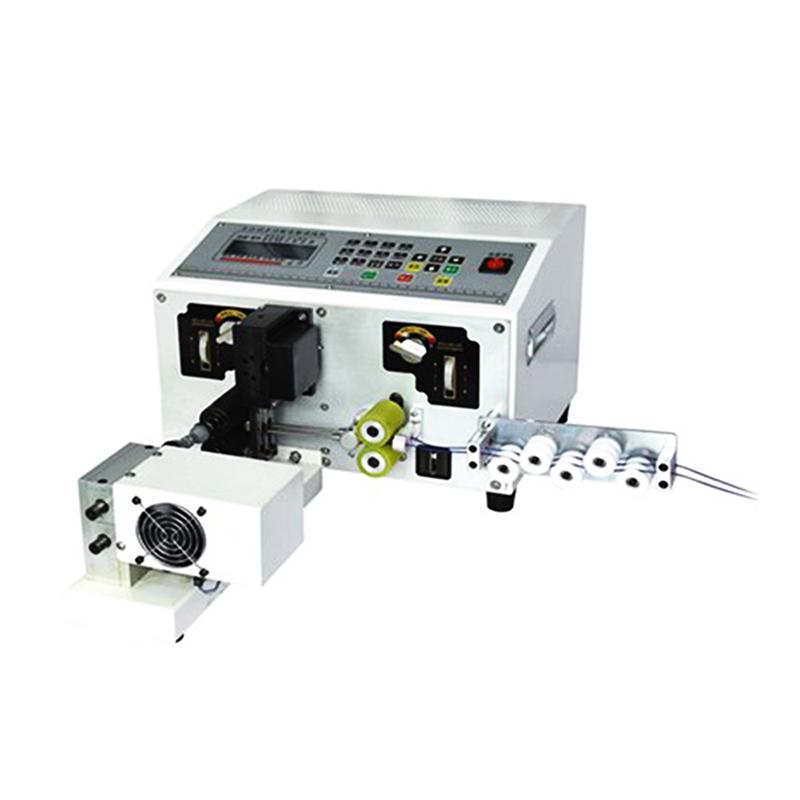

Product Name:Fully Automatic Stripping Cutting Machine
working pressure:working pressure
Cable:AWG26-18#
Processing efficiency:1800~2000PCS/h
Processing line length:75mm~9999mm
Operation mode:Automatic and manual original
Equipment size:L 1.5*W 0.8*H 1.6M
Weight:350Kg
Product Size:1.8m*0.8m*1.4m

Packaging & Delivery

Selling Units:Single item
Single package size: 150X80X160 cm
Single gross weight:350.000 kg
Package Type:wooden box

Lead Time:

Quantity(Sets) 1 - 1 >1
Est. Time(days) 10 To be negotiated


Specification


Pipe diameter and length D3.0mm~6.0mm L12mm~26mm
Processing line length 75mm~9999mm
Processing efficiency 1800~2000PCS/h
Cutting tolerance Approximately less than 0.2% of total length
Stripping length 0~30mm 0~10mm A end 0~30mm B end 0~10mm
Product Size 1.8m*0.8m*1.4m
Product Size 350Kg
Operating Voltage AC 220V~ 50Hz
working pressure 0.4~0.6MPa
Machine power 2.8Kw
