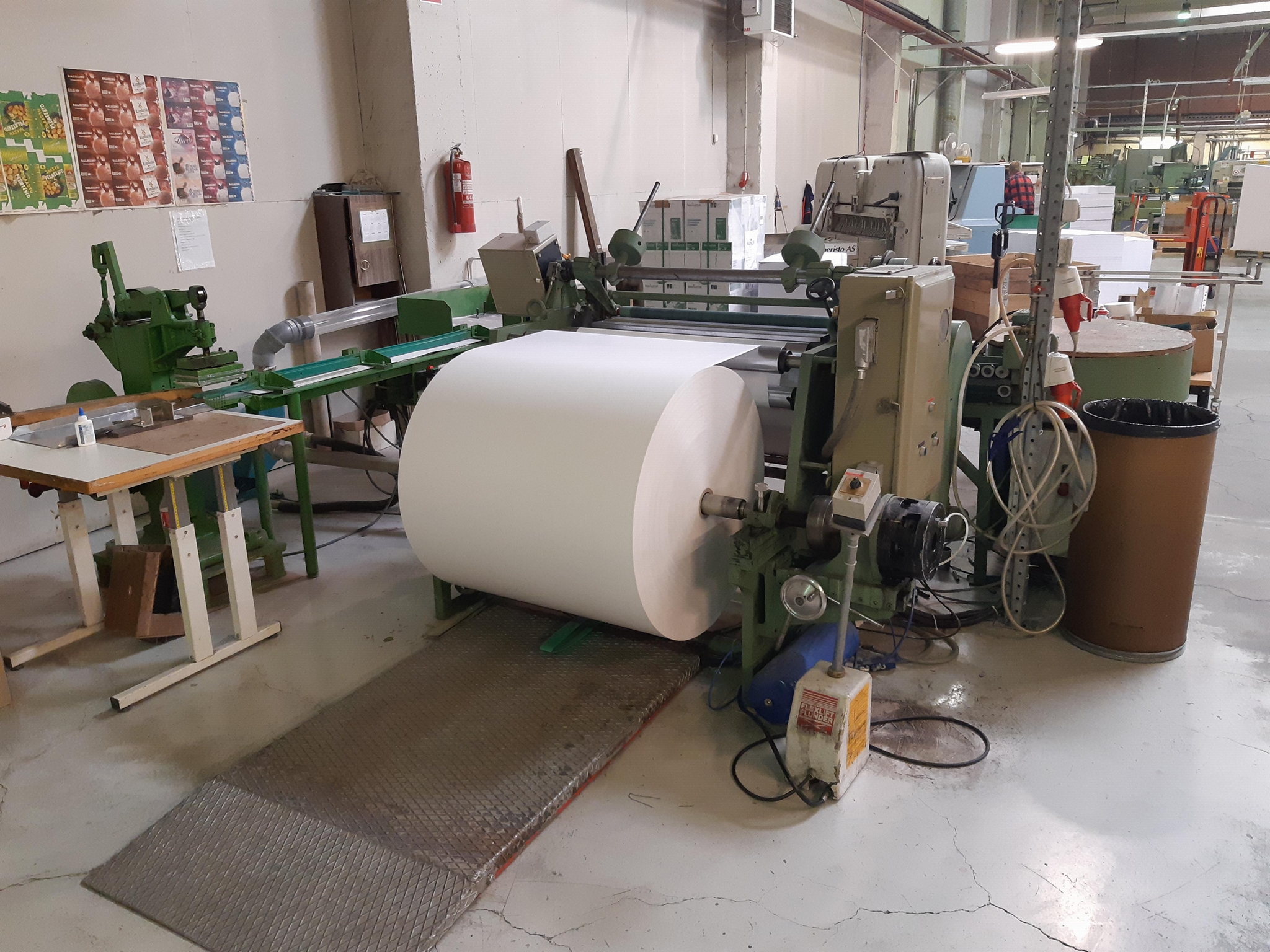

Slitter and Rewinder for ATM paper rolls

  Slitter and Rewinder for ATM Paper rolls


 Manufacturer : Officina Meccanica Maglio S.p.A., (OMM) Italy
 Manufacturing year : unknown


Consisting of:
- Automatic core loader,
- Hydraulic lifting of main web
- Electronic cycle counter
- Packing line (manual)

Material to be handled

- ATM paper rolls


Technical data

(Unwinder)
Minimum web width : 460 mm
Maximum web width : 1050 mm
Maximum diameter : 1100 mm
Core diameter : 70 / 76 mm

Minimum slitting width : 17.4 mm
(*15.0 mm with knife holders with 10mm thickness)
Maximum slitting width : 250.0 mm

(Rewinder)
Maximum diameter : 300 mm
Core diameter : Min. 11.5mm, max. 76mm


- Automatic warning stripe at reel ends
- Trim removal system for removing trim from both sides of the web, complete with motor fan and necessary piping


- Pressing function to make reel ends flat
- Packing machine

*All machine or equipment is offered as is where is with all faults without warranty and is subject to prior sales.
*All information provided in this offer is from the source(s), which is/are deemed reliable and trusted.
*Ex.Works, excluding VAT, insurance, dismantling, packing and delivery.
