Product Description

Technical Principle

In the natural state, the liquid crystal molecules inside it are arranged randomly, the refractive index of liquid crystal is lower than that of the polymer outside, and the incident light scatters in the polymer and is milky white, that is, opaque.After electrification, the droplets in the dispersed liquid crystal polymer are rearranged, and the liquid crystal changes from disorder to directional order, so that the refractive index of the liquid crystal is the same as that of the polymer, and the incident light can completely pass through, forming a transparent state. Intelligent dimming glass can be based on different occasions, such as mood, functional requirements can change the mood of the glass in a flash, the function such as demand can change glass appear a performance in - instantly, truly achieve the "the effect of light with me to move, it also is the magical thing about this state of the user can conveniently control switch, switch or remote control, slightly press can shape the privacy, effectively protect the individual privacy space.

High Quality PDLC Film, PDLC Glass



How it Works
Switchable Transparent Glass(STG) consists of float glass, EVA, and Yuguang Smart Transparent Film(STF) that form a kind of laminated glass. The scientific principles lie in the STF, when it is powered off, the liquid crystal molecules fall into a random state,that diffuse light passing through the sandwich structure and to provide instant privacy. When it is powered on, the voltage drive the liquid crystal molecules align along the direction perpendicular to the film, then visible light go through STF and turns transparent.PDLC customizing smart glass

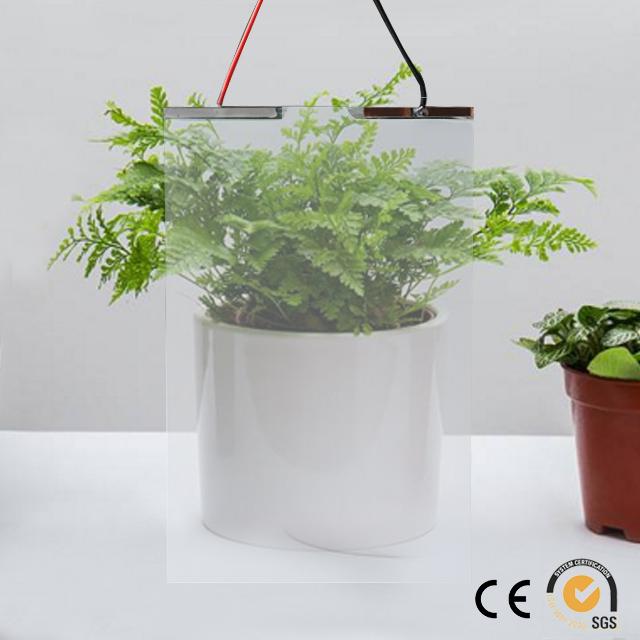

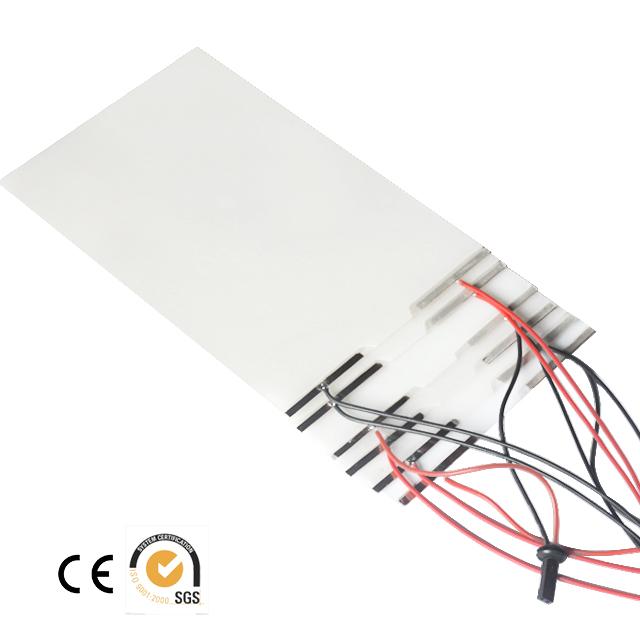

Switchable Transparent Film (STF)
STF is a sort of light modulating material comprised of polymer dispersed liquid crystal and flexible ITO film. When it is powered off, visible light scatters through the STF and the film turns opaque. When it is powered on, visible light transmits the STF and the film turns transparent. STF can be used in SA-STF or STG.



Self-Adhensive Switchable Transparent Film (SA-STF)

SA-STF is an intelligent film which provides a simple and cost effective alternative to switchable film technology. It is manufactured with a self-adhesive cling layer on one side (peel and stick) which can directly stick to the existing glass and switch from transparent to opaque instantaneously under voltage.

Switchable Transparent Glass (STG)
STG consists of toughened glass, EVA, and STF that form a kind of laminated glass.

Application

Product Parameters

	Item		Mode	Specification
	Optical Parameter	Visible Light Transmittance	Power on	>83%
			Power off	>53%
		Parallel Light Tansmittance	Power on	75%
			Power off	<2%
		Haze	Power on	<4%
			Power off	>95%
		Viewangle	Power on	>150°
	Electrical Parameter	Operating Voltage	Power on	AC48V-65V/ 50Hz
		Response Time	Power off-on	<200ms
		Power Dissipation	Power on-off	6-8 W/㎡
	Size Parameter	Thickness	0.38mm
		Maximum Size	6000mm*2000mm
	Operating Parameter	Operating Temperature	-30°C-50°C
		Storage Temperature	-40°C-70°C
	Service Times		Power on	>12 years
	Switching Times			>2 millions

1. Privacy Protection

2. Sound Insulation

3. An End of a Intelligent System

4. Energy Saving and Environmental Protection
5. Safety

6. Diversified Control Methods

7. Rear Projection

Rear Projection

Rear Projection Function

When the smart glass power is off, control the ambient light and project it through a projector can make the smart glass display high pixel, and combined with the infrared touch frame to form a large-sized "tablet computer" (can be made up to 130 inches). Created a new field of projection. Suitable for meeting, science and education configuration.
