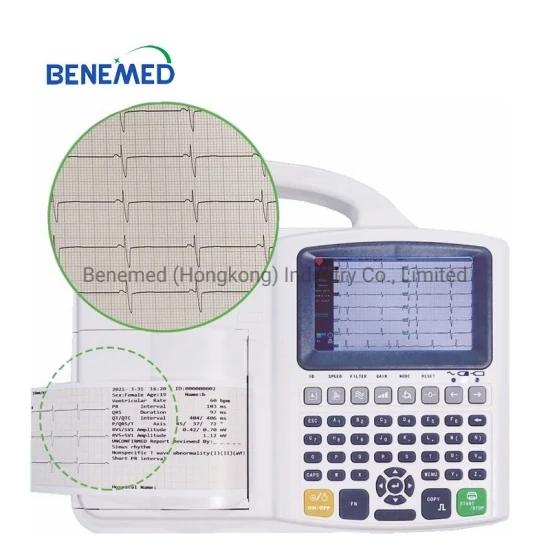

Portable Digital Hospital Electrocardiograph 3 Channel Interpretive ECG  Machine ECG3A

Features:

1. The digital isolation technology is used to suppress the drift of ECG signal, AC filter, EMG filter and heart rate detection by the processor to ensure the authenticity and reliability of the output signal.
2. It has the function of automatic measurement of conventional ECG parameters (more than 200 cases), which can reduce the burden of doctors. Automatic mode and manual mode are available.
3. Baseline stability test, ensure that each time can be printed out neat and beautiful ECG waveform
4. Manual/auto 1, 1+1, 3CH display
5. Manual/auto working modes

Technical Specification
Sampling rate: 1000Hz
Frequency Response: 0.05- 150HZ (-3dB)
Time Constant:3.2s
CMRR: > 100db
Patient Leakage Current: <10uA
Input Mode: floating input
Input Circuit: <50uA
Noise level: <15uVp-p
Sensitivity valve: 20uV
Polarization Voltage: 1mV± 2%
Continuous Operation: AC≥10h & DC ≥ 3h
A/D Converter: 14bit
Input Impedance: ≥ 50MΩ
Sensitivity: 2.5, 5, 10, 20mm/mV ± 2% (4 levels/automatic adjustment)
Paper Speed: 6.25, 12.5, 25, 50mm/s ± 3%(4 levels adjustment )
Recording Mode: Thermal array printer
 8 dot/mm(Vertical )
40dot/mm(Horizontal, 25mm/s)
Paper Size: 80mmx20m, roll paper
Filter:
AC: 50/60Hz(-20dB)
Drift: 0.15Hz - 0.5Hz
High Frequency: 70Hz/100Hz/150Hz

Physical Specification:
Electrical Power
AC:220V10%,50Hz/60Hz
DC: Built-in rechargeable battery
Data Storage: 20 sets Environmental Conditions
Transportation Temperature: -20 ºC+50 ºC
Relative Humidity: 10%-95%
Atmospheric Pressure: 700hpa-1060hpa
Storage Temperature: -20 ºC+50 ºC
Relative Humidity: 10%-95%
Atmospheric Pressure: 700hpa-1060hpa
Operation Temperature: 5 ºC+40 ºC
Relative Humidity: 25%-80%
Atmospheric Pressure: 700hpa-1060hpa
