Ultrasonic Level Meter

The transducer in ultrasonic level meter sends out high frequency ultrasonic pulses. When a pulse hits liquid surface, it is reflected back. The reflected ultrasonic wave is received by the transducer and converted into an electronic signal. The time interval between transmitted ultrasonic pulse and received ultrasonic pulse is directly proportional to the distance between transducer and liquid surface.

Features

1、The minimum Dead zone is 0.06m, which is in the leading position in the domestic industry.

2、Built-in temperature sensitive control to realize full intelligent temperature compensation.

3、A variety of output types，to meet the needs of different interfaces .

4、Strong anti-interference ability and can be applied to various complex working conditions.

5、Man-machine interface is friendly, and range and Dead zone can be set as required.

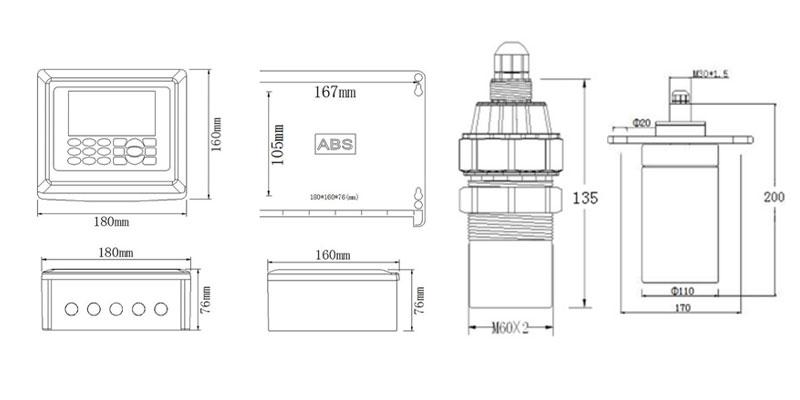

UVUS-S Split Ultrasonic Level Meter

Specifications

Range: 5m~30m

Accuracy: ±0.25%

Dead zone: ≤ 0.25m

Resolution: 1mm

Beam angle: 12°

Power: 12~24V DC/220V AC ,＜1.5W

Output: 4~20mA, 0~20 mA, 0~5V, 0~10V, RS-485(Modbus), Relay

Process fitting: Thread of M60*2, Flange

Working pressure: 0~1.0MPa

Temperature compensation: -20~80℃

Protection rating: IP67
