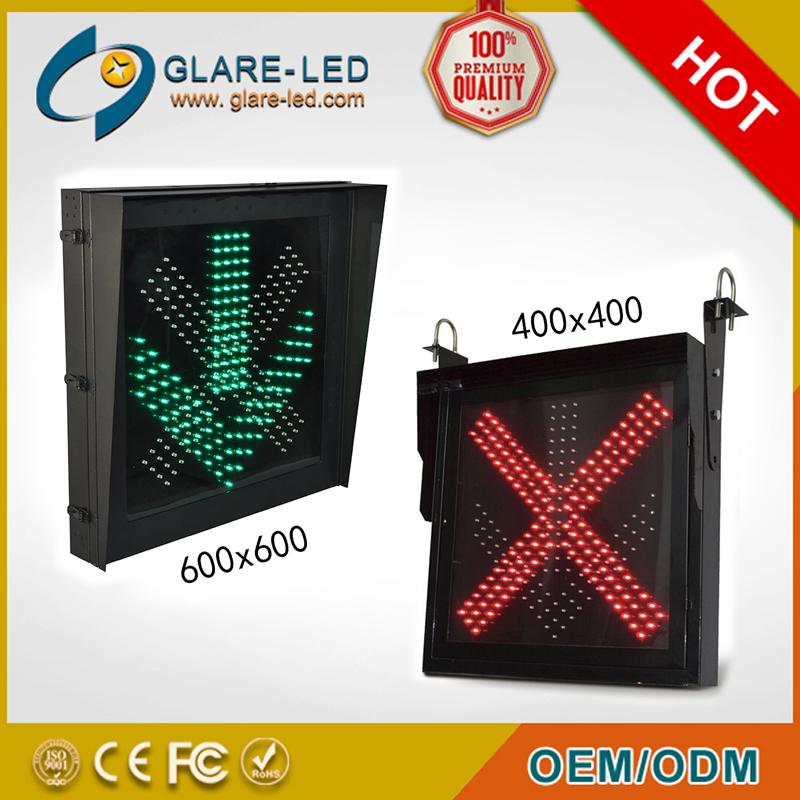

Product Size：400mm*400mm / 600mm*600mm

Cabinet Material：Aluminum or iron

Brightness：R ≥3100cd/m2, G ≥3700cd/m2, Y ≥7400cd/m2

Color：R: 620～630nm, G: 500～530nm, Y: 585～595nm

Input Voltage：230Vac±15%, 50Hz

IP Rate：IP65

PARAMETERS

color	400*400 / 600*600
visual angle	Aluminum or iron
homogeneity	EN 12899-1: 2007
Visible flashing rate	EN 12899-1: 2007
input voltage	passed
electrical safty	passed
consumption	EN12767
operating temperature	R 23100 cd/m2 G 23700 cd/m2 Y 27400 cd/m2
operating humidity	R 24.2 G25 Y 210
IP rate	R: 620 to 630nm G: 500 to 530nm Y: 585 to 595nm
product size	30°
cabinet material	Uniformity
load	≥90Hz
flexure	230Vact15%, 50Hz
impact force	HD 60364-4-443 and HD 638 S1
vibratory force	30W
passive safety	-25℃ to +60℃
brightness	Up to 95%
brightness ratio	IP65
anti-corrosion	D3, D4
conduction	EN50293
radiation	EN50293
interface	RS232, RS485, Ethernet, GPRS, 3G
brightness control	256 level automatic adjustment
LED Single point detection	Open circuit and short circuit
sensor	Temperature sensor, humidity sensor

PRODUCT OVERVIEW

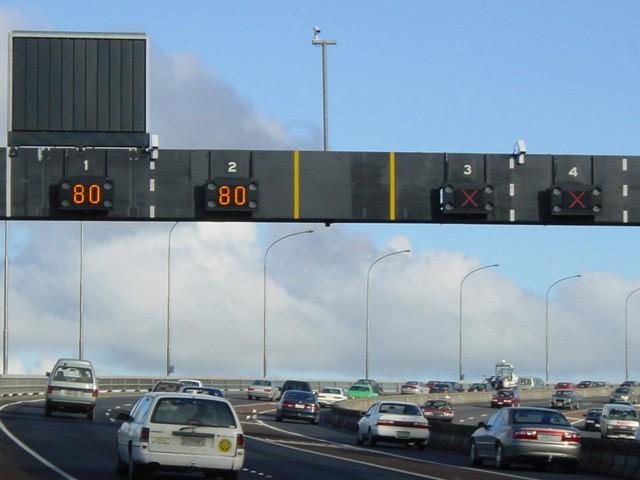

Glare-LED lane control sign is the special equipment electrical and mechanical engineering landmark for expressway, bridge and tunnel. using red and green color super bright traffic LED lamp, mounted on the canopy above each lane, a red ×, green lanes → flag state, guide the driver safe passage properly.

This item meets The National Ministry of Communications-JT / T431-2000 quality standard.

PRODUCT FEATURE

High brightness: All adopt Taiwan Epistar chip,take the form of concentrate transportation standard,ultra-high brightness and chroma uniformity.

Low power consumption: low consumption LED is in accordance with  Low carbon , environmental protection and energy saving standard.

Long lifespan: Brand Taiwan Epistar Chip could guarantee the quality

Brightness control: automatically controlled by light sensor or manual

voltage stability control: Circuit design for voltage stability, protection of LED light-emitting diodes andinternal circuit

luminance proportion: Has a balanced current circuit and a specially designed optical components, special uniform glow

Aging test: Product shipped after 48-hour aging,Waterproof, vibration test, etc to make the performance more superior

Protection rate: IP54,Waterproof and dust proof design

Material structure: Using high hardness of cold rolled iron, black anti-corrosion paint material, new structure design, beautiful shape

carried standard: in accordance with GB/14887-2003 and related international standard.

Application Area

Widely used in expressway, toll gate, tunnel, etc...
