PV Extension Wire Solar Cables And Connectors Solar Wiring Harness
| Model: | A40B44-*** |
|---|---|
| Brand: | NSPV |
| Origin: | Made In China |
| Category: | Electronics & Electricity / Electronic Components / Terminal |
| Label: | Solar Wiring Harness , PV Extension Cables , Solar Jumper Wire |
| Price: |
US $4.1
/ pair
|
| Min. Order: | 500 pair |
Product Description

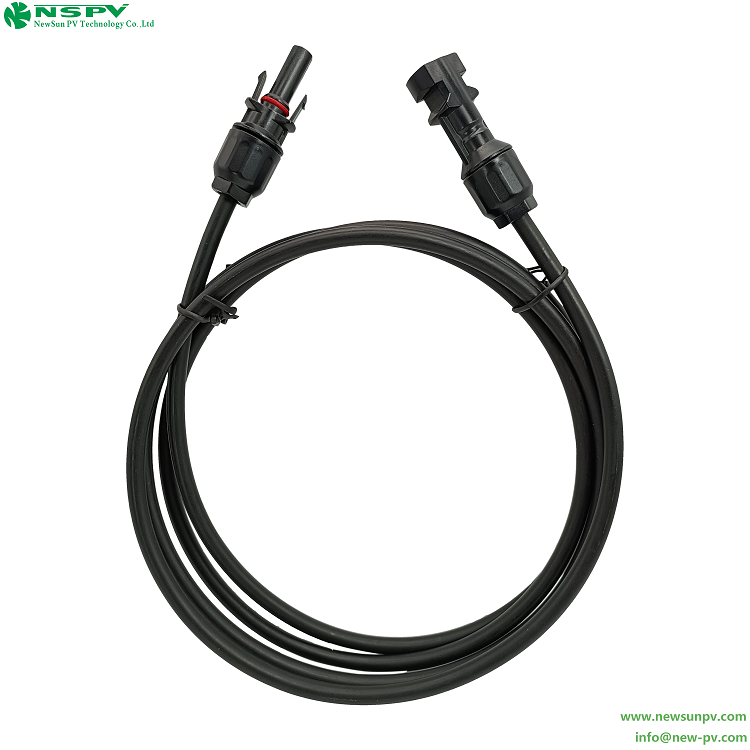

Solar jumper extension cable
Features: TUV certified; 1000VDC, 30A; IP67; Low contact resistance; Suitable for 1.5-6sqmm cable
Cable length, connector are optional while prices are changeable.
Sola Y Harne
| Solar Jumper Extension Cable | ||||
| Insulation material | PPE/PA | |||
| Rated current(Without fuse) | 30A | |||
| Rated voltage | 1000VDC | |||
| Test voltage | 6kV(50Hz,Imin) | |||
| Typical contact resistance | ≤0.25mΩ | |||
| Contact material | Copper,Tin plated | |||
| Degree of protection | IP67 | |||
| Safety degree | II | |||
| Overvoltage category/Pollution degree | CATIII/2 | |||
| Flame class | UL94-V0 | |||
| Ambient temperature range | -40℃…+85℃(IEC) | |||
| Suitable cable cross sections | 1.5-6sqmm/16-10AWG | |||
| Upper limiting temperature | 110℃(IEC) | |||
